D8B Manual • Appendices • page 155
FX Routing

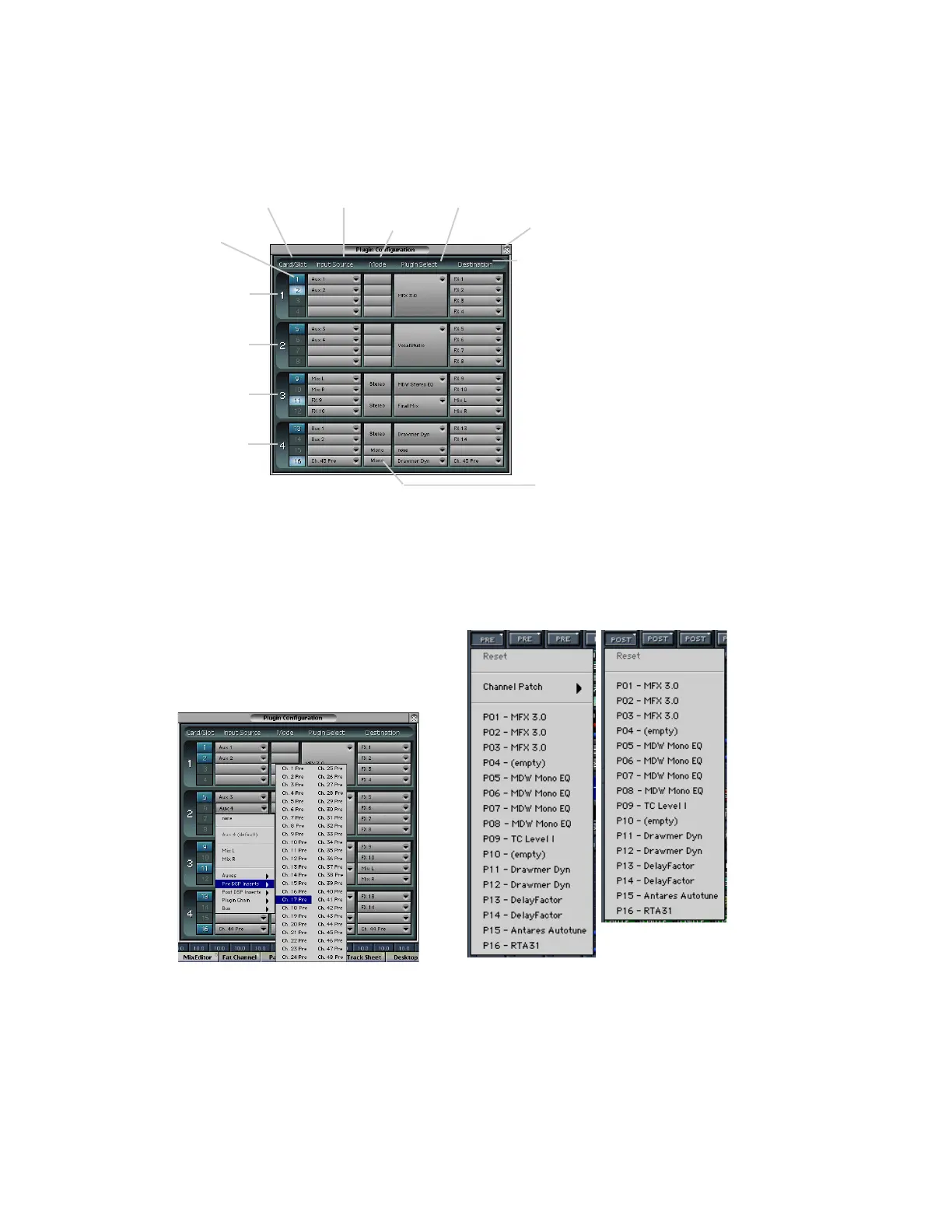

The Plug-in Configuration Window
Card Slot Column
Card B
Card C
Card A
Plug-in
display toggle
Input Source
Assignment
Column
Plug-in
Assignment
Column
Close Window
Destination
Assignment
Column
Inserting a Plug-in into a Channel
A pre- or post-DSP channel insert can also be
used as the input source for a plug-in. When a
channel insert point is selected, the plug-in output
returns to the channel by default. The FX return
path is disconnected, although the plug-in output
is still displayed on the FX return channel meter.
A plug-in channel insert assignment can be
made from the Plugin Configuration window, or
from a pull-down menu from the mixer screen.
Plug-in Configuration Window
Pre-DSP Pull-down
Post-DSP Pull-down
This assignment can also be made from the
control surface and VFD by holding the desired
channel’s SELECT button for two seconds, then
paging over to Plug Pre or Plug Post, selecting
the input source, then selecting the desired plug-
in slot from the follow-on menu.
Card D
Stereo/Mono
Mode Column
Stereo/Mono
Toggle Button
To Next Page
