D8B Manual • Chapter 4 • page 123
Console Settings
1. If you have DIO•8 cards installed, set
the Tape Input and Tape Output
format for each card to ADAT. OPT
•8
cards need no configuration.
2. If the D8B is the clock master, set the
Sample Rate to either 44.1kHz or
48kHz, and set the Apogee Clock to
Internal (in the Digital I/O Setup
window). If it is a clock slave, then set
the Apogee Clock to Word Clock. Set
the Sample Rate to match the Sample
Rate selected on the HDR24/96.
ADAT Optical In
ADAT Optical Out
Digital•8 Bus
OPT•8 Cards
HDR 24/96
OPT•8 Cards
ADAT Optical In
ADAT Optical Out

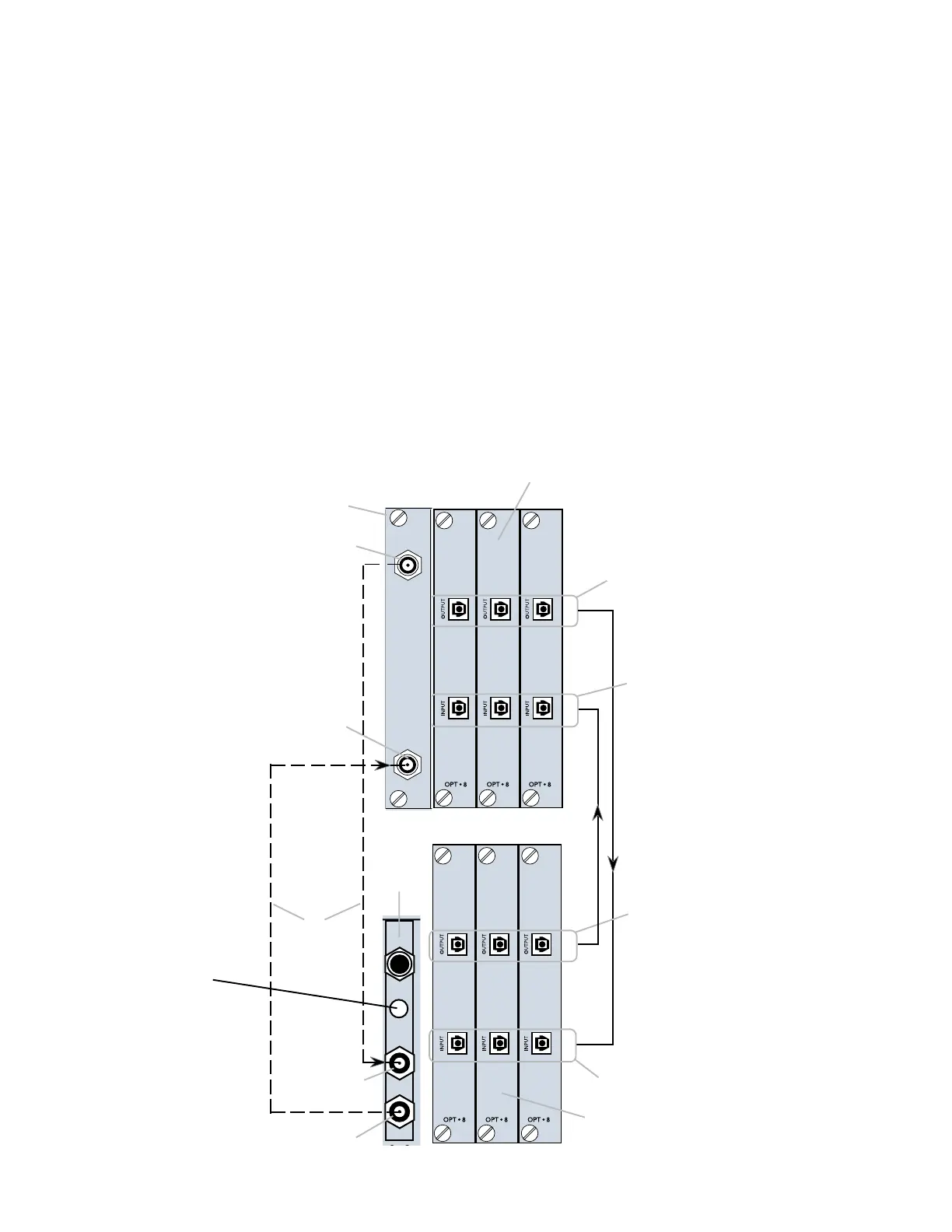

ADAT Optical Hookup with OPT•8
APOGEE
SYNC
APOGEE
Word
Clock
Out
Word
Clock
In
Word
Clock Out
(HDR24/96
as Master)
Word
Clock Out
(D8B as
Master)
Word
Clock In
Word
Clock Out
Apogee
Clock I/O
Card
HDR
Sync
Card
Word
Clock In
Word
Clock Out
Use
one
only
Depress the
Termination
button if the
HDR24/96 is set
to Slave
To Next Page
