Mackie Digital 8Bus D8B v5.1 User Manual

D8B Manual • Chapter 4 • page 127
INPUT
OUTPUT
INPUT
OUTPUT
1 2 3 4 5 6 7 8
LOCATE/PLAY
LRC REMOTE
PUNCH
IN/OUT
DIGITAL
IN OUT
SYNC
IN OUT
INPUT
OUTPUT
INPUT
OUTPUT
1 2 3 4 5 6 7 8
LOCATE/PLAY
LRC REMOTE
PUNCH
IN/OUT
DIGITAL
IN OUT
SYNC
IN OUT
INPUT
OUTPUT
INPUT
OUTPUT
1 2 3 4 5 6 7 8
LOCATE/PLAY
LRC REMOTE
PUNCH
IN/OUT
DIGITAL
IN OUT
SYNC
IN OUT
TALKBACK
PHONES 2
19
13
PUNCH I/O
PHONES 1
20
14
21
15
22
16
2 TRACK IN A
23
17
24
18
MASTER OUT
2 TRACK IN B
STUDIO OUT
2 TRACK IN C
MASTER OUT
LR
L
R
CR
MAIN
BUS OUT 1-8
&
SURROUND OUT
CR
NEAR FIELD
LINE INPUT S
(BAL /UNBAL)
LR
LR
LR
LR
LR
LR
MACKIE DESIGNS
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:
1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND
2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED THAT MAY CAUSE UNDESIRED OPERATION
TAPE 1 - 8 TAPE 9 - 16 TAPE 17 - 24
DIGITAL EFFECTS CARDS DIGITAL I/O SYNC ALT I/O TAPE IN/OUTS
DIGITAL I/O 1
AES/EBU
DIGITAL I/O
2
S/PDIF
OUT
IN
IN
OUT
A B C D
WORD
CLOCK
OUT
APOGEE
CLOCK I/O
WORD
CLOCK
IN
APOGEE
DIGITAL I/O
SYNC
IN OUT
TDIF
ADAT OPTICAL
APOGEE
DIGITAL I/O
SYNC
IN OUT
TDIF
ADAT OPTICAL
APOGEE
DIGITAL I/O
SYNC
IN OUT
TDIF
ADAT OPTICAL
CONSOLE DATA
PARALLEL
VIDEO
SERIAL
KEYBOARD
MOUSE
CONCEIVED, DESIGNED, AND MANUFACTURED BY MACKIE DESIGNS INC • WOODINVILLE • WA • USA • MADE IN USA • FABRIQUE AU USA • COPYRIGHT ©1997 •
THE FOLLOWING ARE TRADEMARKS OR REGISTERED TRADEMARKS OF MACKIE DESIGN INC.: "MACKIE", "DIGITAL SYSTEMS", D8B AND THE "RUNNING MAN" FIGURE •
ADAT XT
MASTER DECK
(TRACKS 1-8)
MIDI IN
MIDI OUT
48 KHz IN
with 50Ω
termination
BRC
REMOTE OUT
TO ADAT
ADAT XT
SLAVE DECK
(TRACKS 9-16)
ADAT XT
SLAVE DECK
(TRACKS 17-24)
DATA CABLE
(to Console)
MIDI IN MIDI OUT
DIGITAL 8•BUS
REMOTE CPU

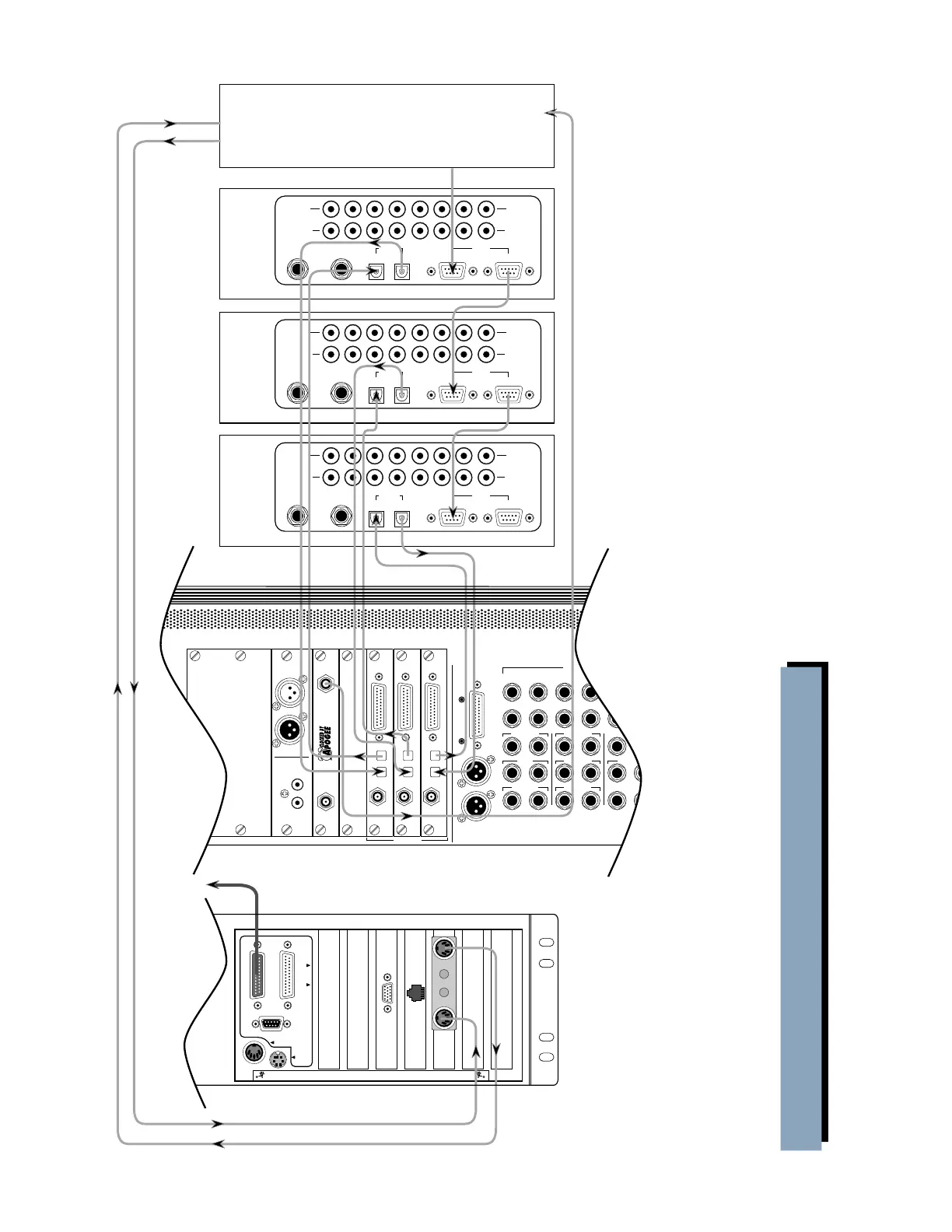

Connecting Alesis ADATs and BRC to the Digital 8•Bus
