D8B Manual • Appendices • page 171
D8B
Button
Number D8B Button Mapped HUI Button
Global
Mode
General HUI Layer
Comments Nuendo Function
35
Automation
Mutes
Auto Enable Mute N
36
Automation Auto
Touch
Auto Mode Touch N
37 Automation Pan Auto Enable Pan N
38
Automation Trim
Levels
Auto Mode Trim N
39 Set Time Equals (=) Y
Won’t work with snap-
shot button pressed
Won’t work with snap-
shot button pressed
Won’t work with snap-
shot button pressed
Won’t work with snap-
shot button pressed
Toggles D8B snap-
shot recall mode.
40 SMPTE View F8/Esc Y
41 D8B Keypad HUI/D8B key pad Y/N
The key pad works
with D8B with snap-
shot button pressed
The Enter key works
with D8B with snap-
shot button pressed
The Store key works
with D8B with snap-
shot button pressed
42 Enter Enter Y/N
43 Loop Loop Y
44 Store In Y
Alt + Store Out Y
45 Locator Decimal (.) Y
Snapshot N/A Y
46 Rewind Rewind Y
Alt + Rewind RTZ
47 Fast Fwd Fast Forward Y
Alt + Fast Fwd End
48 Stop Stop Y
49 Play Play Y
50 Record Record Y
51 Jog & Shuttle Jog/Shuttle Select Y
52 Jog Wheel Jog Wheel Y
Other HUI Mode/HUI Layer Notes:
Channel HUI VFD Mode: HUI Layer VFD displays eight channel names in bottom line of VFD. First two VFD select buttons mirror the Channel L and Channel R functions. The name of the selected
channel/function is displayed in the center of the top VFD line. The Online status is also displayed at the end of this line.
Normal HUI VFD Mode: HUI Layer VFD displays the normal HUI VFD screen exactly as a real HUI would. The contents of the VFD depend on the DAW in use and other settings. See notes on the VFD above.
Global Mode: Global functions are always active when HUI Mode is on, no matter what D8B bank is active.
Non-global functions are active only when HUI Mode is On and the D8B is displaying the HUI Layer.
N/A
N/A
N/A
N/A
N/A
N/A
Type Nuendo Locate point number on Keypad. Press enter to store the number as a new locate point.
Press Locator to recall the numbered located point.
Press to set L Locator to current position
Toggle Nuendo Loop Playback
N/A
N/A
Type Nuendo Locate point number on Keypad. Press Locator to recall the numbered located point.
Press to enter D8B snapshot mode. Type a snapshot number and press Enter to recall a snapshot.
Press Store, type a number, and press Enter to store a snapshot. Exit snapshot mode by pressing Snapshot or Enter.
Rewind Nuendo transport
Return Nuendo locator to beginning of Session
Fast Forward Nuendo Transport
N/A
Stop Nuendo playback
Start Nuendo playback
Start Recording in Nuendo. Press during playback to punch into record; press again to punch out.
N/A
Control playback cursor position with wheel. Rewind or Fast Forward
53 Cut/Zero Set Cut N
Cut selection/event/part
54 Copy Copy N
Copy selection/event/part
55 Paste Paste N
Paste contents of clipboard
56 Undo Undo N
Press to undo previous command in Nuendo edit history (supports multiple undos)

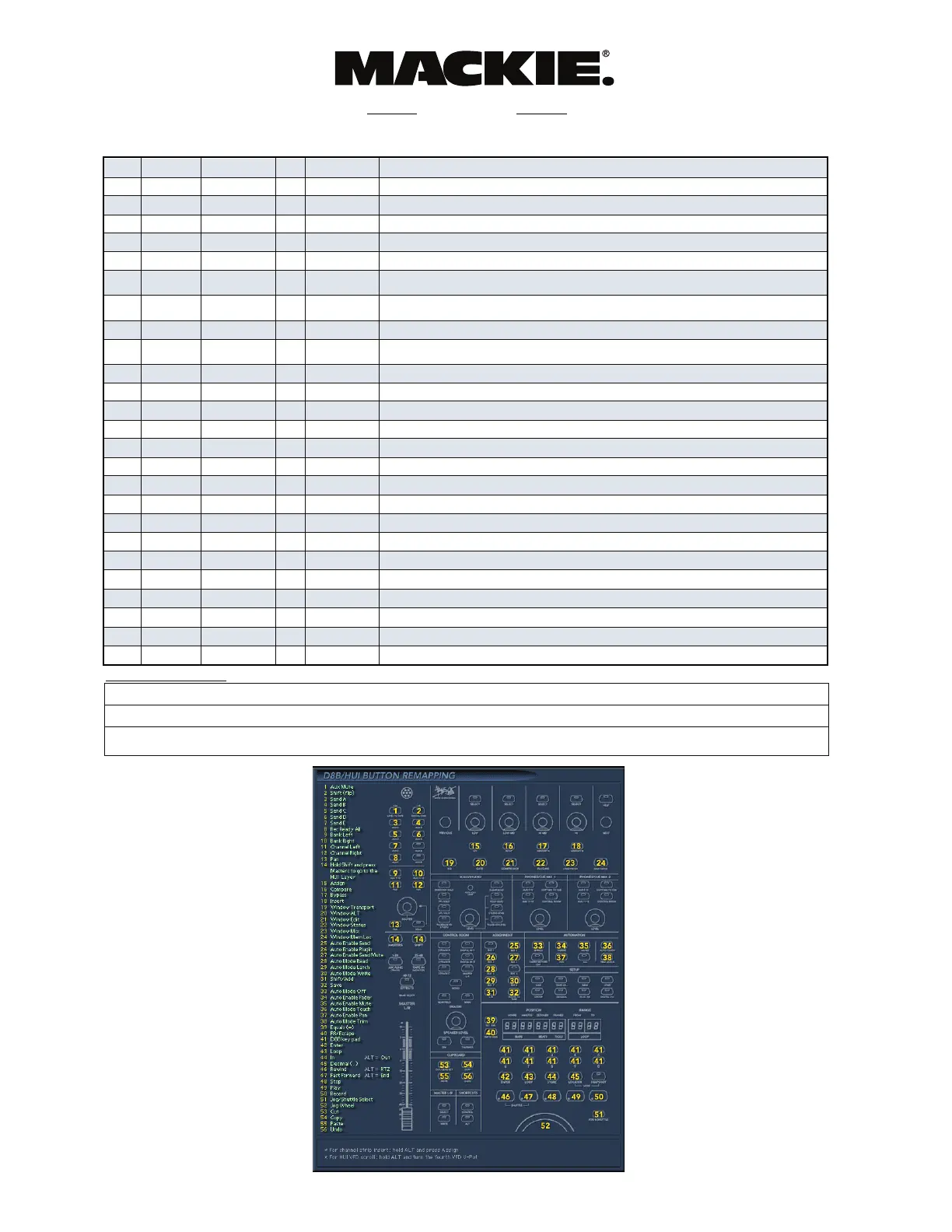

D8B v5.1 B445 HUI Layer Control Mapping
For Nuendo
