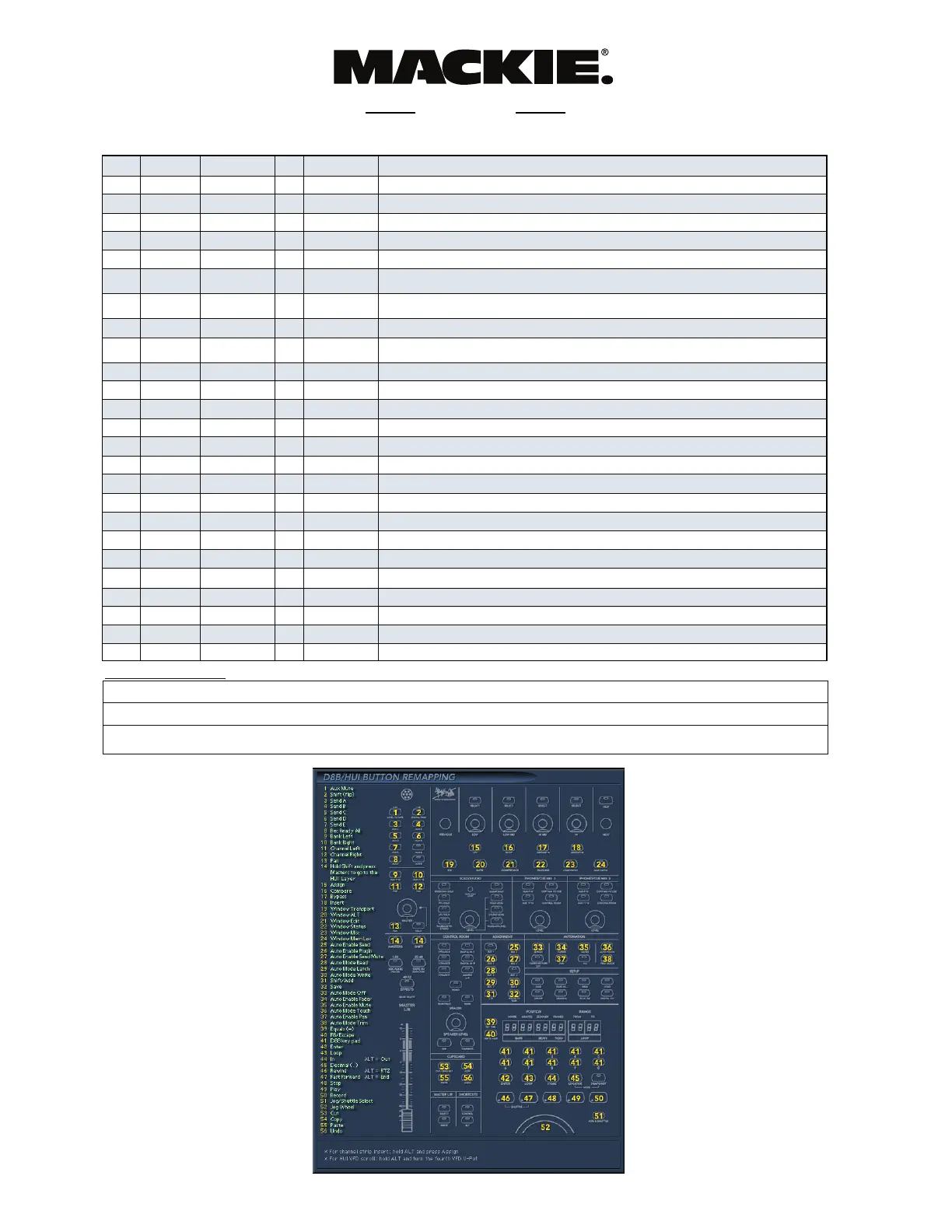

D8B Manual • Appendices • page 179

D8B

Button

Number D8B Button Mapped HUI Button

Global

Mode

General HUI Layer

Comments Logic 6 Function

Automation

Mutes

Auto Enable Mute N

Toggles automation playback and recording of mute

Automation Auto

Touch

Auto Mode Touch N

Hold and press a channel Write (HUI Auto) button to put the Logic channel into Auto Touch Mode

37 Automation Pan Auto Enable Pan N

Toggles automation playback and recording of pan

Automation Trim

Levels

Auto Mode Trim N

N/A

39 Set Time Equals (=) Y

Won’t work with snap-

shot button pressed

Won’t work with snap-

shot button pressed

Won’t work with snap-

shot button pressed

Won’t work with snap-

shot button pressed

Toggles D8B snap-

shot recall mode.

Creates a marker at the current song position

Corresponds to Mac numeric keyboard. Recalls Markers 1-9.

40 SMPTE View F8/Esc Y

Cancel open dialog windows

41 D8B Keypad HUI/D8B key pad Y/N

The key pad works

with D8B with snap-

shot button pressed

The Enter key works

with D8B with snap-

shot button pressed

The Store key works

with D8B with snap-

shot button pressed

42 Enter Enter Y/N

OK any on-screen dialogs. Enters folders on selected tracks.

43 Loop Loop Y

Toggles cycle mode

44 Store In Y

Sets Drop In locator

Alt + Store Out Y

Sets Drop Out locator

45 Locator Decimal (.) Y

Enters Go To Marker mode

Snapshot N/A Y

Press to enter D8B snapshot mode. Type a snapshot number and press Enter to recall a snapshot. Press Store, type a number,

and press Enter to store a snapshot. Exit snapshot mode by pressing Snapshot or Enter.

46 Rewind Rewind Y Shuffles backward

Goes to the left locator

Alt + Rewind RTZ

47 Fast Fwd Fast Forward Y Shuffles forward

Goes to the right locator

Alt + Fast Fwd End

48 Stop Stop Y

Stop Logic playback

49 Play Play Y

Start Logic playback

50 Record Record Y

Start recording in Logic

51 Jog & Shuttle Jog/Shuttle Select Y

Press once to go into jog, press again to go into shuttle, and press again to go back to normal.

52 Jog Wheel Jog Wheel Y

Normal: move Song Position Locator by one bar; Scrub: scrub; Shuffle: shuffle.

53 Cut/Zero Set Cut N

Cuts the selection

54 Copy Copy N

Copies the selection

55 Paste Paste N

Paste contents of clipboard

56 Undo Undo N

Undoes last command in Logic

Other HUI Mode/HUI Layer Notes:

Channel HUI VFD Mode: HUI Layer VFD displays eight channel names in bottom line of VFD. First two VFD select buttons mirror the Channel L and Channel R functions. The name of the selected

channel/function is displayed in the center of the top VFD line. The Online status is also displayed at the end of this line.

Normal HUI VFD Mode: HUI Layer VFD displays the normal HUI VFD screen exactly as a real HUI would. The contents of the VFD depend on the DAW in use and other settings. See notes on the VFD above.

Global Mode: Global functions are always active when HUI Mode is on, no matter what D8B bank is active.

Non-global functions are active only when HUI Mode is On and the D8B is displaying the HUI Layer.

D8B v5.1 B445 HUI Layer Control Mapping

For Logic 6
