© 2015 MacroAir Technologies Toll Free: 866 668 3247 Fax: 909 890 2313 www.macroairfans.com 9
Rev. Date 090415

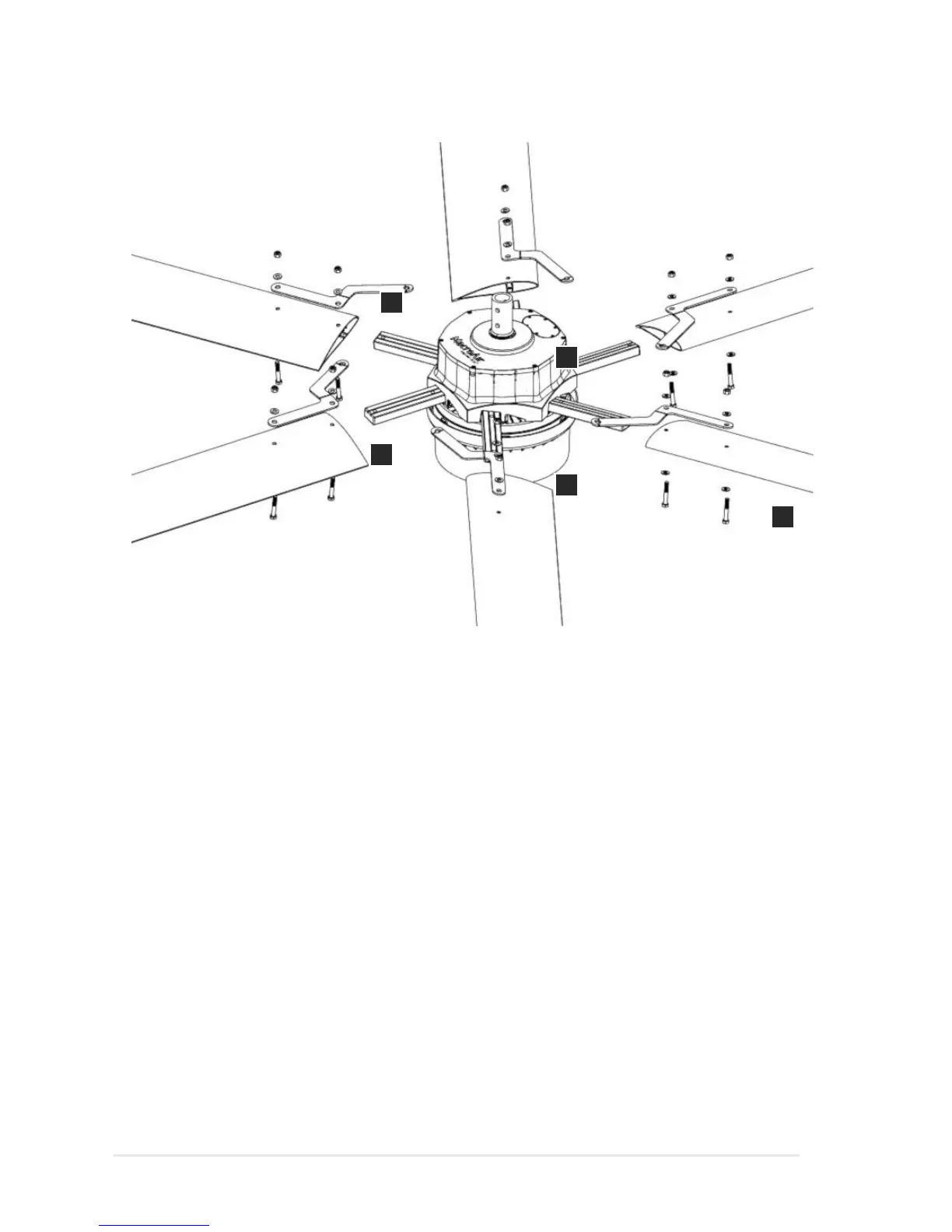

Fan Components
A
C
E
B
D
A - Airfoil Retainer Link
B - D-Drive Motor
C - Airfoil Strut
D - AirBrain Processor, Heat Sink and Cover
E - XL Airfoil
Note: Model numbers ending with an “H” are high voltage. Model numbers ending with an “L” are
low voltage. Refer to pages 31 and 32 for applicable voltages.
Tools Required for Provided Hardware:
Mounting:
9/16” Socket
9/16” Combo Wrench
3/4” Socket
3/4” Combo Wrench
Drop Length:
9/16” Socket
5/16” Allen Wrench
Cover:
5/32” Allen Wrench
Airfoils:
1/2” Socket
1/2” Combo Wrench
