1.2B I-Beam Mounting
Components:
A - 1/2”-13 Grade 5 Bolts (4)
B - 1/2” Flat Washers (8)
C - 1/2” Nylon Locking Nuts (4)
D - Universal Mount
E - I-beam
F - Clamps and Shims
This method is used to install the Universal Mount to an I-beam.
1.2.1B: Assemble the mount with one shim and clamp and hand tighten the hardware. Hook the
clamp on one side of the I-beam or purlin and tighten hardware until the mount is snug but can
still be moved.
1.2.2B: Assemble the other shim and clamp on the other side and center the mount under the
I-beam or purlin. Ensure the clamps have maximum engagement on both sides and torque the
hardware to 75 ft-lbs.

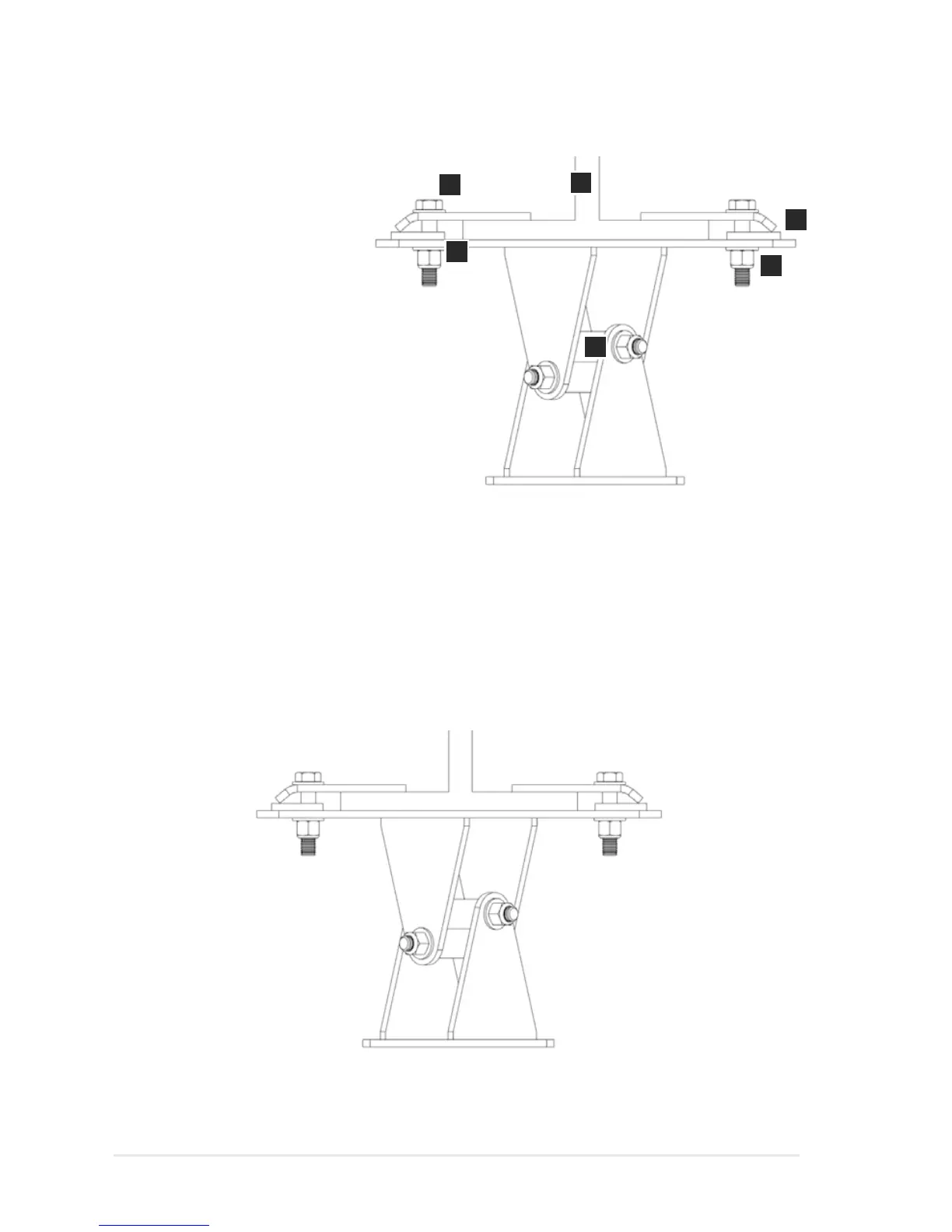

Final Results:
A
B
C
D
E
F
NOTE: Mounting to Z-purlins requires span mounting.
