Rev. Date 090415

Components:

A - Remote Switchbox

B - Analog Terminal Blocks

3.2.1: Cut the ends off of the 100ft shielded CAT5e cable and wire as shown in the schematic

below. Do not daisy chain the analog remote wiring. Each fan must have its own analog control

point.

Note: Fans must be ordered for analog control as they require network conﬁguration to enable

analog terminals.

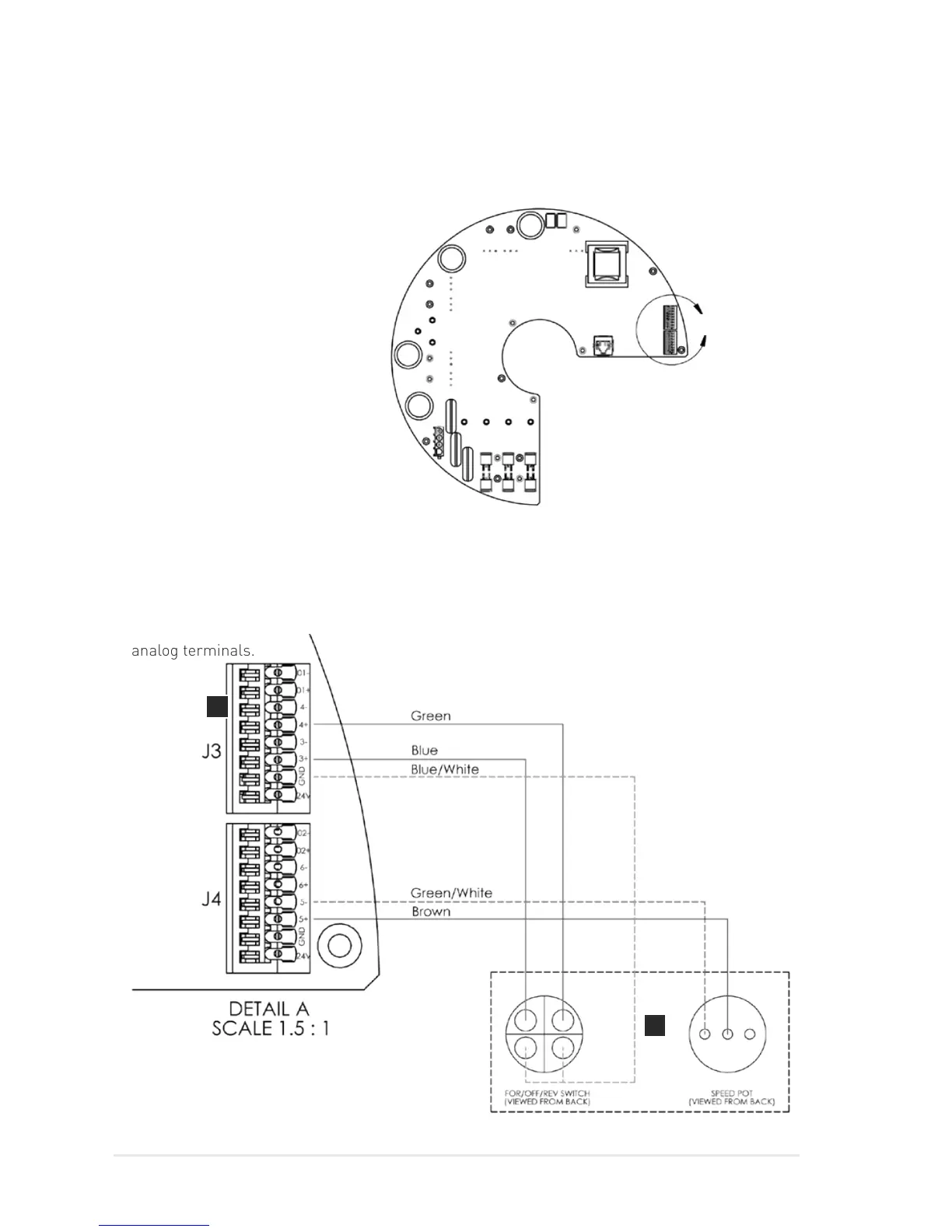

3.2 Analog Control Wiring Schematic

DETAIL A
