MacroAir Technologies AirVolution 550 - Emergency Disconnect Schematic

© 2015 MacroAir Technologies Toll Free: 866 668 3247 Fax: 909 890 2313 www.macroairfans.com 38
Rev. Date 090415
Components:
A - Remote Harness (found in single fan remote enclosure)
B - Terminal Block Connector

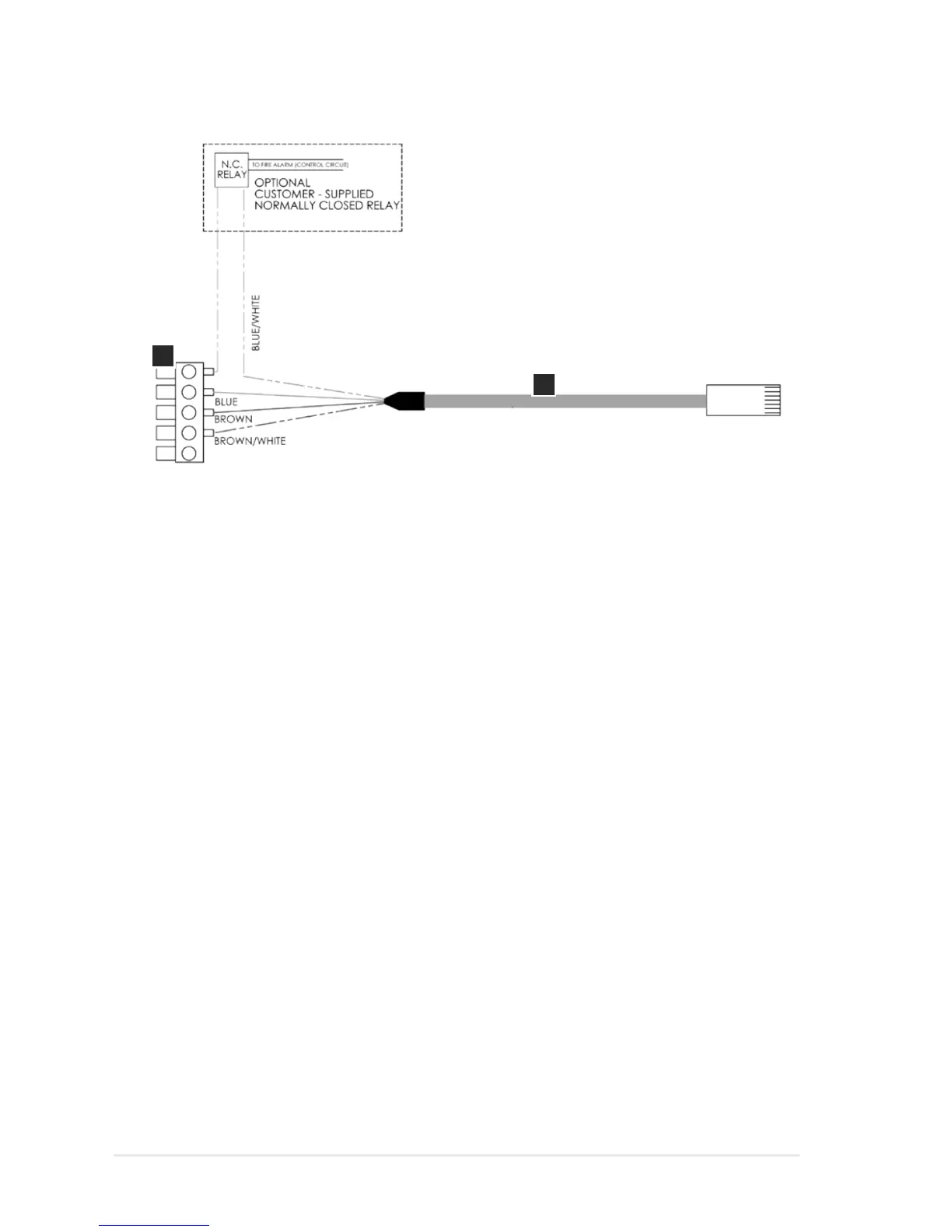

3.6.1: Use the schematic above to connect the fan(s) to an emergency stop (i.e. fire alarm system).
A
B
3.6 Emergency Disconnect Schematic
