© 2015 MacroAir Technologies Toll Free: 866 668 3247 Fax: 909 890 2313 www.macroairfans.com 16
Rev. Date 090415

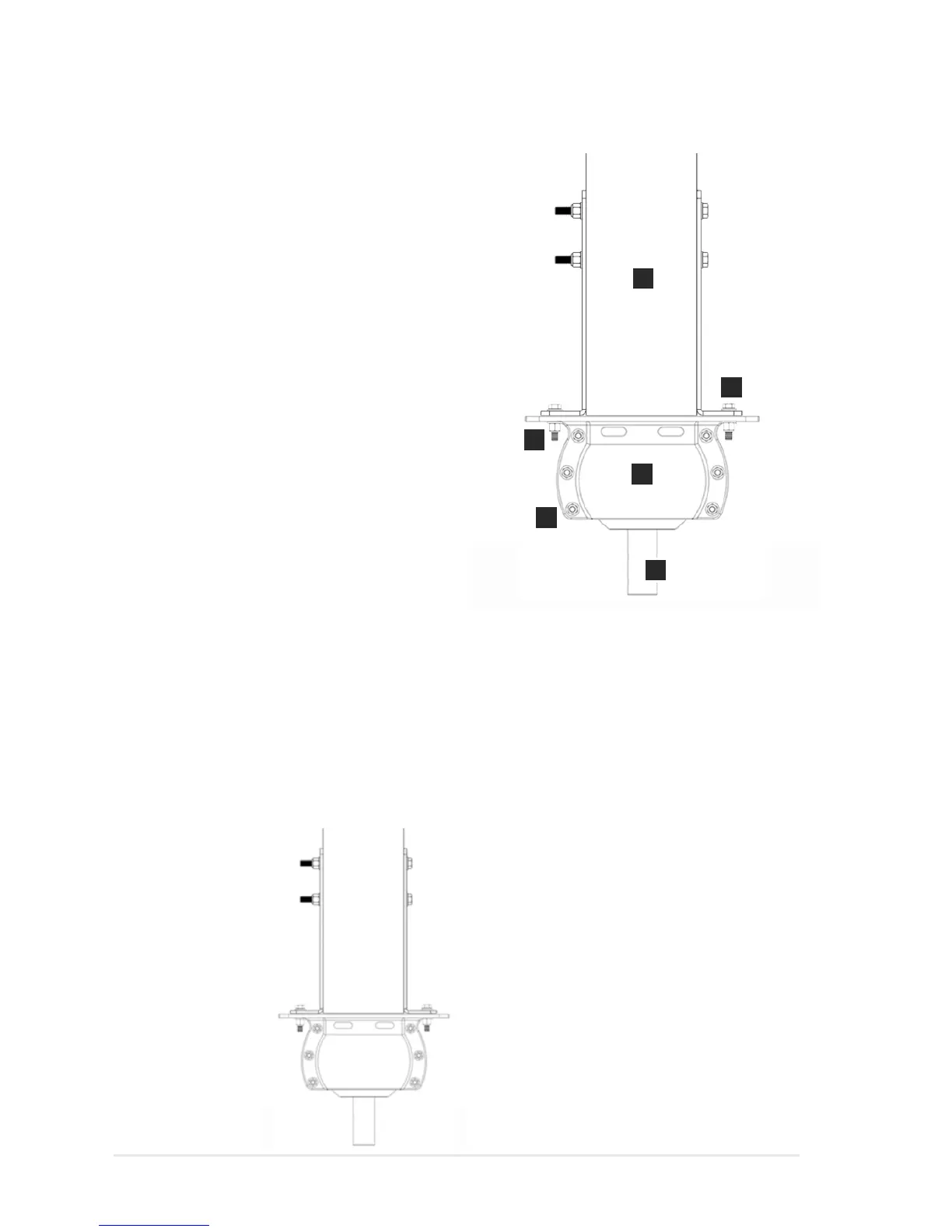

Components:
A - 1/2”-13 Grade 5 Bolts (4)
B - 1/2” Nylon Locking Nuts (4)
C - Glulam
D - Rapid Mount Industrial
E - 3/8’’ Locking Hardware (Locking Hardware is left loose from factory. Do not remove prior to
installation.)
F - Drop Length Attachment Point
1.3.5A: Place the Rapid Mount Industrial against the bottom of the brackets and use the provided
bolt kit to assemble loosely.
1.3.6A: Once the Rapid Mount Industrial is attached, tighten the Glulam brackets and ensure they
are flush against the beam from top to bottom.
1.3.5A: Tighten the locking hardware (E) on the mount to 30 ft-lbs once the fan is level.
Final Results:
A
B
C
D
1.3A Glulam/Wood Beam Mounting (2 of 2)
E
F
To Next Page
