Components:
A - 1/2”-13 Grade 5 Bolts (4)
B - 1/2” Nylon Locking Nuts (4)
C - Glulam
D - Universal Mount

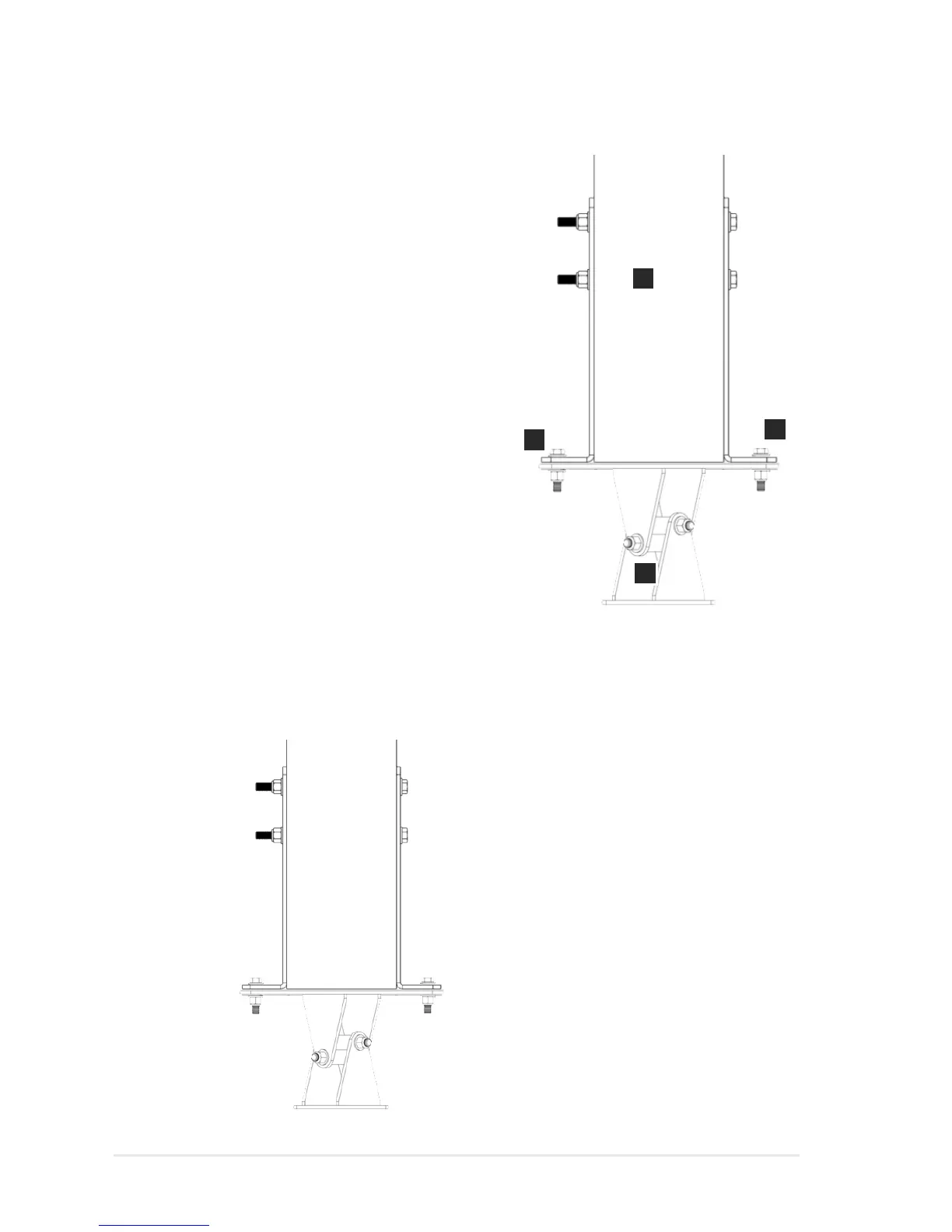

1.3.5B: Place the Universal Mount against the bottom of the brackets and use the provided bolt
kit to assemble loosely.
1.3.6B: Once the Universal Mount is attached, tighten the Glulam brackets and ensure they are
flush against the beam from top to bottom.
Final Results:
A
B
C
D
1.3B Glulam/Wood Beam Mounting (2 of 2)
To Next Page
