4.1 Guy Wire Installation (2 of 2)

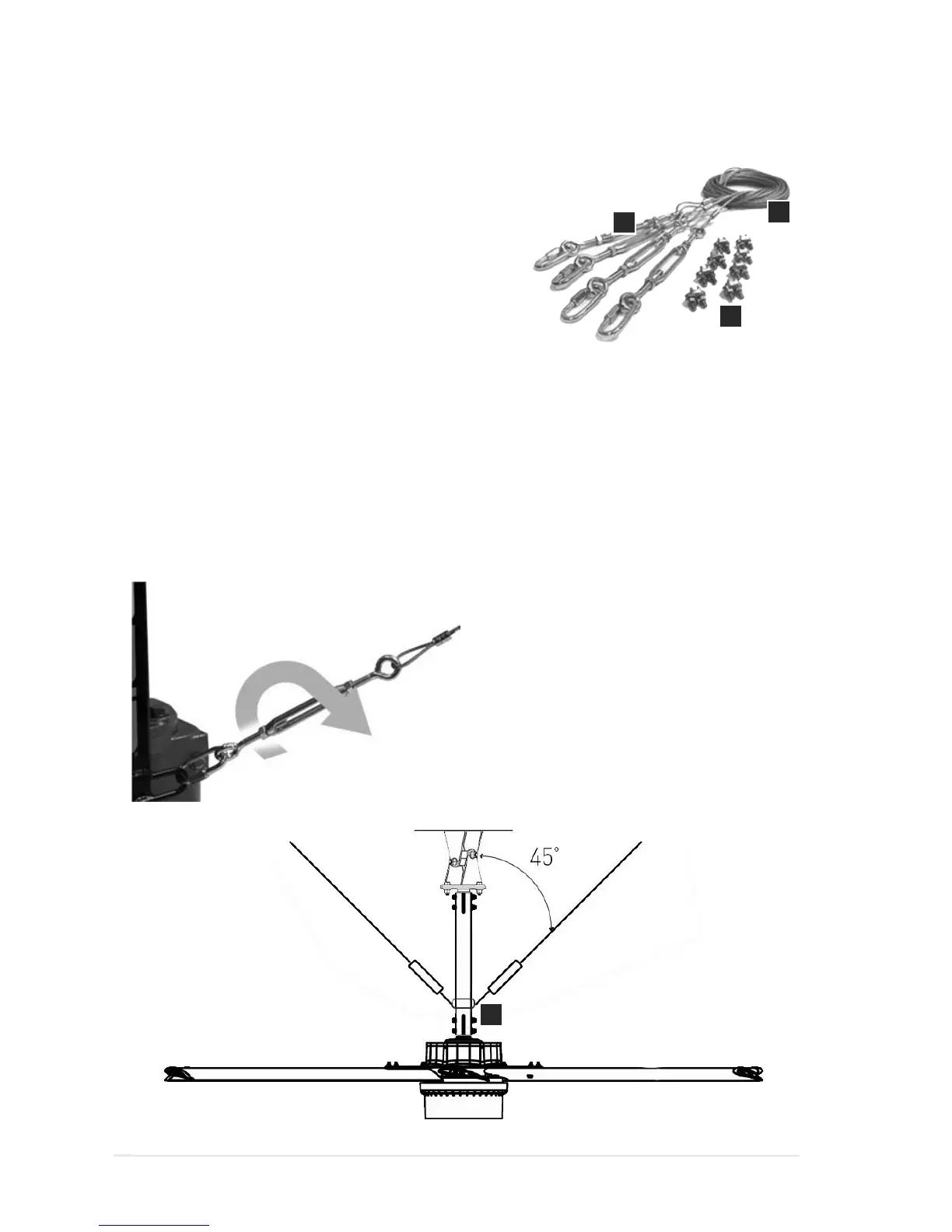

Components:
A - Guy Wires
B - Cable Clamps
C - Turnbuckles
D - Guy Wire Attachment Points (2)
4.1.4: With the aid of a level placed against the drop length, tighten the turnbuckles by hand in a
crisscross pattern while periodically checking to ensure that the fan is level.
4.1.5: Tighten the turnbuckles until the fan unit is stable in the level position. Make sure to not
overtighten the turnbuckles.
4.1.6: Once all of the Guy wires are snug and the fan unit is stable and level, tighten the jam nuts
on the turnbuckles.
NOTE: Do not use tools to tighten the turnbuckles; only use tools to tighten the jam nuts.
Final Results:
A
B
C
D
