Connection Method

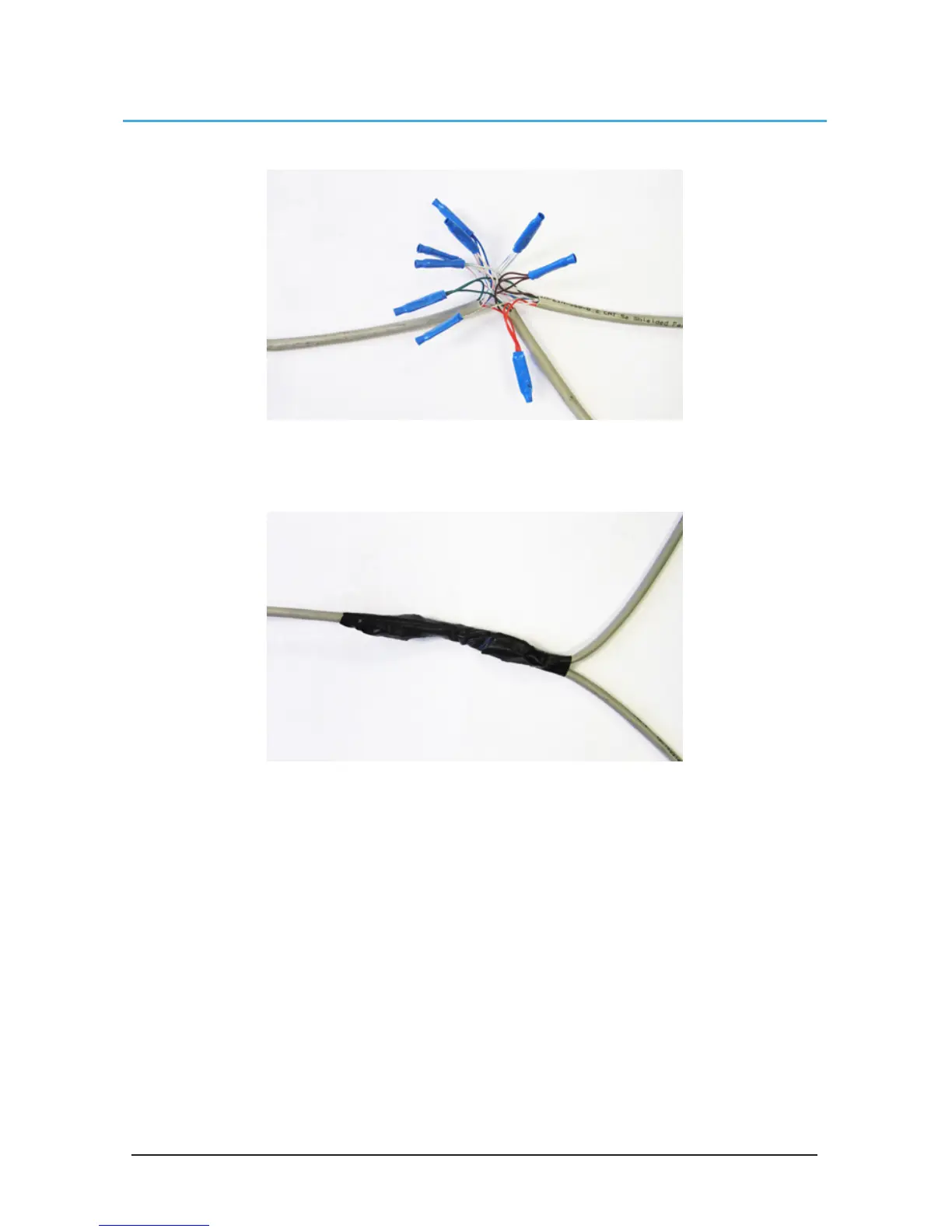

7. Repeat steps 3-5 for all the wires.
8. Once all the wires are crimped, carefully twist the wires up. Then fold them back and tape them
up with electrical tape to clean up your wiring.
9. Make sure to tape or zip tie all 3 CAT5 lines to the structure to support the 3 way splice and
provide strain relief.
