Macurco CX-xx Manual (Rev-1.0) Eng
REV – 1.0 [34-2900-0512-0 ] 12 | Page

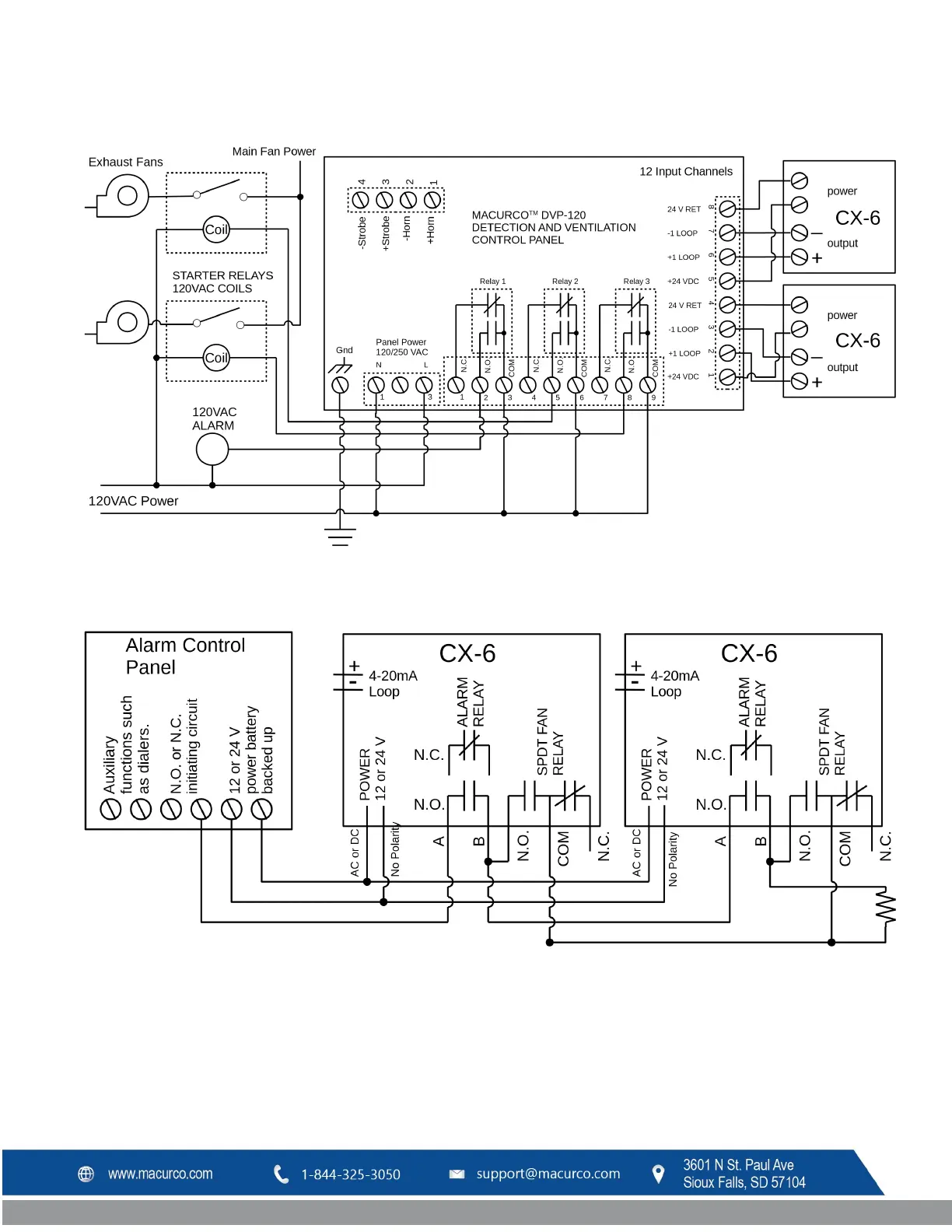

Figure 3–7 6-Series DVP-120 Control Panel
Figure 3–8 6-Series Alternate Alarm Panel
In this application (above) the Fan or primary relay is used as a low-level alarm relay. The Alarm or secondary relay is
used as a supervisory relay when utilized in the normally closed configuration. The CX-6 monitors all critical
functions of the unit through software diagnostics that continually test and verify its operations. If a problem is
