Magellan Meridian Series User Manual

30 Magellan Meridian GPS Receiver
Reference
USING VERTICAL PROFILE — Only Track History is available for this
function if MapSend Topo for the United States map data is not
uploaded. (Path Check is shown as an available function but will not
display the vertical profile, however it can be used to graphically create a
route. See the information on Path Check for more details.) If a
topographic map has been uploaded, you have the additional options of
selecting Path Check, Route or Highlighted Road.
Vertical Profile displays the elevation as a graphical display for the option
you select.

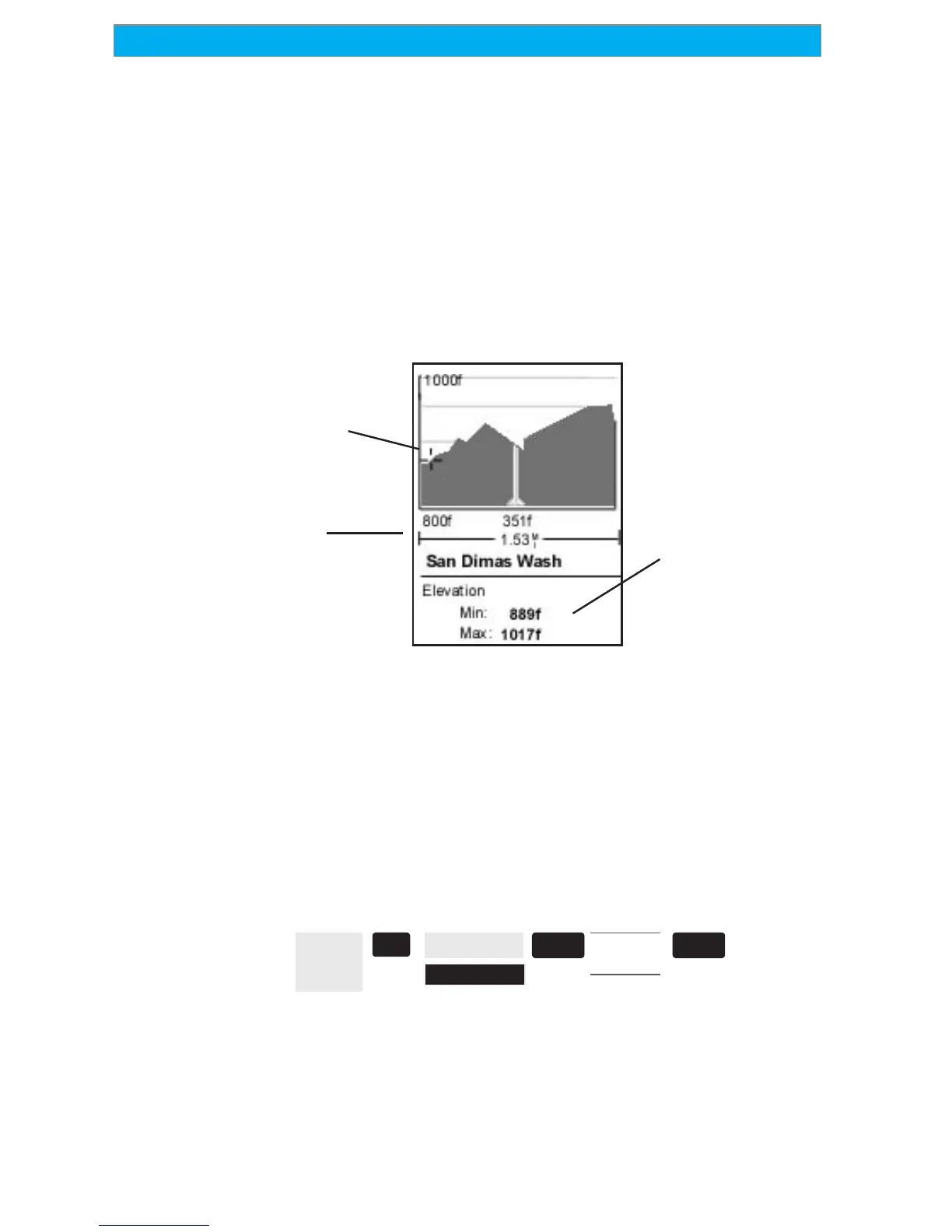

While viewing the vertical profile screen, you can use the left and right
arrows to move the profile accordingly. The vertical dashed line in the
middle of the profile plot provides the elevation for that point on the
profile.
Selecting Vertical Profile — Note, not all options for Vertical Profile are
available at all times. For example, if you have a topographical map
loaded but the cursor or present position is not on a road, the option
“Highlighted road” will not be displayed.
From
Any
Screen
MENU
Highlight
Vert. Profile
ENTER ENTER
Select
option
Track History Description — This option displays the vertical profile
of the track that is stored in the Meridian. If you have cleared your
track, either with the Clear Track option or clearing memory, Track
History cannot be accessed.
Cursor
Position
Distance from
left side to right
side of profile
Minimum and
maximum
elevations of
displayed profile

Magellan Meridian Series Specifications

General

Display Type	LCD
Screen Size	2.2 inches
Waypoints	500
Routes	20
Track Log	2000 points
Battery Type	2 AA batteries
Type	Handheld GPS
Brand	Magellan
Series	Meridian
Channels	12
Memory	8 MB
Waterproof	Yes (IPX7)
