Magellan Meridian Series User Manual

Magellan Meridian GPS Receiver 75
Appendix

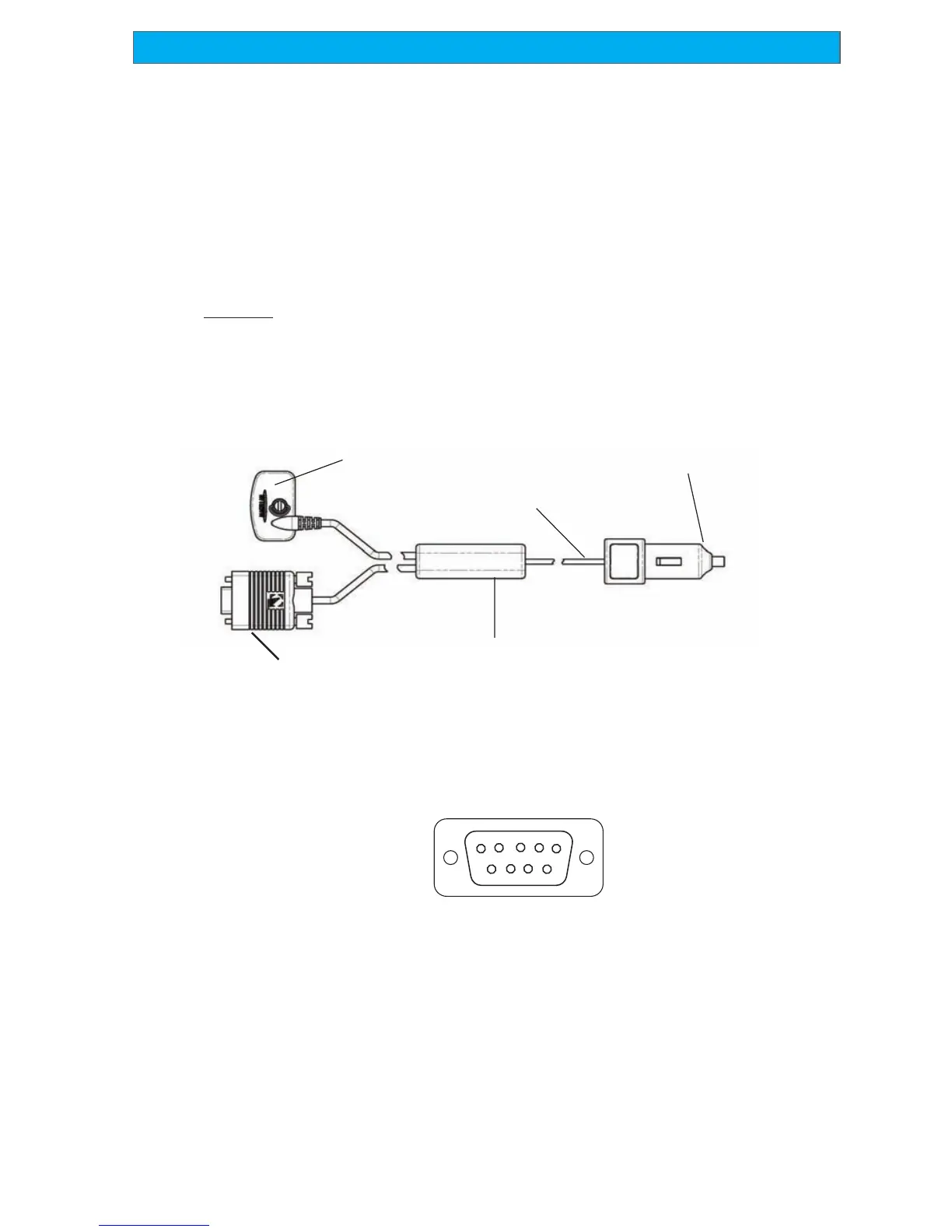

Connecting to an External Power Source
If using the cable that comes with the cigarette lighter adapter, simply connect it
to the cigarette lighter outlet. If you wish to make a permanent mount to a
power supply, cut the cable between the power supply box and the cigarette
lighter adapter. Attach the red (+) and black (-) wires to your external power
source. The input voltage range for external power is 9-16 VDC.
Caution: Do not bypass the power supply box or you will damage your unit
and void the warranty.
Power Supply Box
Cut Here
Cigarette Lighter Adapter
Power Plug
Connecting to a Data Source
Data Connection Pinout (PC and Data cables only)
This is the pinout looking into the 9-pin female connector
Pin 2: Data Out
Pin 3: Data In
Pin 5: Ground
Cable Wiring Color Code
Power Red: Power +
Black: GND
Data (Power/Data, PC cable & Data cable only)
Yellow: Data In
Orange: Data Out
Black: GND
9
5
1
6
9-pin Connector

Magellan Meridian Series Specifications

General

Display Type	LCD
Screen Size	2.2 inches
Waypoints	500
Routes	20
Track Log	2000 points
Battery Type	2 AA batteries
Type	Handheld GPS
Brand	Magellan
Series	Meridian
Channels	12
Memory	8 MB
Waterproof	Yes (IPX7)
