Installing the Encoder in a 1U Rack
Ultra Encode AIO provides substantial performance in a space-saving design. These encoders are easy to deploy and offer flexibility to expand later on.

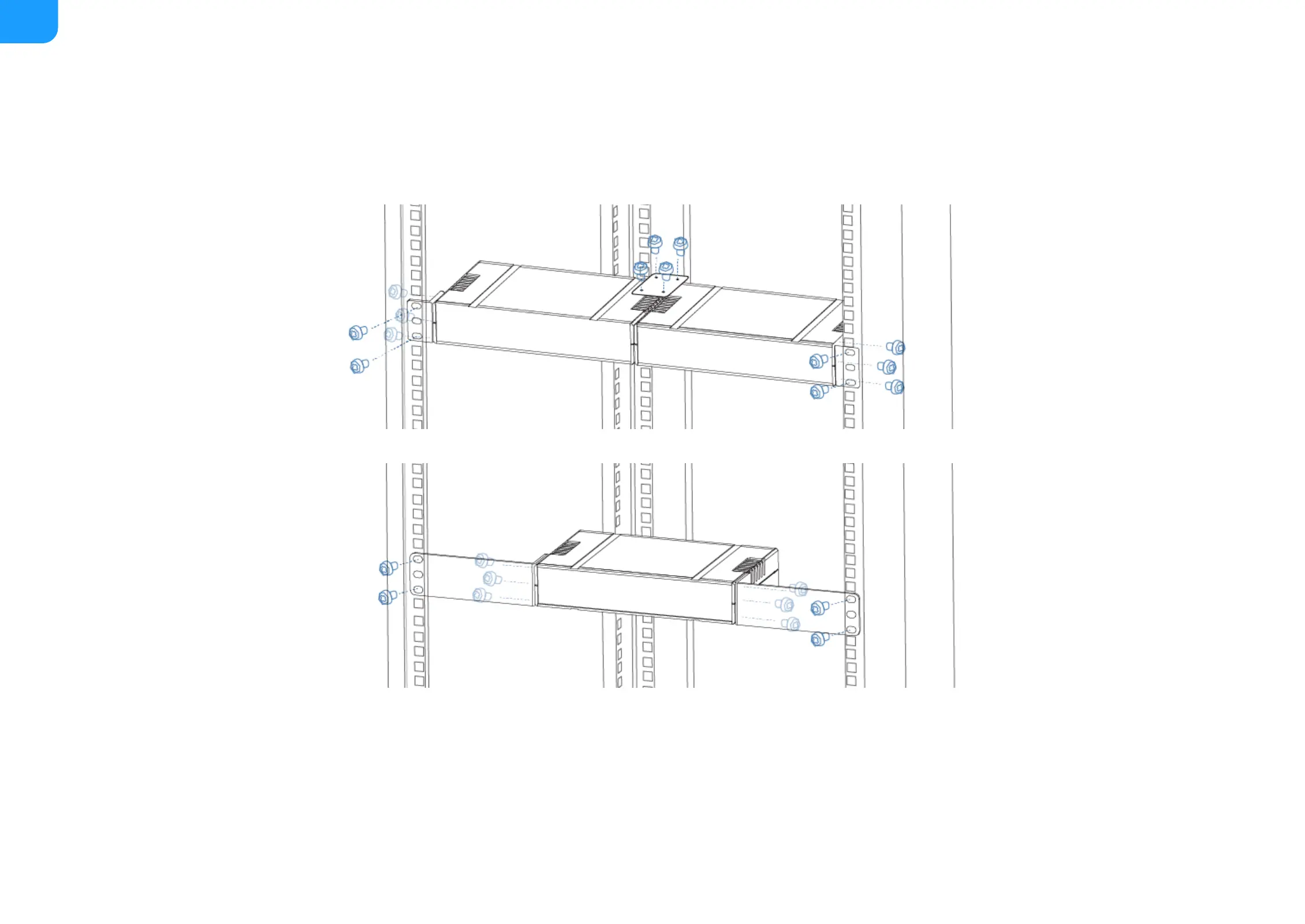

You can install two devices side by side in a 1U rack with provided short rack ears and retainer plate, see Fig1, or one device with provided long rack ears, see Fig2.
Fig1 Two units united installation with short rack ears
Fig2 One unit installation with long rack ears
