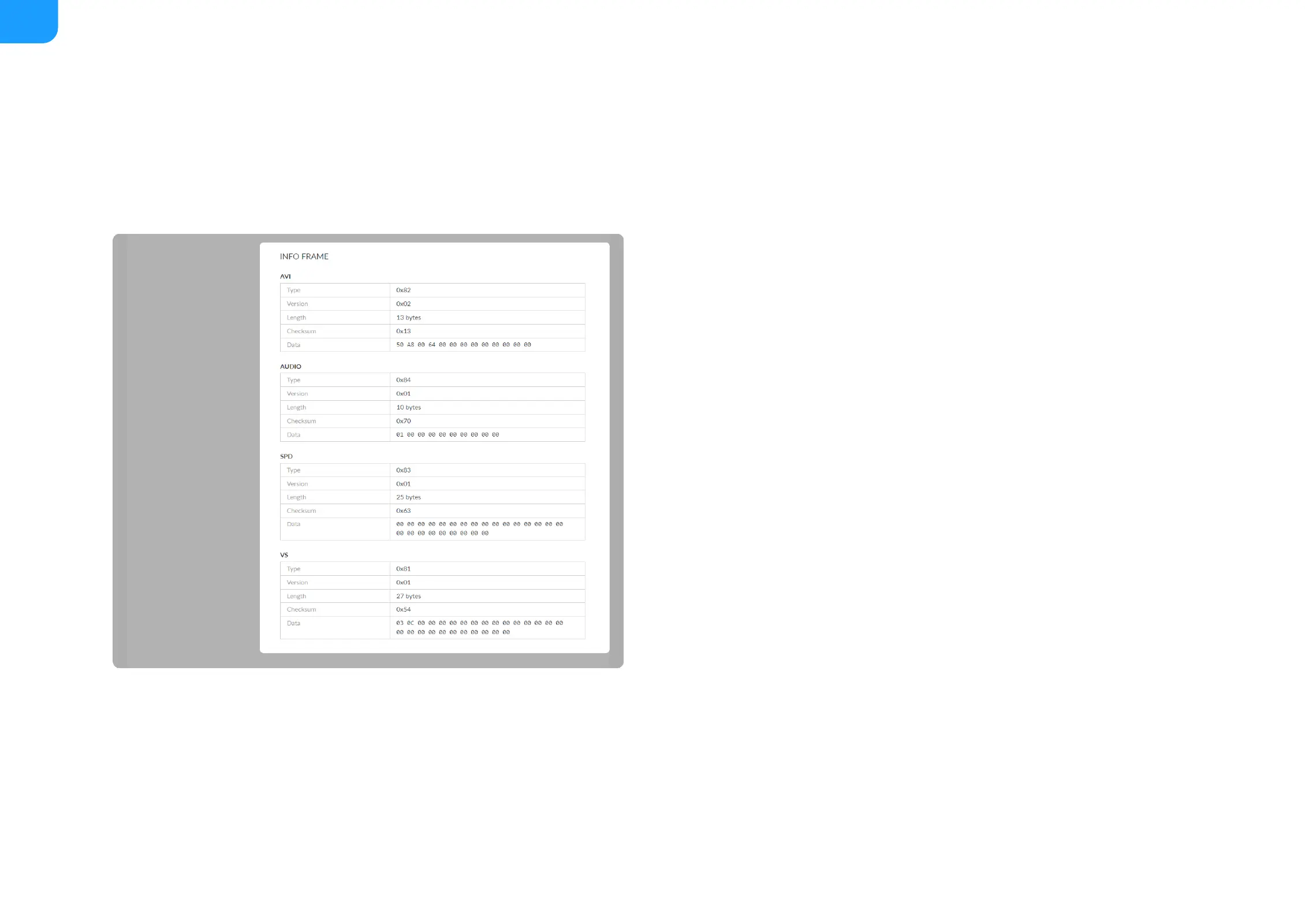

Check HDMI INFO FRAME
The info frames vary from different signal sources, AVI/AUDIO/SPD/VS may be
included.
Timing-V front porch shows the size of the vertical Front Porch in pixels.
■
Timing-V sync width shows the width of the vertical Sync Pulse in pixels.
■
Timing-V back porch shows the size of the vertical Back Porch in pixels.
■
Type shows the packet type.
■
Version shows the packet Version.
■
Length shows the length of the AVI InfoFrame payload.
■
Checksum shows the packet checksum.
■
Data shows the InfoFrame payload.
■
