MAGGI TECHNOLOGY - BORING SYSTEM 23 - REV00 Pag. 7

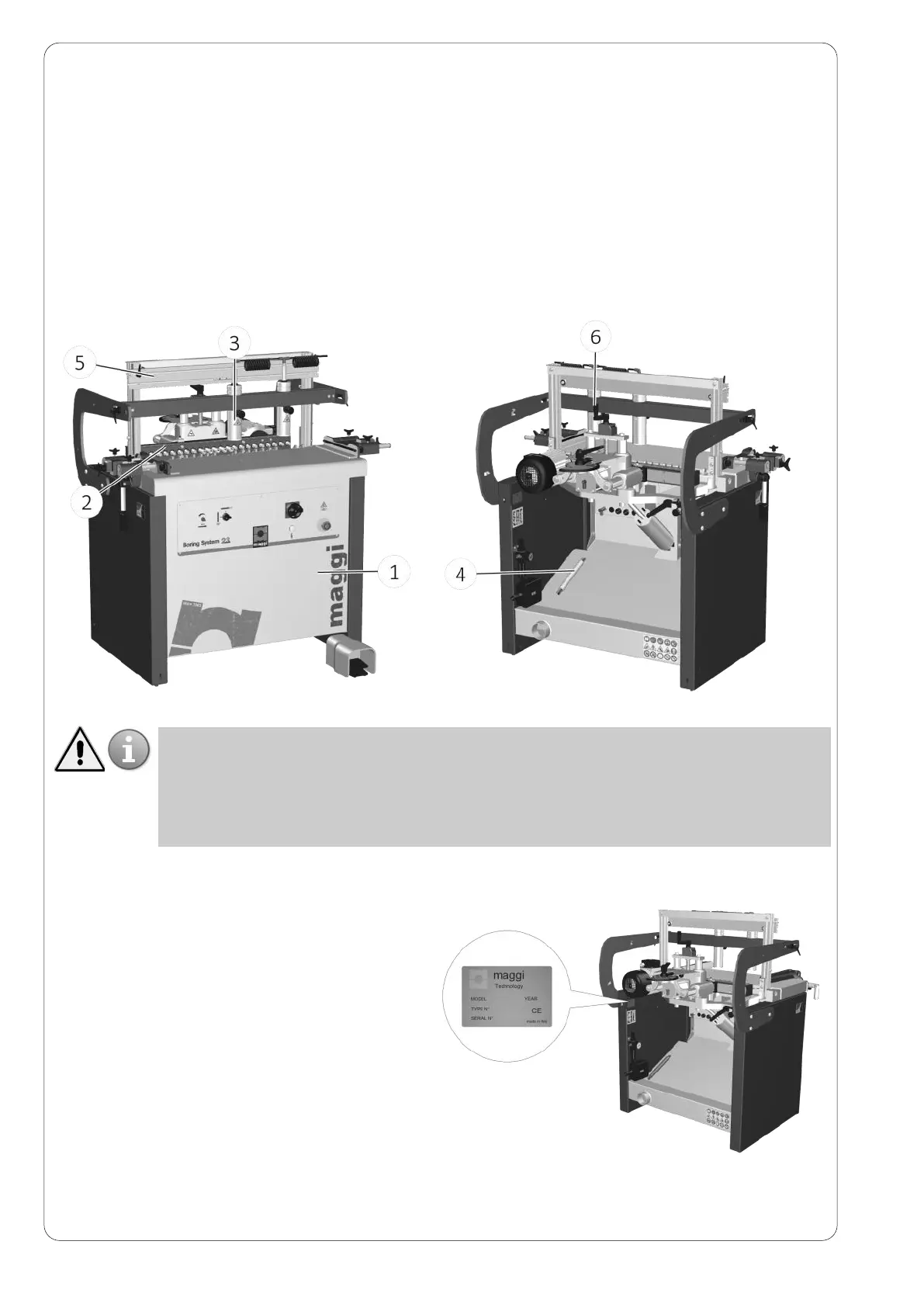

2. MACHINE DESCRIPTION
The machine is a manually drived+n boring machine, it can make holes at fixed distance of 32mm one to
each other. The machine consists of:
1. a steel frame structure
2. one head group equipped with its trasmission system
3. clamp group for vertical blocking of the work piece
4. pneumatic system for head positioning and head feed
5. reference stops to obtain the same drilling distance from vertical to horizontal position
6. leaflet for positioning the spindle height, a mechanical counter and the “Spiral System” device to regulate
the hole depth from 0 mm to 85 mm
IT IS FORBIDDEN TO GET ON THE MACHINE OR ON A PART OF IT
IT IS NOT RECOMMENDED TO PLACE TOOLS OF ANY KIND AGAINST OR OVER THE MACHINE FOR
ANY REASON DURING THE PHASES OF INSTALLATION, USE, MAINTENANCE OF THE MACHINE TO
NOT DAMAGE IT
2.1 MACHINE IDENTIFICATION
The data impressed in the plate placed on the machine
(see figure) identify the machine itself.
When you eventually order spare parts or ask for any
suggestions for use or maintenance, you have always
to transmit the model type and identification number
contained in the plate.
It is absolutely forbidden to remove the plate or modify
the data it contains.
The following identification plate is placed on the
boring system machine described into this manual.
front view rear view
