6. OPERATING INSTRUCTIONS
Check that the work area around the machine is in good order and free of residues of processed material, such
as sawdust or pieces of wood.
Check that all covers and safety measures are in place, in order and ready for the work to be performed.

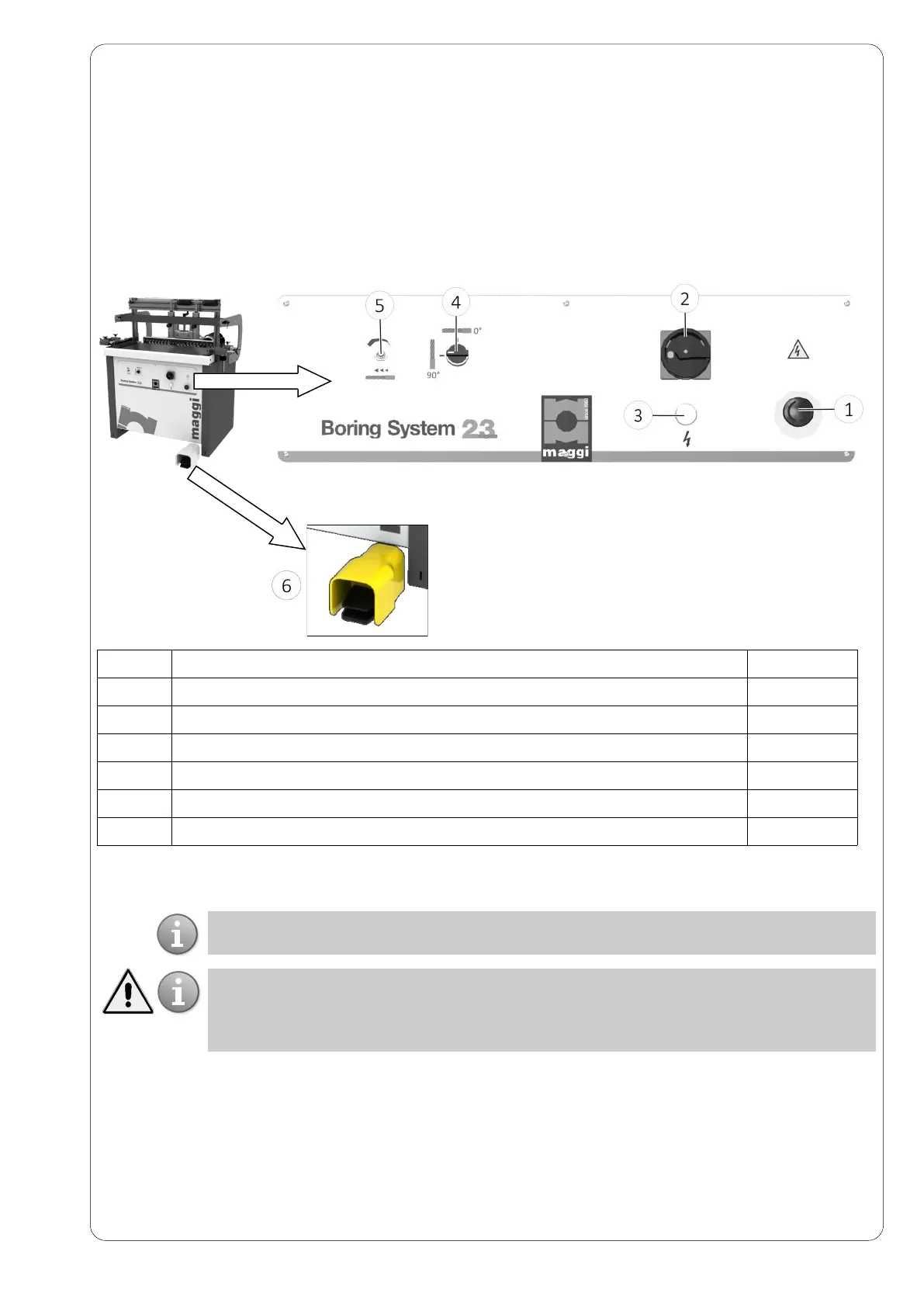

6.1 CONTROL PANEL
POS DESCRIPTION COLOR
1
EMERGENCY PUSHBUTTON
RED
2
POWER ON/OFF MAIN SWITCH
BLACK
3
ELECTRIC POWER PRESENCE SIGNAL LAMP
WHITE
4
SELECTOR FOR 0° - 90° HEAD POSITIONING
BLACK
5
SPEED REGULATOR FOR DRILLING HEADS LINEAR FEED
BLACK
6
WORKING CYCLE ON/OFF COMMAND PEDAL
YELLOW
EMERGENCY PUSHBUTTON (1): with its pressure all the electrical functions of the machine are interrupted.
To restore the electrical functions, turn the mushroom button in the direction of the arrows
SELECTOR FOR 0° - 90° HEAD POSITIONING (4): used to activate the pneumatically-controlled rotation
mechanism of the spindle head of 0 - 90 °
SPEED REGULATOR FOR DRILLING HEADS LINEAR FEED (5): controls the linear feeding speed of the
drilling head
ATTENTION: THE EMERGENCY BUTTON ACTIVATES ONLY ON THE ELECTRIC
CIRCUIT ALL THE PNEUMATIC ACTUATORS REMAIN REGULARLY POWERED BY THE
PNEUMATIC LINE PRESSURE
TO STOP THE WORKING CYCLE PRESS THE EMERGENCY PUSHBUTTON
