MAGGI TECHNOLOGY - BORING SYSTEM 23 - REV00 Pag. 29

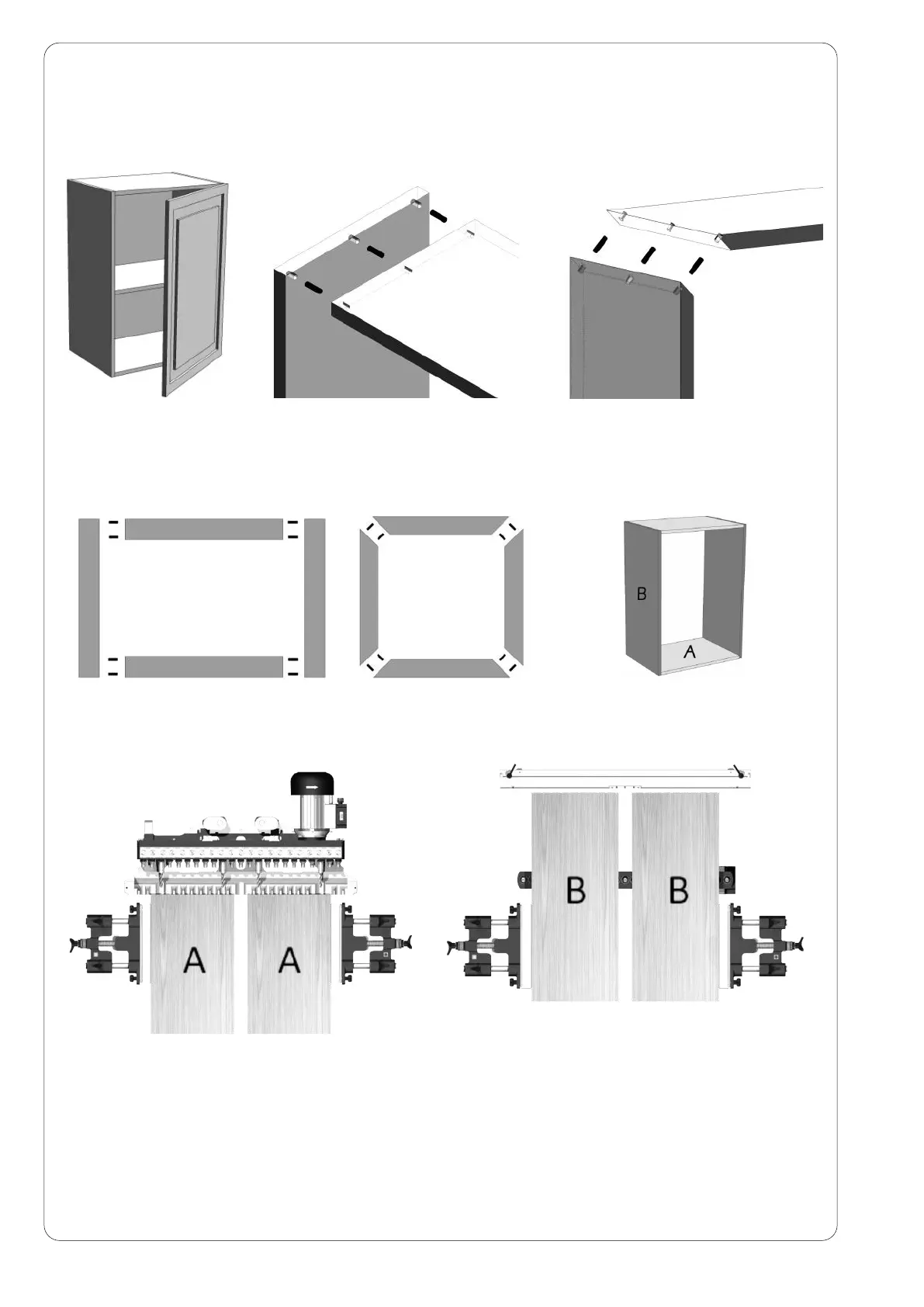

7. WORKING EXAMPLES
SIMULTANEOUS MIRROR DRILLING EXAMPLES
Simultaneous drilling of two side panels (drilling head
at 90°)
Simultaneous mirror drilling of two panels (drilling
head at 0°)
PANEL MATING EXAMPLES
Mating parts (at 0°) Mating parts (between 0° and 90°) Assembling parts
FRAME MATING EXAMPLE AT 0° AND AT 45°
Reference assembling
