4. INSTALLATION
The machine is packed in a wooden box. Please take care in moving correctly the machine
Transport the machine already packed in an area close to the one choosen for placing the machine, then unpack
the machine.
4.1 PLACING THE MACHINE
The machine must be placed on a stable plain surface, capable to support the weight of the machine itself; any
possible difference in height must be in conformity with building rules. When the machine has to be placed on
raised plain surface (higher floor) the load-bearing slab must be adequate to the weight of the machine..
Put the machine in the right place, as requested for operative requirements, where:
it is easy to connect the machine to electrical power supply
it is easy to connect the machine to pneumatic power supply
there is enough lighting to see every part of the machine itself.

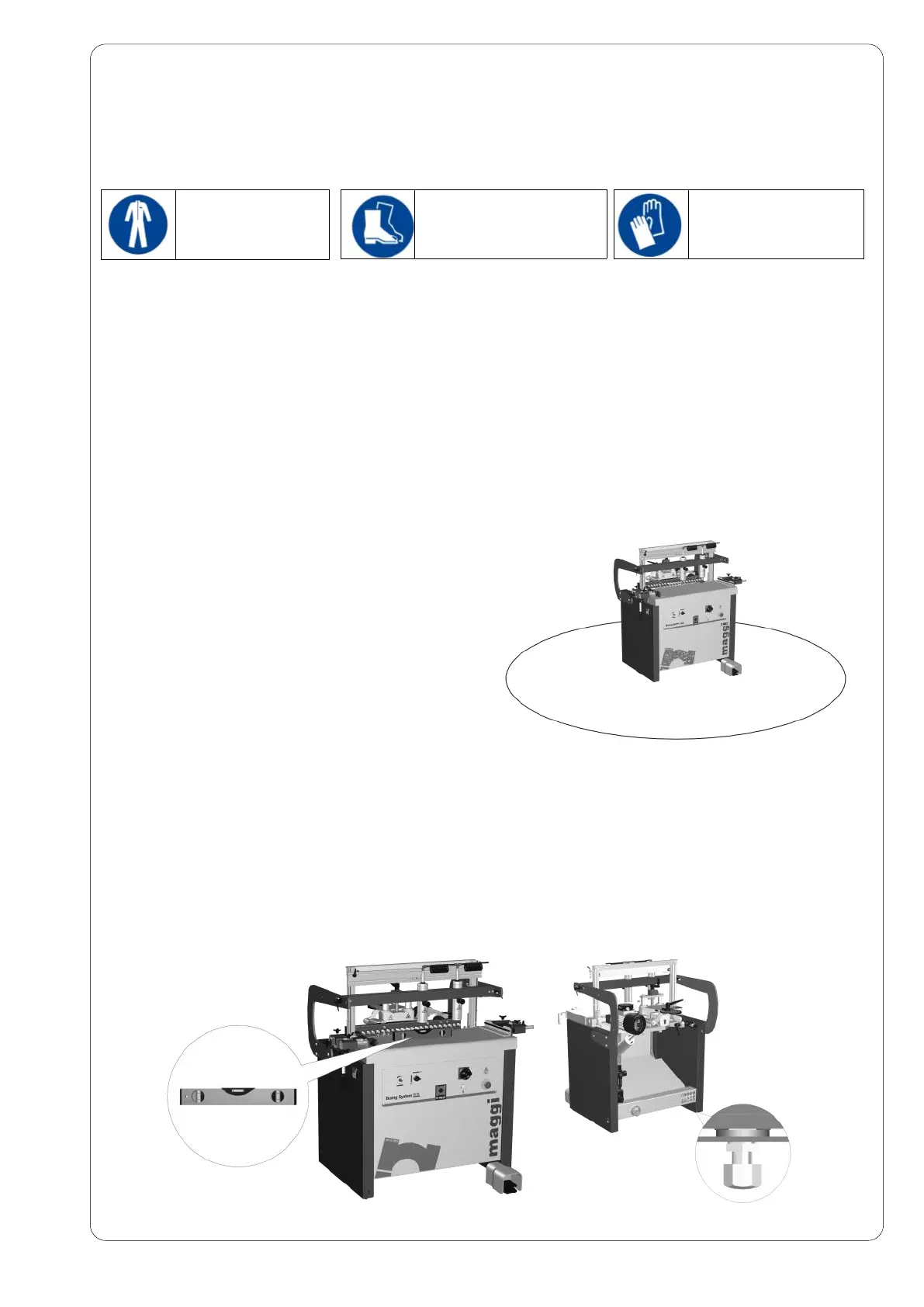

4.2 WORKING AREA
For a correct use of the machine, the following
zones must be kept clear.
Pag. 12 MAGGI TECHNOLOGY - BORING SYSTEM 23 - REV00
4.3 LEVELLING THE MACHINE
Adjust the levelling feet so that the machine is perfectly leaned on the floor, then align the working table of the
machine by using a spirit level.
Before going on with levelling, tighten the alignment pins into the threaded holes of the bed frame, remove the
protective oil film from planes and every not painted surface, by using petroleum or kerosene only.
Do not use any solvent as gasoline and diesel oil, because they can damage the paint, making it dull, or oxidize
other parts.
DPI - WEAR
PROTECTIVE
CLOTHES
DPI - WEAR
PROTECTIVE SHOES
DPI - WEAR
PROTECTIVE
GLOVES
Ø 4 mt
