6.2 WORKING CYCLE
MAGGI TECHNOLOGY - BORING SYSTEM 23 - REV00 Pag. 19
After setting the machine, follow the steps in the following paragraph to start the work cycle:
1) Turn the main switch (2) to the ON position. The machine is ready for the start of the work cycle.
2) By operating the pneumatic pedal, the spindles turn and the head starts the working cycle, while the
clamping devices (clamps) block the piece.
3) If the pedal is released, the back returns to the rest position and the spindles stop.
4) The clamping devices (clamps) unlock the piece when the head returns back to the starting position.
TO STOP THE WORKING CYCLE, PRESS THE EMERGENCY PUSHBUTTON
WORKING CYCLE ON/OFF COMMAND PEDAL (6): the pedal controls the work cycle of the machine. If you
press and hold the pedal, the electric motor is activated and therefore the rotation of the spindles, the
advancement of the boring head and the activation of the piece clamping pressers.
when the pedal is released, the spindles stop, the head returns to the rest position and the pressers unblock
the piece when the head has returned to the starting position.

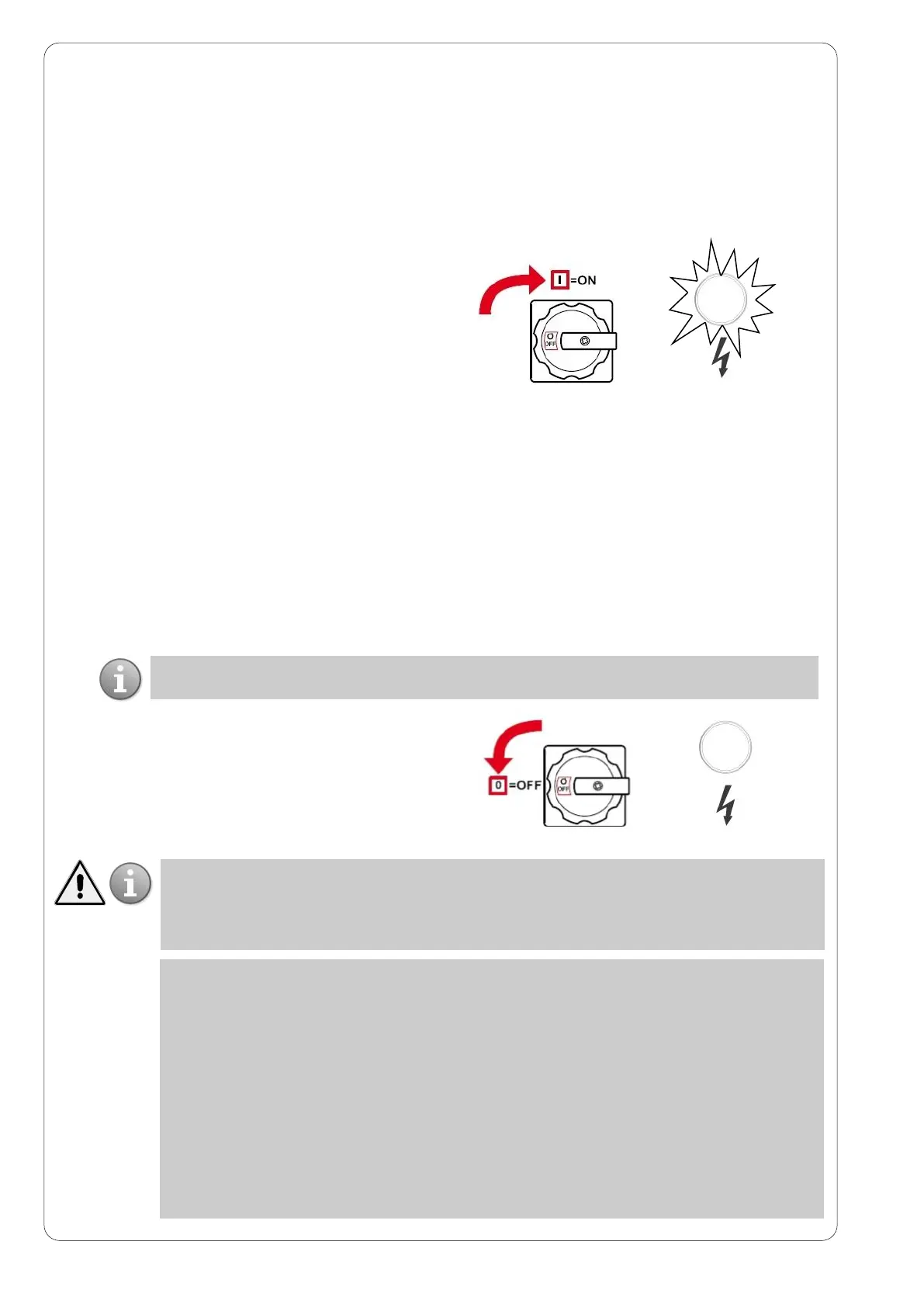

TURNING ON THE MACHINE
Turn the main switch to the ON position "I"
Check that the line presence light is on
WORKING CYCLE EXECUTION
Place the panel to be machined on the working plane of the machine, taking care to position it correctly
according to the type of work to be performed
TURNING OFF THE MACHINE
Turn the main switch to the OFF “O” position
Check that the line presence light is off
NEVER LEAVE THE MACHINE UNATTENDED WHEN IN USE, FOR ANY REASON
WHEN THE MACHINE STOPS, WAIT FOR EVERY ORGAN IN MOTION TO ACTUALLY
STOPPED BEFORE LEAVING THE MACHINE.
MAINTENANCE:
disconnect the machine from energy sources: the electrical and pneumatic supply must be
interrupted and blocked
make sure that any residual energy has dissipated before performing any maintenance on
the unit
any necessary intervention must be carried out only by specialized personnel and / or
authorized to carry out maintenance operations
affix a clearly visible sign on the machine indicating that the machine is under maintenance
and cannot be used for processing
