Pag. 20 MAGGI TECHNOLOGY - BORING SYSTEM 23 - REV00

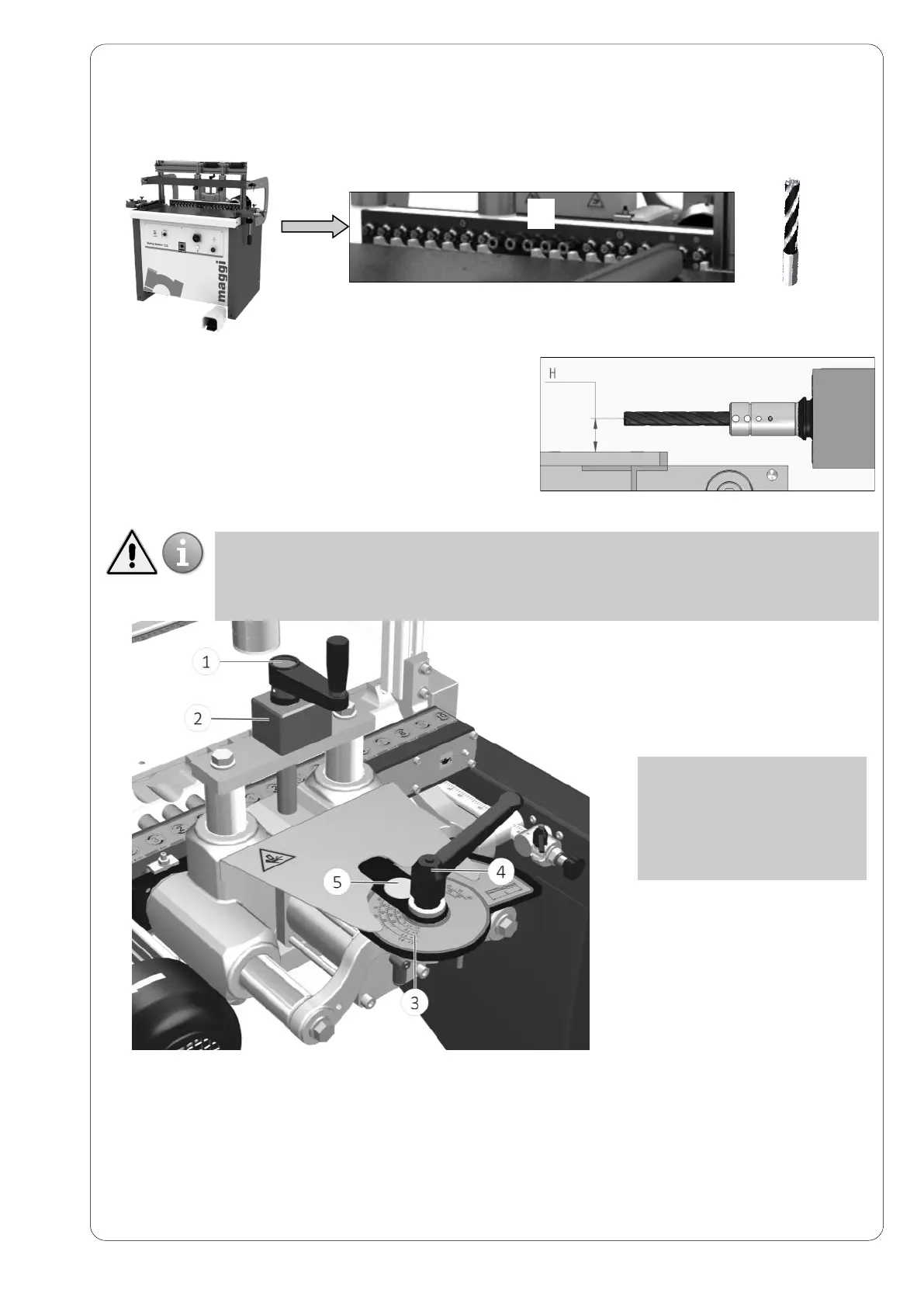

To carry out boring operations, proceed as described below:
a) Insert the suitable drills in the required position on the spindle head(A)
b) Set-up the height of the drill from the working table:
turn the handle (1) when the head is tilted at 90°.
The drill height is shown on the digital counter (2) in
millimetres. Turn the handle so that the screw is stretched
when the required height is reached. The choice of the tool
depends on the thickness of the piece to be bored, the
position of the hole and the hole diameter.
6.3 DRILLING DEPTH ADJUSTMENT
c) Adjust the boring depth: find on the depth selection screw (3) the scale referring to the total length of the
drill being used, then set (with no need for calculation) the actual boring depth.
Release the handle (4) and turn the depth selection screw to the required point: the pointer (5) which also
acts as a magnifier, will show the chosen depth.
Firmly tighten the handle (4) before starting boring operations.
d) Testing: use a scrap piece of wood to test the machine settings before boring a good piece of wood
THE SET-UP OF THE
DRILLING DEPTH IS
CARRIED OUT THROUGH
THE "BACKSTOP SPIRAL"
DANGER OF CUTTING AND BURNS
Handle the tools only after wearing mechanical protective gloves, DO NOT touch the tools that
have just worked, wait for the tool to cool down
A
