Maggi BORING SYSTEM 23 - Page 28

MAGGI TECHNOLOGY - BORING SYSTEM 23 - REV00 Pag. 21
ATTENTION - HORIZONTAL DRILL
SET THE ACTUAL WORKING DEPTH IMMEDIATELY AFTER YOU REFER TO THE SCALE

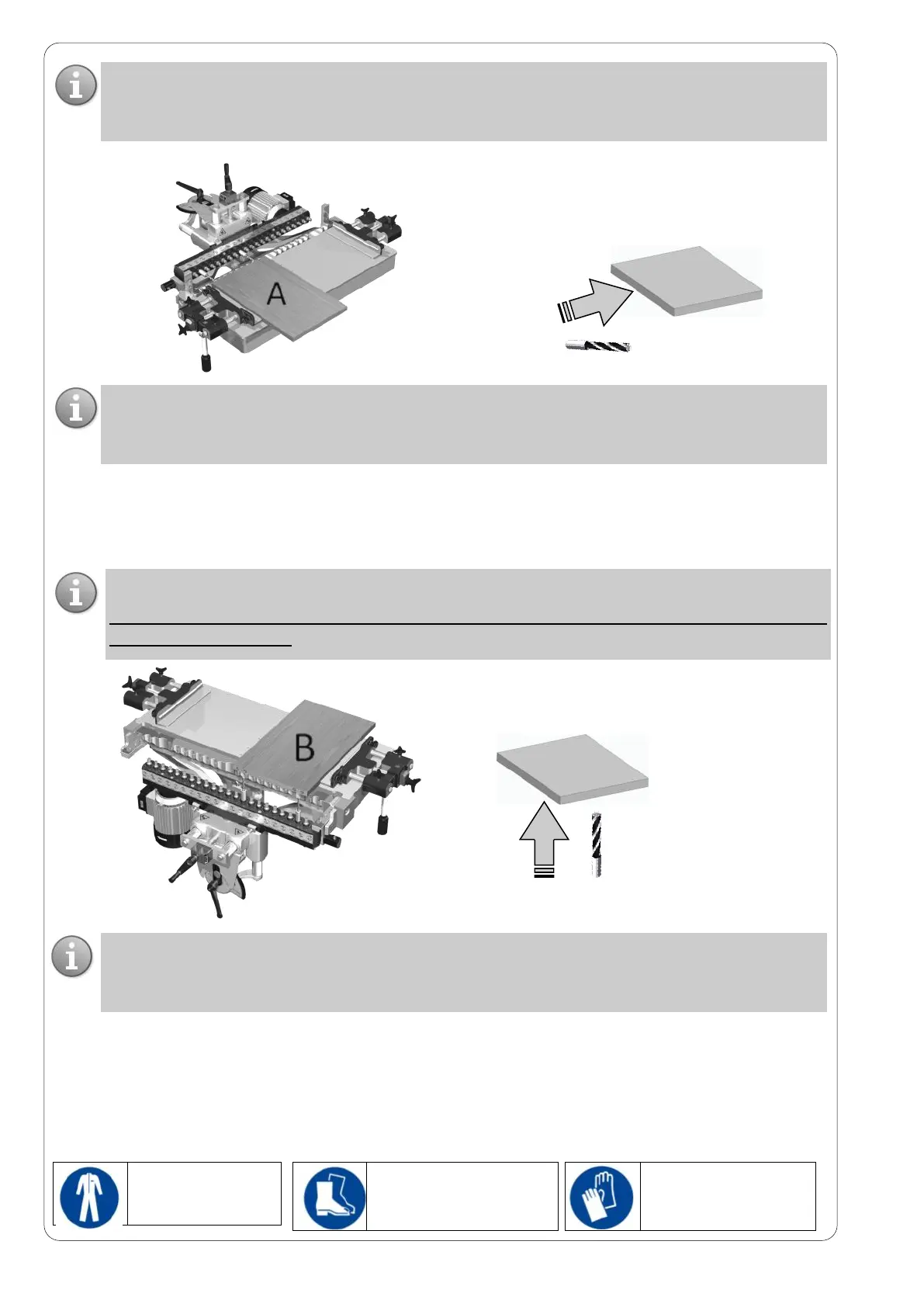

READING THE POINT IN USE (Fig. A)
Fig. A HORIZONTAL DRILL 0°
Fig: B VERTICAL DRILL 90°
ATTENTION - VERTICAL DRILL
TO HAVE THE EFFECTIVE DEPTH OF WORK, YOU MUST ADD 10 mm TO THE READING
STAIRCASE OF THE TIP.
HORIZONTAL DRILL
EFFECTIVE WORKING DEPTH = VALUE INDICATED BY THE READING SCALE ("SPIRAL OF
BATTLE") OF THE TIP IN USE
VERTICAL DRILL
EFFECTIVE WORKING DEPTH = 10mm + VALUE INDICATED BY THE READING SCALE
("BACKSTOP SPIRAL") OF THE TIP FOR USE
DPI - WEAR
PROTECTIVE
CLOTHES
DPI - WEAR
PROTECTIVE SHOES
DPI - WEAR
PROTECTIVE
GLOVES
