2.9. ACCESSORIES
2.8 DUST EMISSION
The following results are obtained from the determination of dust emission in 1 hour of continuous work, drilling
a fir PVC covered panel 20 mm thick. Dust emission turned out 13,9 mg/N cu.m at 1,5 m from ground in front of
the machine in the operator position.
The machine is designed to work in close environment, so it is necessary to connect it to a suitable
dust extraction system which complies with the EN 12779 regulation.
To not exceed the dust emission level it is necessary following strictly these rules:
 always turn on the dust extraction system before start working with the machine;
 clean regularly (as written in this manual) the parts of the machine;
 check regularly that the dust extraction system works properly;
 check that the parts of the machine are not damaged or closed by dust and/or scraps.

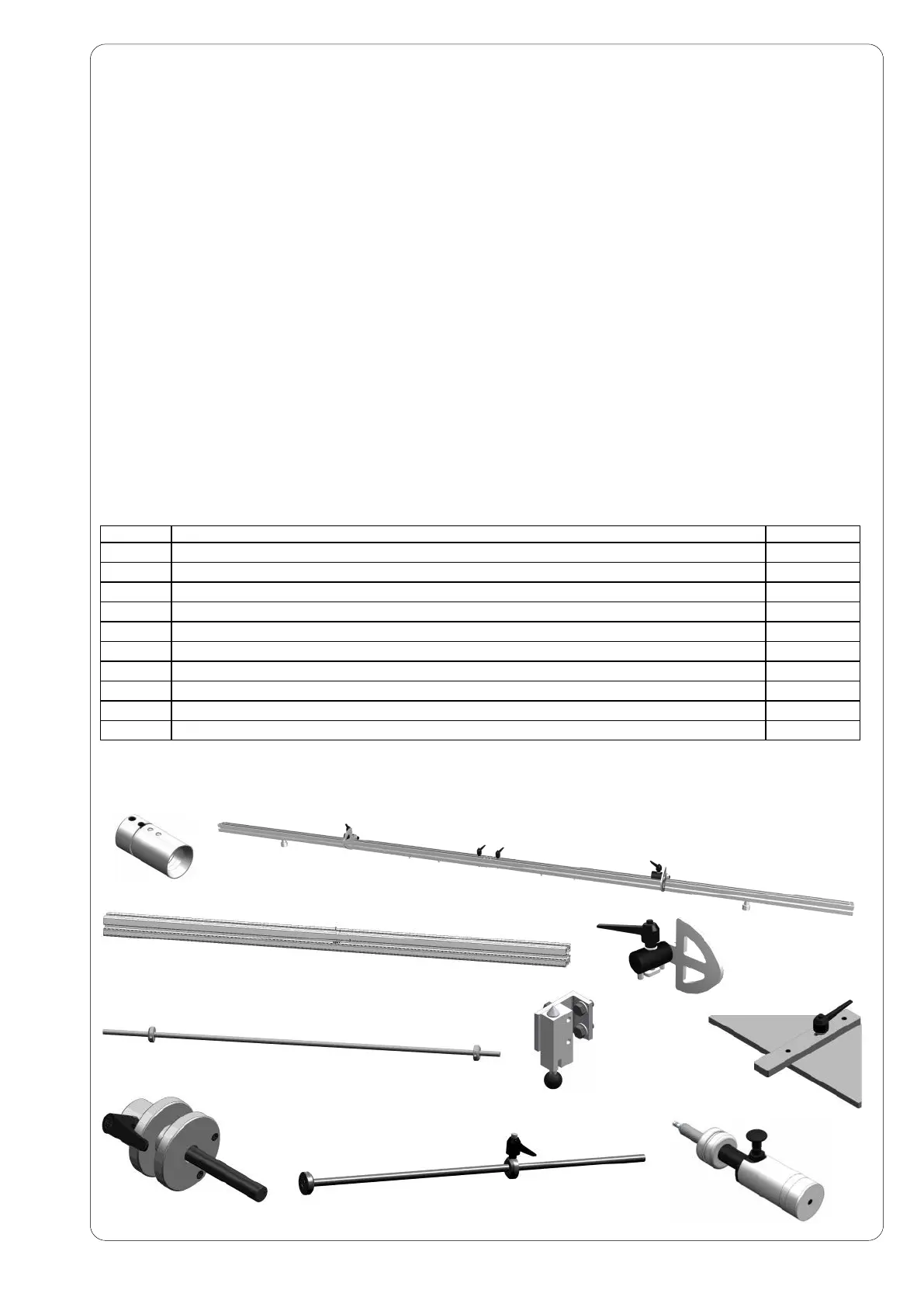

CODE DESCRIPTION NOTE
36000061
BUSHES FOR QUICK CHANGE DRILL
See Fig. A
26054810 ALUMINIUM FENCE WITH 4 STOPS ( 1500 + 1500 mm ) See Fig. B
29970202 FENCE EXTENSION ( 1000 mm ) See Fig. C
26050801 EXTRA STOP FOR ALUMINIUM FENCE See Fig. D
26001058
REFERENCE FENCE FOR QUICK AND EXACT SETUP OF STOPS ON THE LONG FENCE FOR LNE BORING (1088 mm)
See Fig. E
29900100 STOP REFERENCE PIN FOR LINE BORING See Fig. F
26000069 SET OF REFERENCE FENCES FOR MOULDINGS AT 45° AND 90° See Fig. G
26000071 REFERENCE STOP TO MATCH THE LONG PANEL DURING TRANSVERSE BORING See Fig. H
26000061 REFERENCE FENCE FOR REAR FENCE PARALLELISM ( 500 mm ) See Fig. I
29971019 EXTRA CLAMPING PRESSER See Fig. L
Fig. A
Fig. B
Fig. C
Fig. D
Fig. E
Fig. G
Fig. H
Fig. I
Fig. F
Fig. L
