2.2 INTENDED USE
The machine is a manually driven boring machine; it can make holes at minimum fixed distance of 32mm (or
multiple distance). The parts to be machined are loaded/unloaded manually
The machine has bene designed and built to be used by only one operator.
The operator:
 puts the panel to be drilled on the working table
 makes all the due regulations and set-up procedures
 starts the working cycle acting on the pedal
 block the panel in position using the pneumatic clamp units
 starts the drilling work.
2.3 MATERIALS
The boring system machine has been designed and built to drill the following materials:
 M.D.F
 panels of shaving wood, laminated wood, ennobled wood, etc.
The maximum dimensions of the panel which can be drilled on the machine are shown in the chapter
TECHNICAL DATA
Other materials, different from the ones described above, can be machined only after the written approval of
the manufacturer.
In particular it is not allowed to machine
 materials having toxic or dangerous substances for operator’s health and safety,
 metals
 other materials that can modify the correct working of the machine or cause fire or explosion.
Any modification is forbidden without the written authorization of the manufacturer.
It is not allowed to tamper with the safety protection devices
2.4 USABLE TOOLS
2.5 IMPROPER USE
Any operation that does not comply with the instructions given herein is to be regarded as improper use
THE MANUFACTURER CANNOT BE CONSIDERED LIABLE FOR ANY DAMAGE CAUSED
TO PEOPLE, ANIMALS OR PROPERTY RESULTING FROM IMPROPER USE OF THE
MACHINE.

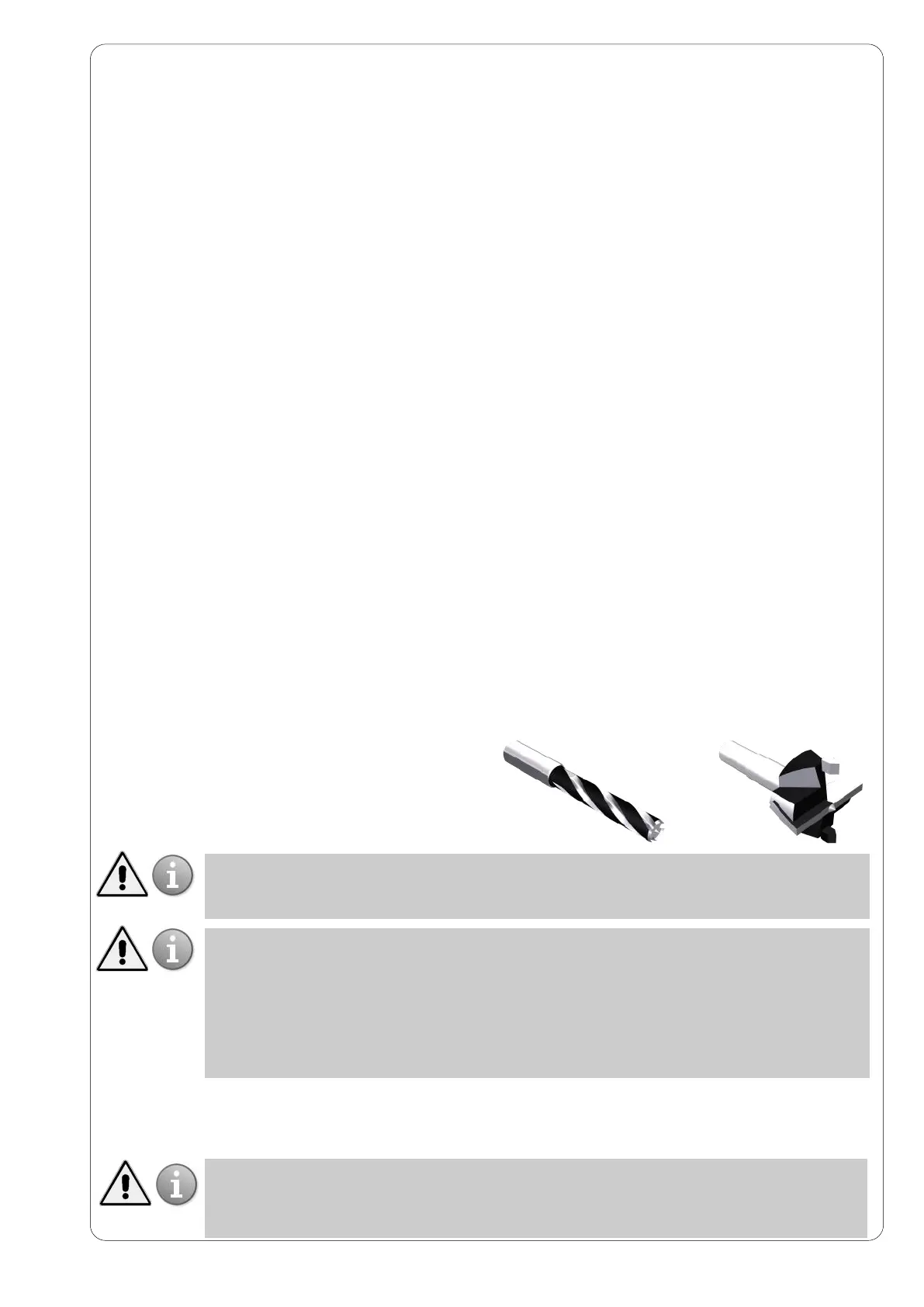

Drills for quick change spindles, 10 mm O. D. and 20
mm length shank (Fig. A )
Drills up to 40 mm O. D. can be used ( Fig. B )
DANGER OF CUT AND BURN.
wear always protective gloves before handling and/or working with tool
DANGER OF BURN: do NOT touch tool just before end working. wait for the temperature has
slow down before touching it.
