Pag. 30 MAGGI TECHNOLOGY - BORING SYSTEM 23 - REV00

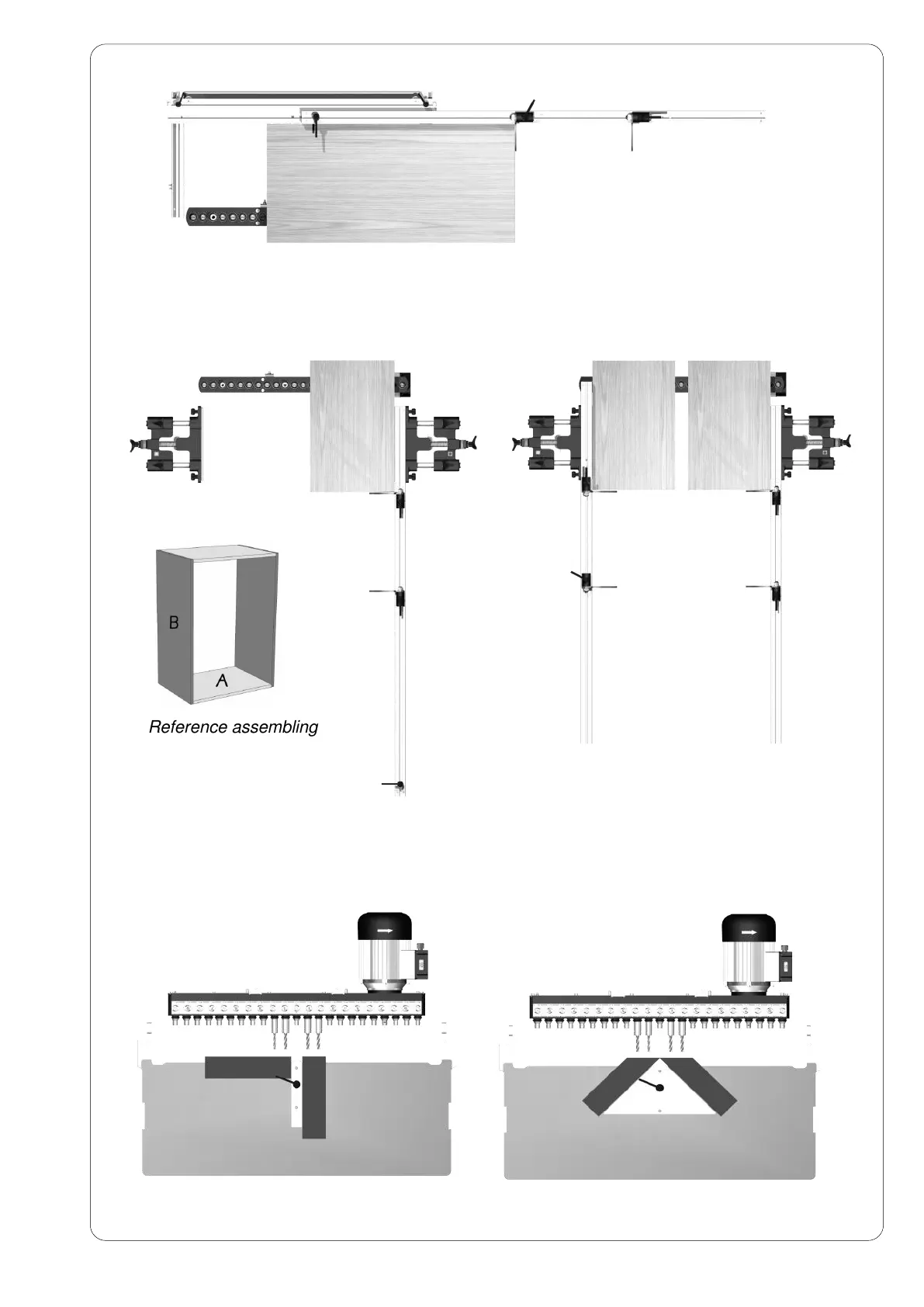

DRILLING EXAMPLES WITH REFERENCE FENCES
Longitudinal positioning of the 1500mm fence, equipped with two reference stops, to drill line holes on large
panels. The long fence can be used both on left and right side with high accuracy. The 3000mm long fence,
equipped with four reference stops, is particularly suitable to drill line holes on very large panels: thanks to its
dimension, it ensures a fast and complete positioning.
Reference assembling
DRILLING EXAMPLES USING FRAME FENCE
Transverse positioning of the fence, equipped with
reference stops, to drill transverse holes on side pan-
els for the insertion of support panels
Transverse positioning of two fences, equipped with
reference stops, to drill simultaneously transverse
holes on side panels for the insertion of support
panels
Example of the use of the standard dimension fence
to drill simultaneously two frames at 0° - 90°
Ex-
ample of the use of the triangular fence to drill simul-
