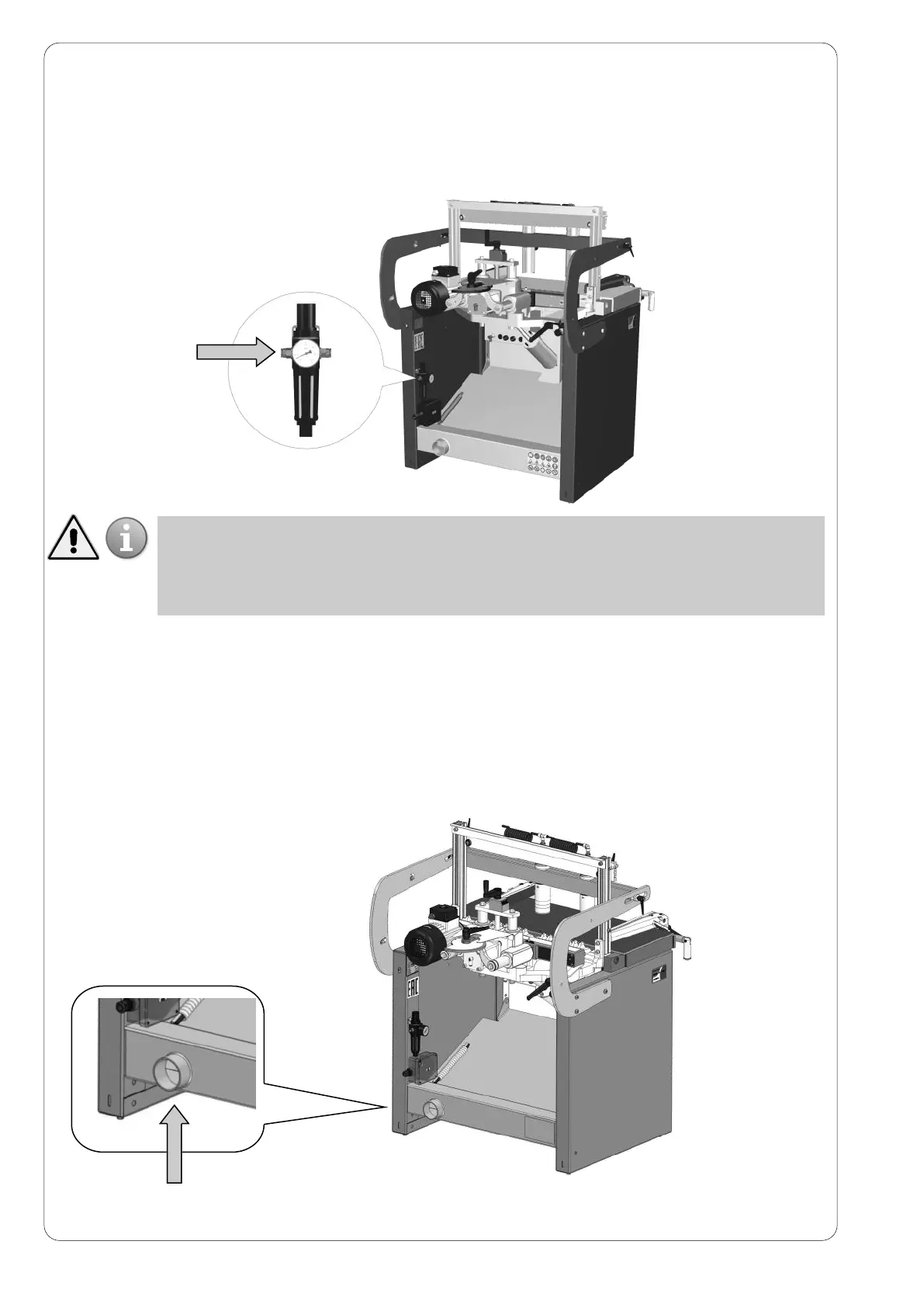

5.2 PNEUMATIC AIR CONNECTION
Connect the Filter regulator unit (1) with the air line through a rubber or nylon hose with a minimum inside
diameter of 8 mm.
If the length of the tube exceeds 5/6 metres it is advisable to increase the inside diameter to 10 mm, you are also
recommended to install a supply shut-off valve on the machine with manual control complete with air relief.
ATTENTION
MAKE SURE that the PNEUMATIC SYSTEM of the place where the machine is installed is able
to PROVIDE COMPRESSED AIR with FLOW and PRESSURE values as specified in the
Technical Data chapter.
DO NOT tamper with the pneumatic system
MAGGI TECHNOLOGY - BORING SYSTEM 23 - REV00 Pag. 17
5.3 DUST SUCTION SYSTEM CONNECTION
The machine must be connected to a suction and filtering system for dust and chips produced during
processing.
The system must be connected, through flexible pipes, to the mouth of the installed suction hood.
The characteristics of the intake system must be such as to guarantee an air speed in the pipes of at least 27
m / sec and a flow rate correlated to the section corresponding to the pipes connecting the operating head and
other, if any, service pipes. The plant must keep the dust concentration below the safety levels foreseen in the
country where the machine is located
Ø76mm
