Pag. 26 MAGGI TECHNOLOGY - BORING SYSTEM 23 - REV00

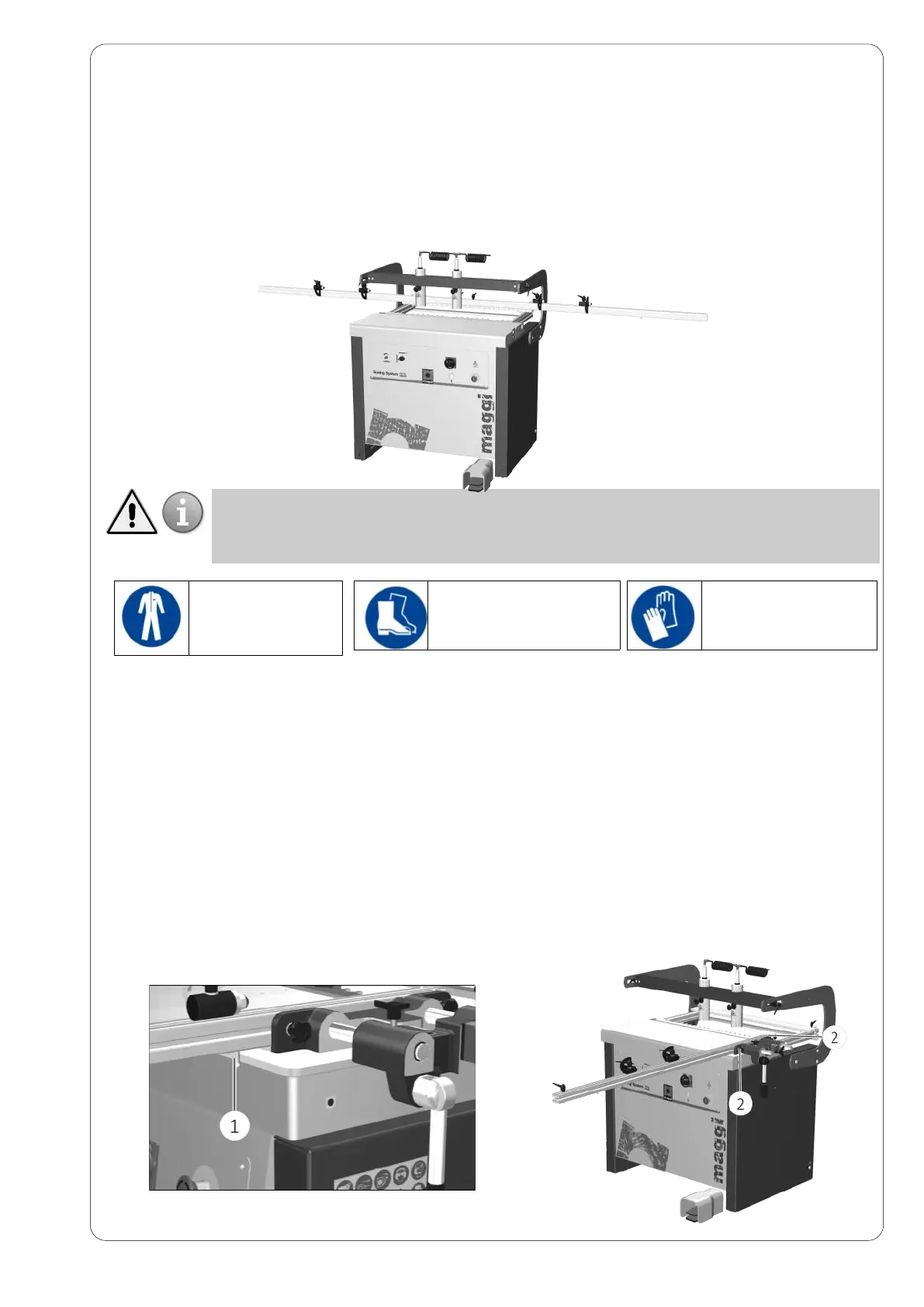

6.10 TRANSVERSE POSITION OF EXTENSION FENCE ( OPTIONAL )
To use the extension fence transversally you need to fasten it to the side square using the locking knobs
provided. Follow the procedure described below:
Position the extension on the inner side of the side square, locking it in place with the help of the
reference pin (1) on the extension itself.
Clamp the locking knobs (2) on the side square.
Once the extension fence has been positioned, it is possible to exclude the other side square if
necessary.
It is now possible to use the mobile stops to co-ordinate the relative positions of the sections to be bored
on long pieces.
Add an adequate support (i.e. easel) to the rod and to the panel to be drilled.
6.9 USE OF THE 1,5 + 1,5 MT STANDARD EXTENSION FENCE ( OPTIONAL )
The extension fence is used to make a series of larger holes than the machine can make or to bore large-
sized pieces. Use of the extension generally implies complete or partial exclusion of the side squares and
positioning the spindle head at 90°. For longitudinal use of the extension, we advise you to exclude the side
squares completely, as it is possible to use mobile reference stoppers on the extension itself (the extension is
provided with 4 mobile stoppers with positioning screws, stop screw and extension clamping device) for
combined positioning of the work piece.
ATTENTION
TAKE CARE OF HANDLING OF THE SIDE SQUARE UNITS: RISK OF CRUSHING AND
CUTTING
DPI - WEAR
PROTECTIVE
CLOTHES
DPI - WEAR
PROTECTIVE SHOES
DPI - WEAR
PROTECTIVE
GLOVES
