Pag. 32 MAGGI TECHNOLOGY - BORING SYSTEM 23 - REV00

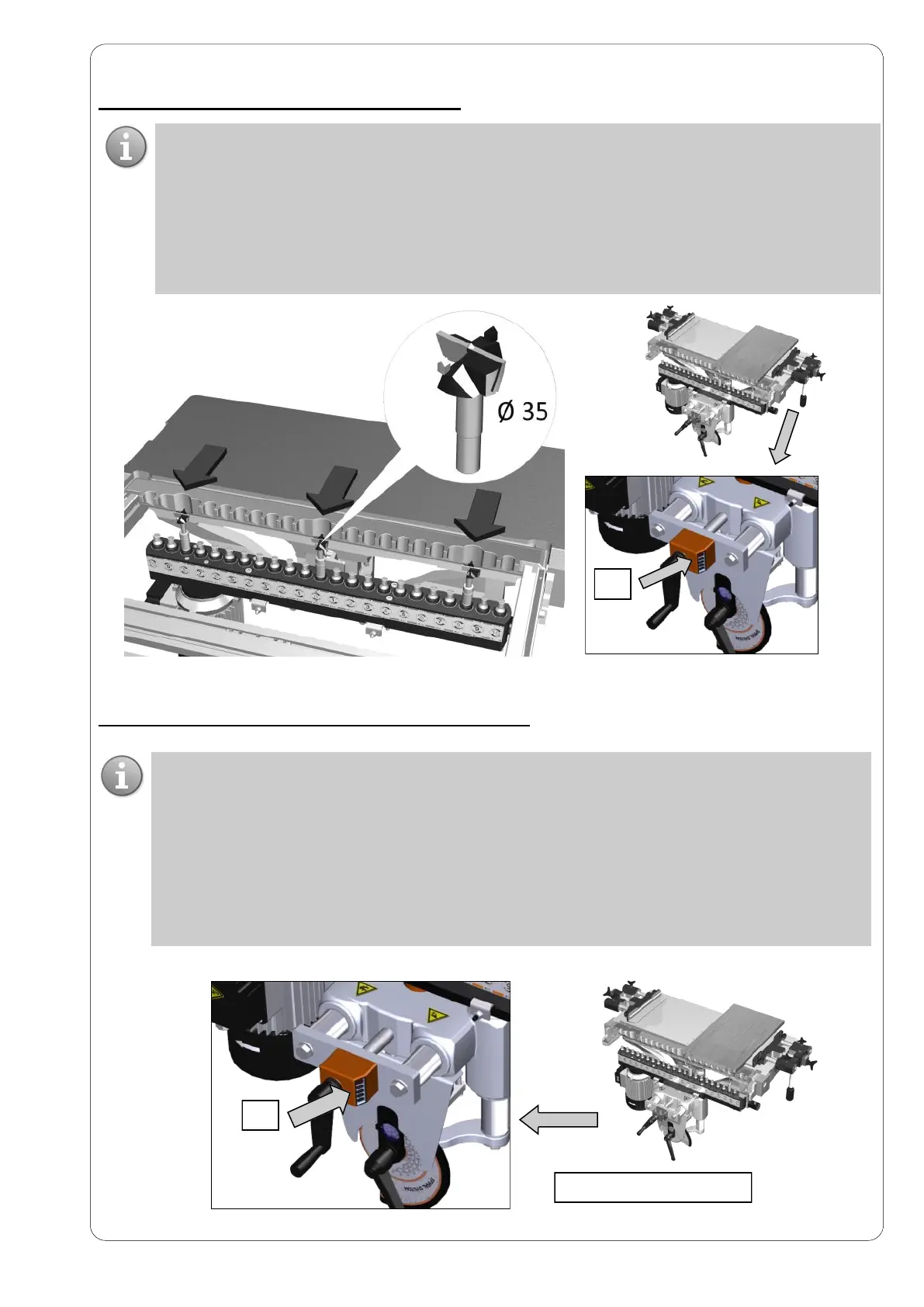

PROCEDURE FOR TOOLS WITH 35mm MAX O.D.
DRILLING EXAMPLES FOR HINGE SEAT
WARNING - 35mm O.D. MAX TOOLS
RISK OF COLLISION MECHANICAL PARTS
RISK OF DAMAGE TO THE MACHINE
MOUNT THE 35mm O.D. TOOL MAX ONLY IN THE 3 SPECIAL POSITIONS ON THE MACHINE
THE HEAD GROUP MUST BE PLACED IN VERTICAL POSITION OF 0.0
PROCEDURE FOR TOOLS WITH 40mm O.D. OR GREATER
WARNING - 40mm O.D. TOOLS OR GREATER
RISK OF COLLISION MECHANICAL PARTS
RISK OF DAMAGE TO THE MACHINE
MOVE AWAY THE DRILLING HEAD FROM THE RACK OF A DISTANCE D = TOOL O.D. + 10mm
THE TOOL MUST BE COMPLETELY OVER THE LEVEL OF THE RACK
THE TOOL CAN BE MOUNTED ON ANY POSITION OF THE HEAD
D = TOOL O.D. + 10mm
0,0
D
