Flex Pro Transmitter Instruction Manual
April 2019
Page 14 of 25
3 General System Information

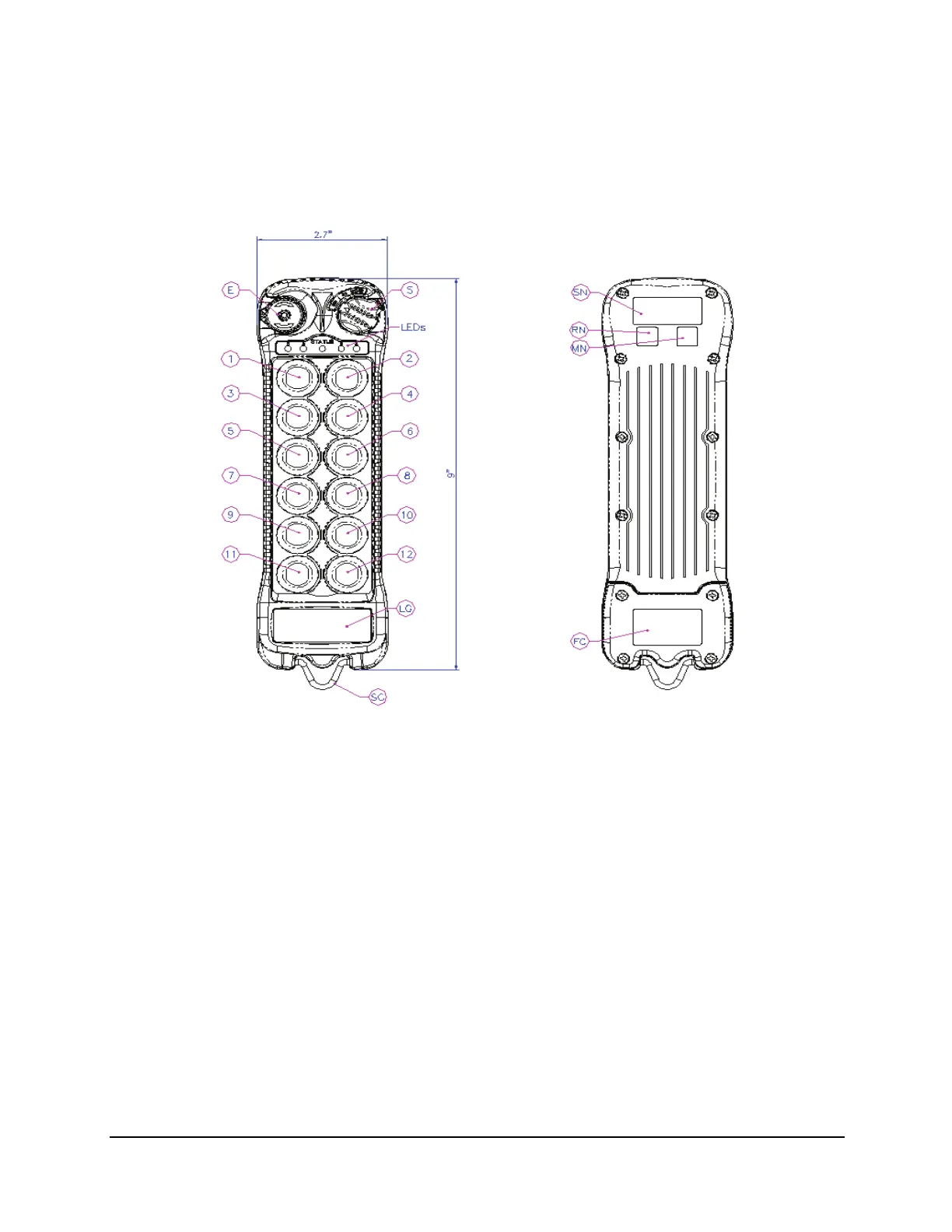

3.1 External Illustration (Pro 12 Configuration)
Fig. 1
NOTE: Push Buttons #9 – #12 are not present on the Flex Pro 8 Module.
E. Emergency STOP Button 9. Pushbutton #9
S. Removable Power Key Switch 10. Pushbutton #10
1. Pushbutton #1 11. Pushbutton #11
2. Pushbutton #2 12. Pushbutton #12
3. Pushbutton #3 SC. Strap Ring
4. Pushbutton #4 SN. System Information
5. Pushbutton #5 RN. System Channel
6. Pushbutton #6 MN. Crane Number
7. Pushbutton #7 FC. FCC Information
8. Pushbutton #8
