Installation and assembly
1. Stick enclosed label from the document set onto the glass wing. The label
makes it easier to see the glass wing. You can also use your own labels in-
stead of the enclosed ones, e.g. with your company logo.
2. A label is stuck to the swing door. The label gives values for S, T and C.
These values are needed for parameterisation.
3. Place the glass wings before the attachment points.
4. Screw on the glass wings at the top and bottom.
7.10 Dismounting and mounting the cover
For the following activities, for example, you must disassemble the cover:
› Switch the pedestrian gate on and off.
› Parameterise the control unit MGCplus.
The cover is held on by magnets.
Disassembly of the cover
1. Place the supplied tool near the magnets.
2. Lever the cover forward with the tools.
3. Disconnect the cover.

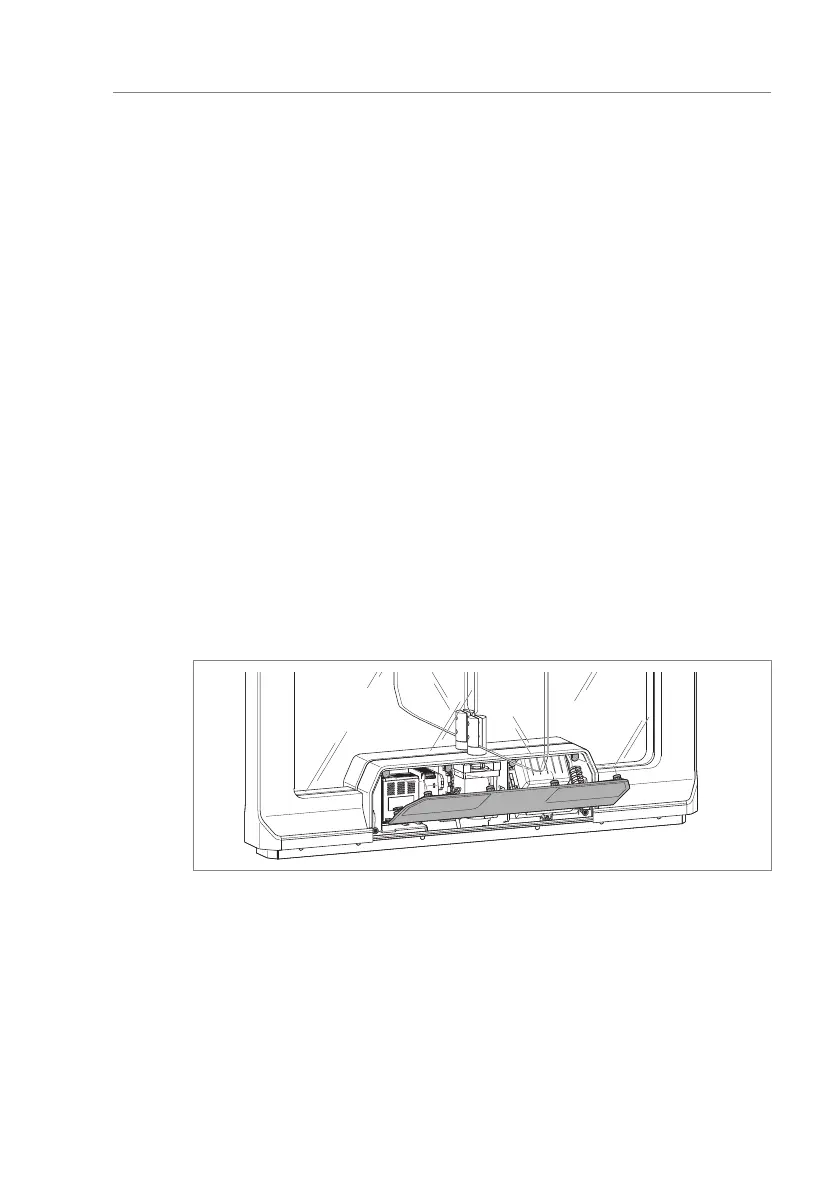

Fig. 28: Installing the cover
