Magnetic MHTM FlowMotion mWing - Foundation and Empty Conduit Plan and Reinforcement

37
mWing
Installation and assembly
7.4.4 Foundation and empty conduit plan and reinforcement
3
1
2
4
5
67
80
560560
(1300)
1400
400
(180)
Mag01011
90
90
120
100
100
130
35
60
115
Master
Paid
Unpaid
Slave
1
800

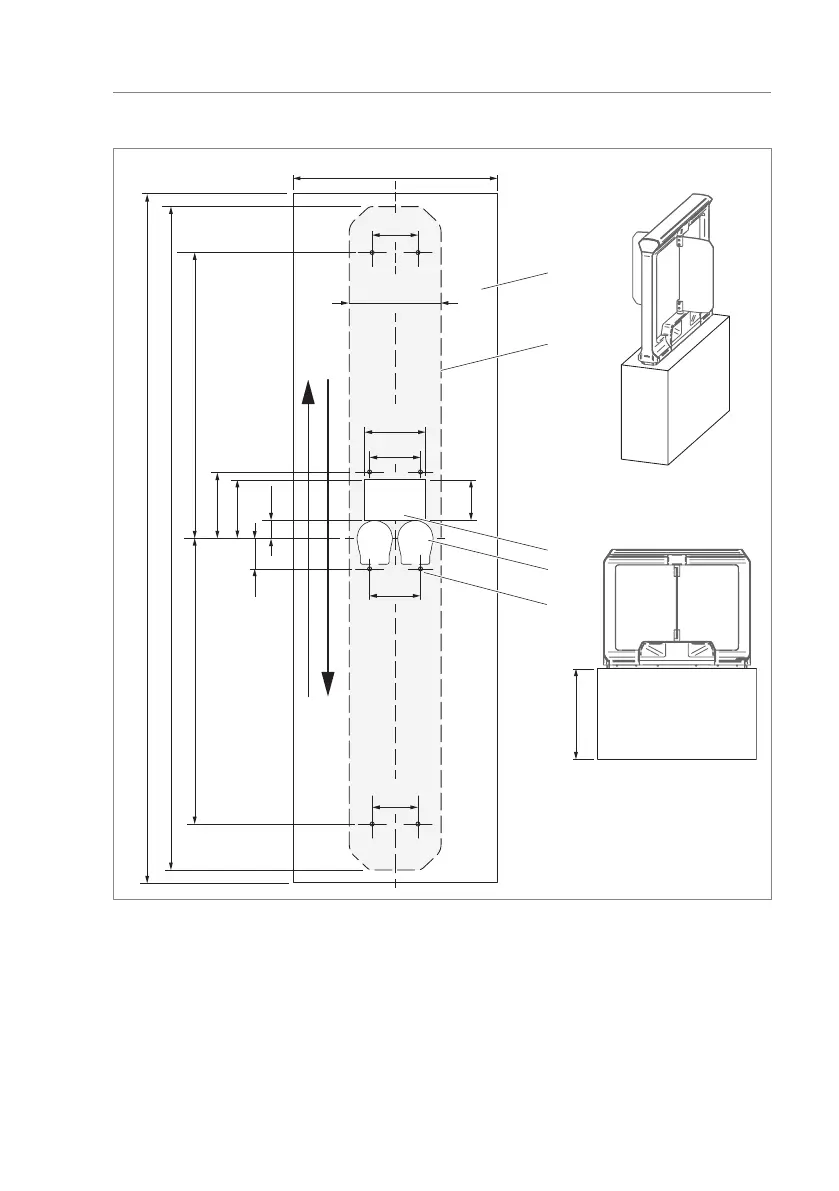

Fig. 11: Foundation and empty conduit plan (dimensions in mm)
1 Foundation, frost depth, outdoor area
2 Outline mWing
3 Feed-through for empty conduits
4 Position of the motors
5 Boreholes (8 x)
6 Passage direction 1 from "Paid" to "Unpaid"
7 Passage direction 2 from "Unpaid" to "Paid"
