7.9 Mounting the swing doors
IMPORTANT!
The swing doors are available in different heights. All figures
show the swing doors in the standard height. Swing doors in the
standard height are installed for delivery. Higher swing doors are
delivered separately.
1
2
3
4
5

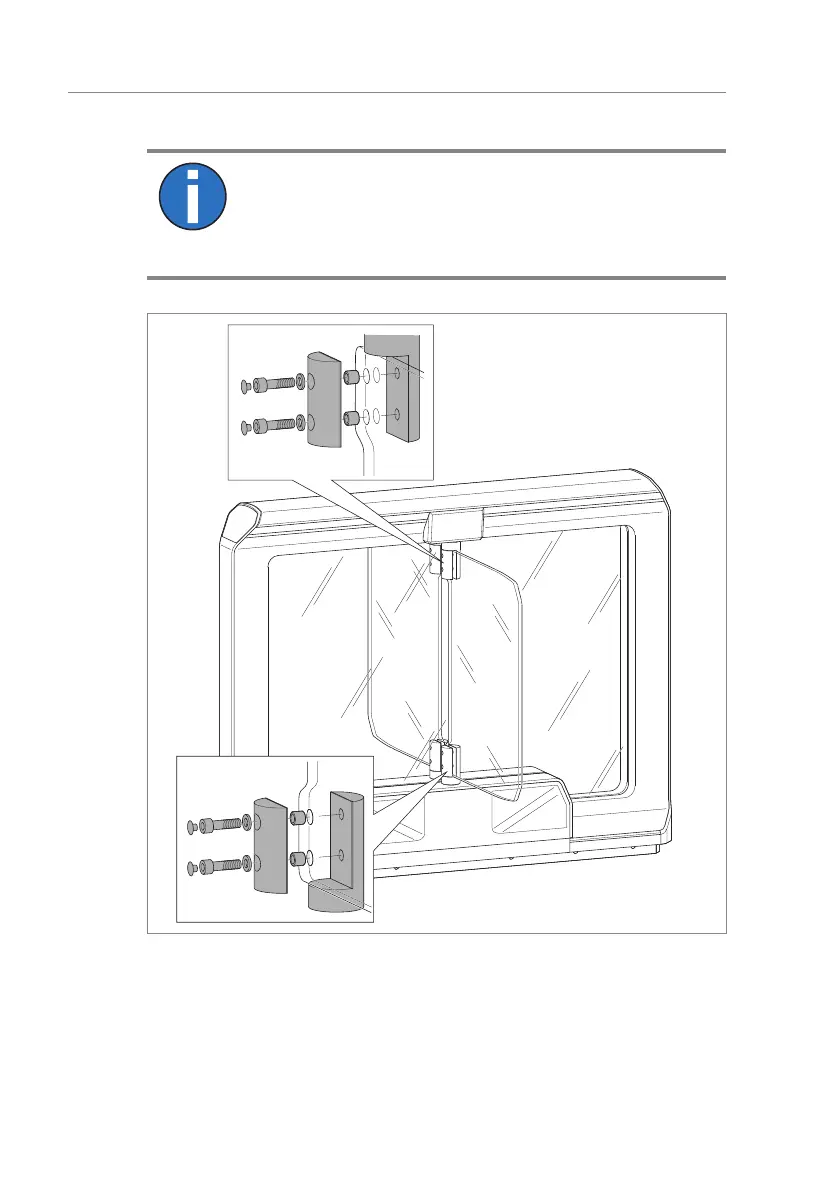

Fig. 27: Mounting the swing doors, e.g. glass wings
1 Sleeve
2 Attachment
3 Washer
4 Screw
5 Screw cover
