Magnetrol E3 Modulevel - Mounting Procedures; General Mounting Guidelines; Head Assembly Installation

3

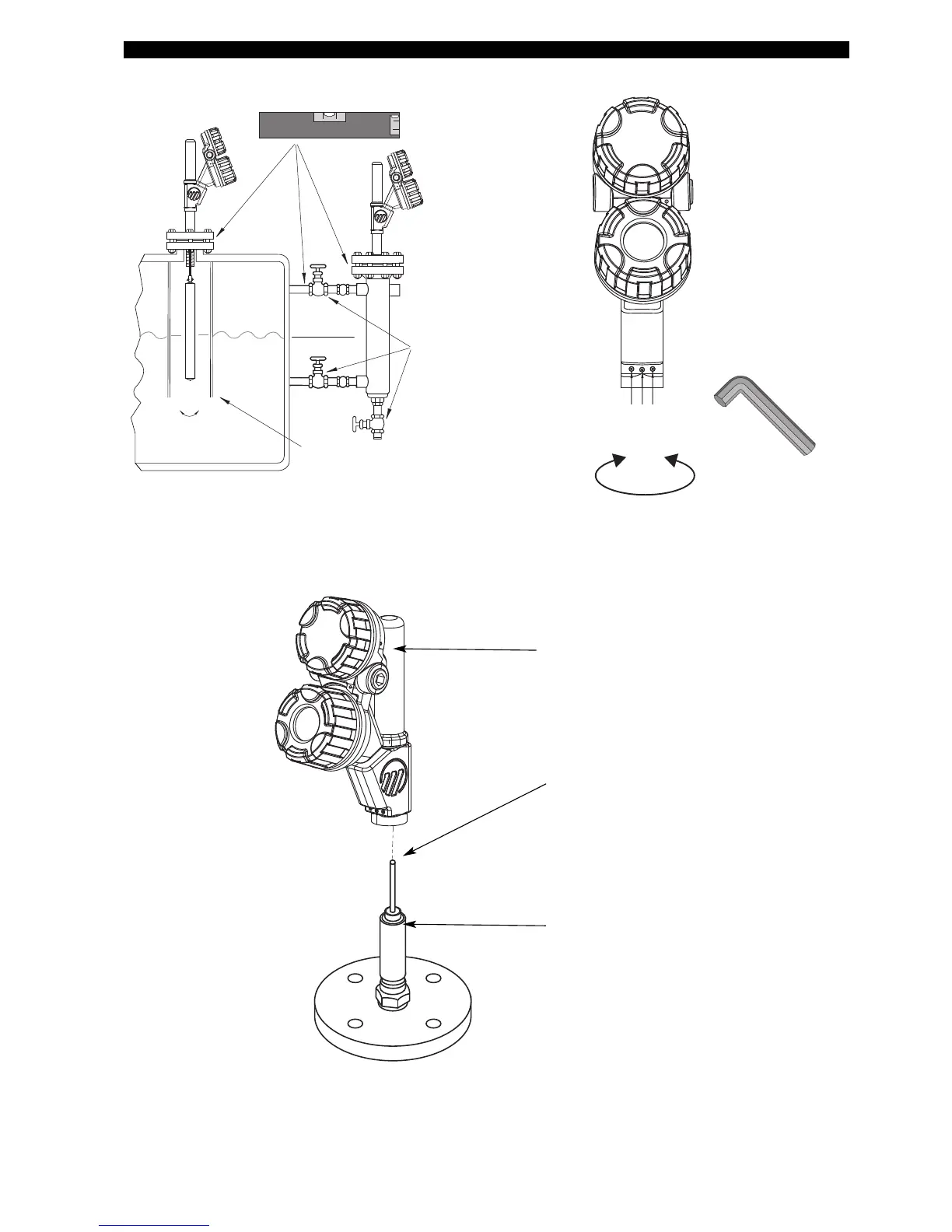

MOUNTING
max 1° tolerance
U
se stilling well in case
of turbulent medium
Shut-off valves are
r
ecommended
Always unlock for repositioning or removal
of head assembly and always relock,
a
fter final positioning
calibration vent
is recommended
Transmitter
Slide the head assembly over the enclosing tube. Make sure not to
bend the enclosing tube. Bending causes permanent damage.
Enclosing tube
Liquid
level
Size 1/8"
max 360 °
