3.2 Aligning
When using guide rails, position the device centrally in front of the vehicle.
Without guide rails, the device must be adjusted in front of each headlight. Please ob-
serve your national guidelines and specifications.
The device is correctly aligned when two symmetrical reference points on the front of
the vehicle are located on the black line of the alignment mirror.
3.2.1 Laser Alignment Unit (Option)

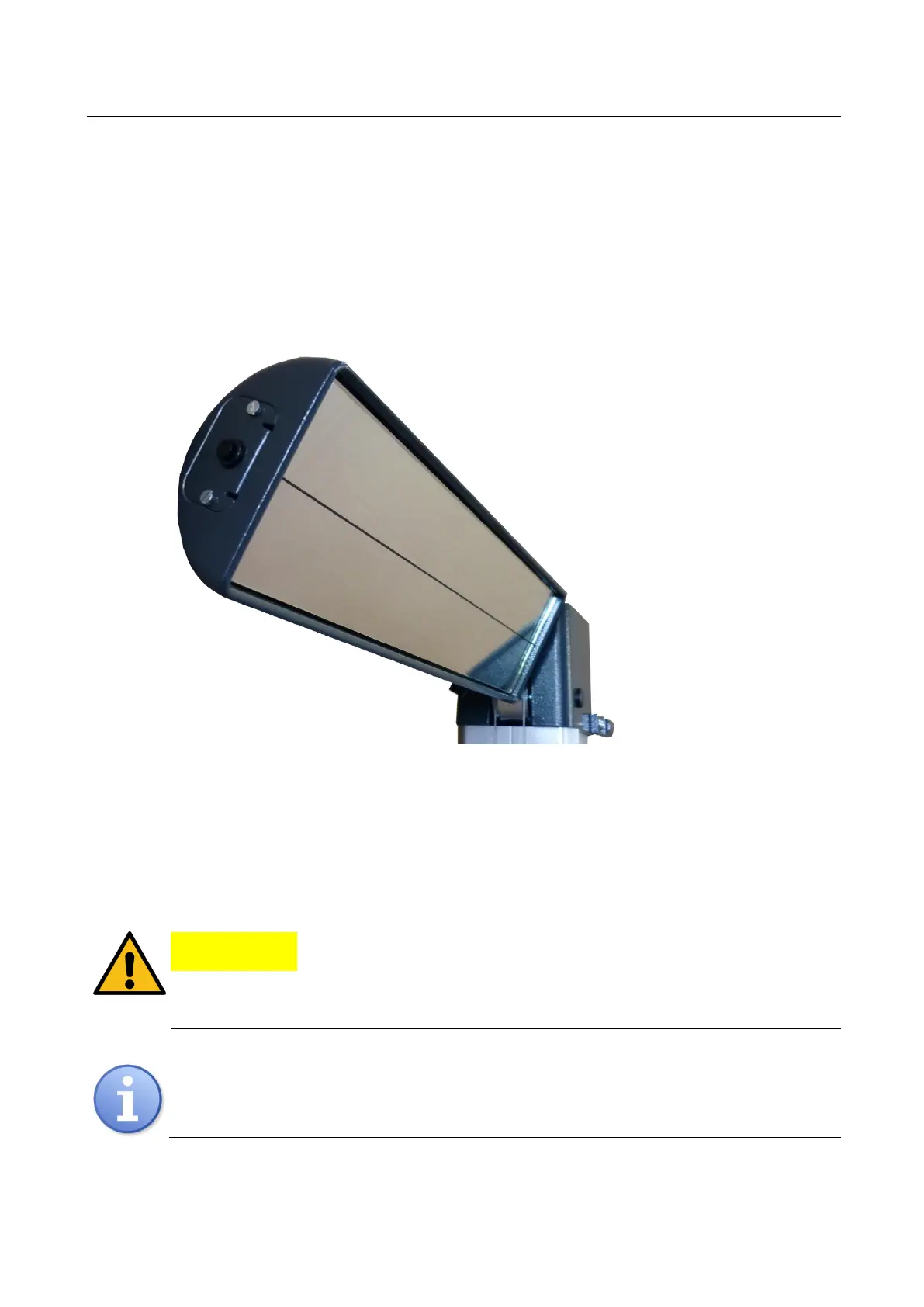

The optional unit is integrated into the mirror holder. The device is correctly aligned
when the laser pointer is parallel to two symmetrical reference points on the front of
the vehicle.
Observe manufacturer’s instructions according to workshop manual.
Never look into the laser beam (laser class 2M). Comply with work safety and accident
prevention directives (H&SW regulations) in respect of laser radiation.
The AA Mignon batteries powering the laser are located in the alignment unit and can
be easily replaced.
