MAHA MLT 3000 - Testing the Headlights

22
BA380701-en
3.4 Testing the Headlights

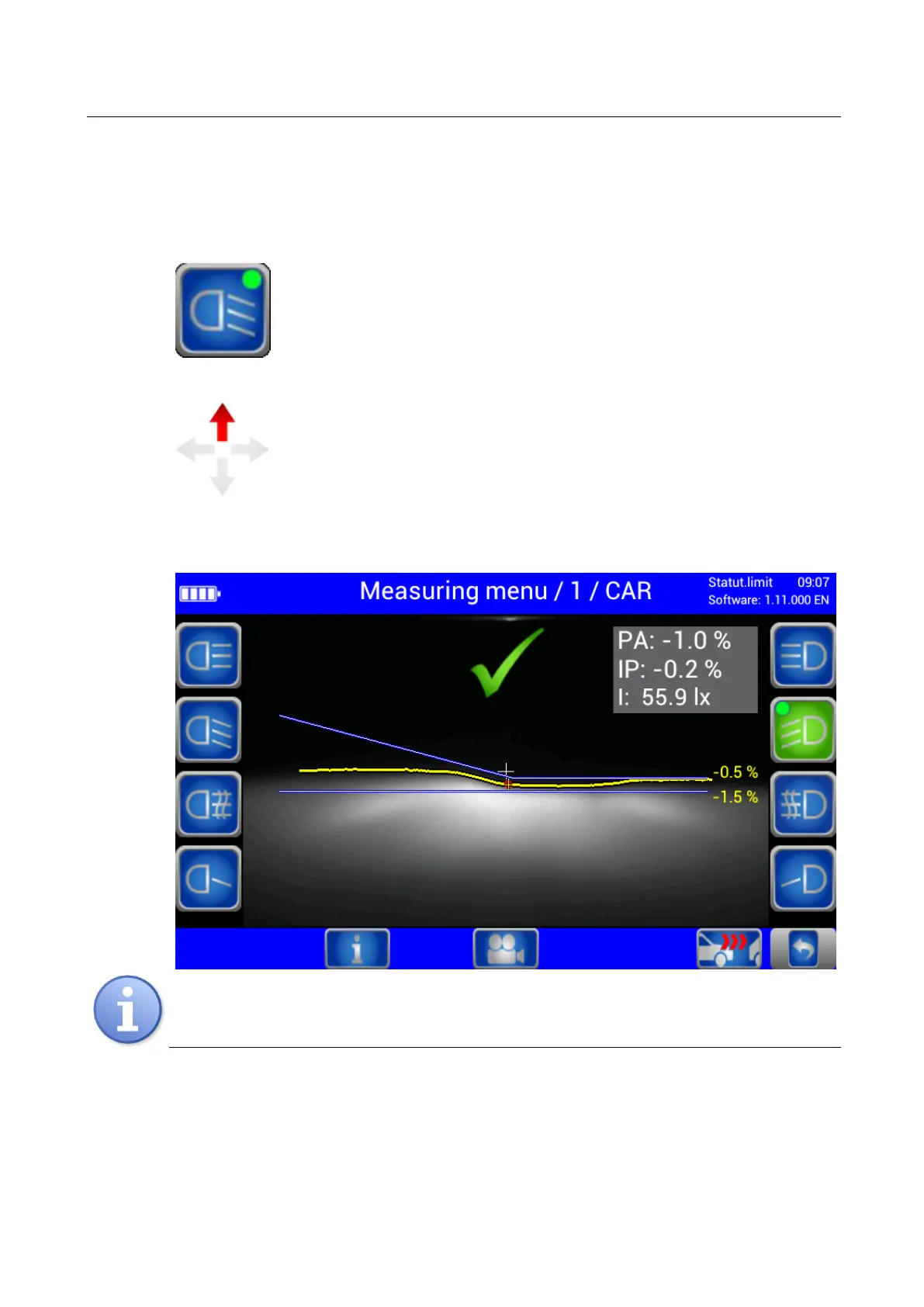

3.4.1 Test Phase Indication via Light Buttons
Green dot = Headlight tested, measurement OK
Red dot = Headlight tested, not OK
Grey dot = Headlight without evaluation
Adjusting direction:
Yellow arrow = Minor deviation within tolerance range
Red arrow = Outside tolerance
3.4.2 Measuring
Rating in centre = Headlight within tolerance range
