3.2.2 LED Adjustment Aid (Option)

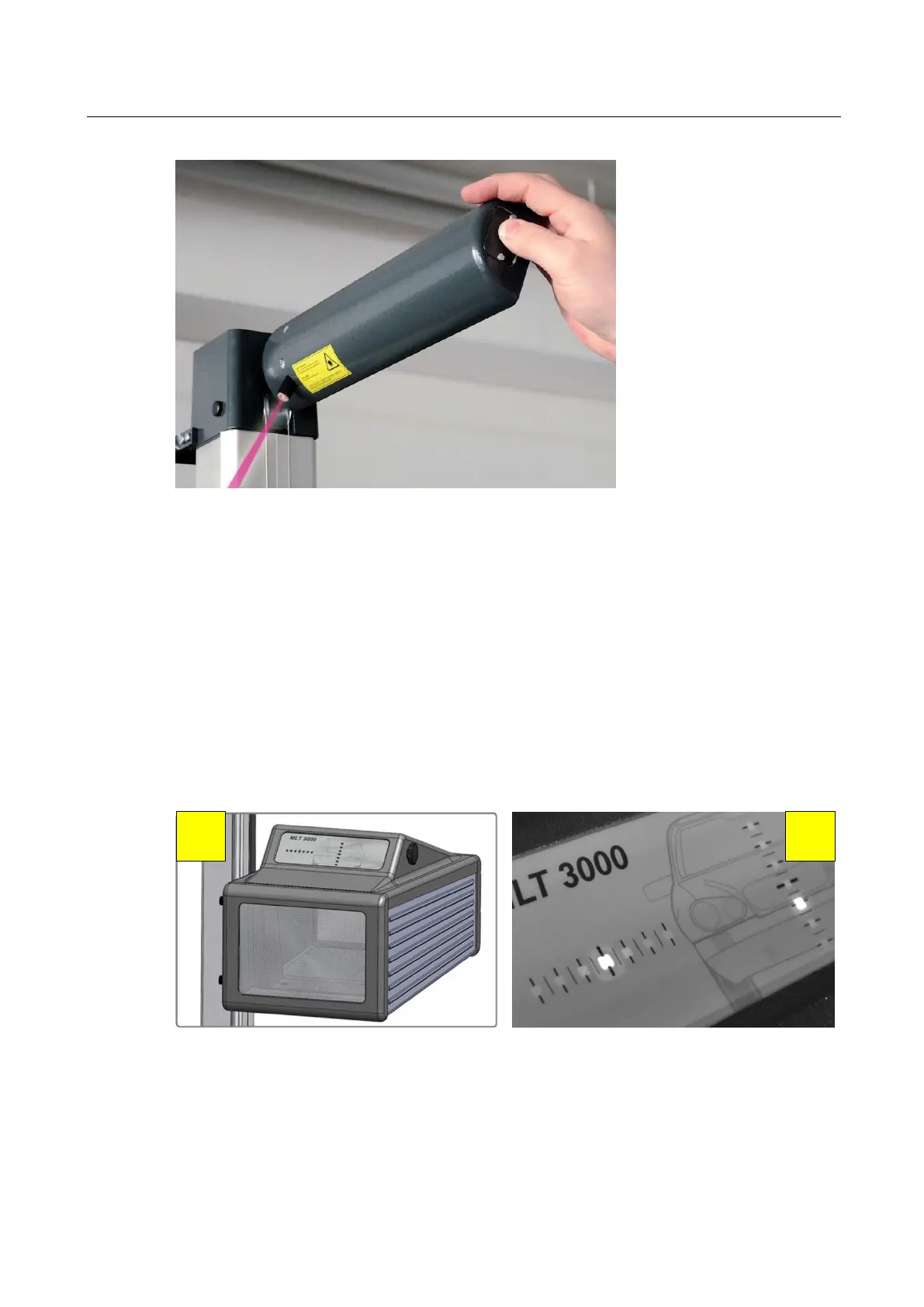

This optional unit is integrated into the window housing (A) above the Fresnel lens.
The colour LEDs (B) pointing toward the vehicle indicate the direction of adjustment.
Green LED =
Optimum setting
(corresponds to green rating in the display centre)
Yellow LED =
Minor deviation within tolerance range
(corresponds to yellow direction arrows on the display)
Red LED =
Outside tolerance
(corresponds to red direction arrows on the display)
A
B
