BA380701-en
4.2 Battery Status
4.2.1 Battery Life
The battery has a rated capacity of 9500mAh and can provide up to 20 hours of
continuous workshop operation at an optimum environmental temperature of 20°C.
4.2.2 Energy Saving Function
After 10 minutes of no activity, the display switches off. By tapping the touchscreen,
the device is immediately ready for operation.
After 120 minutes of no activity, the unit switches off completely and then needs to be
switched back on manually.
These standard settings can be customised in the user variables.
4.2.3 Protection against Deep Discharge
To protect the battery from deep discharge, the unit switches off beyond 10.8V battery
voltage.
4.2.4 Protection against Mechanical Damage

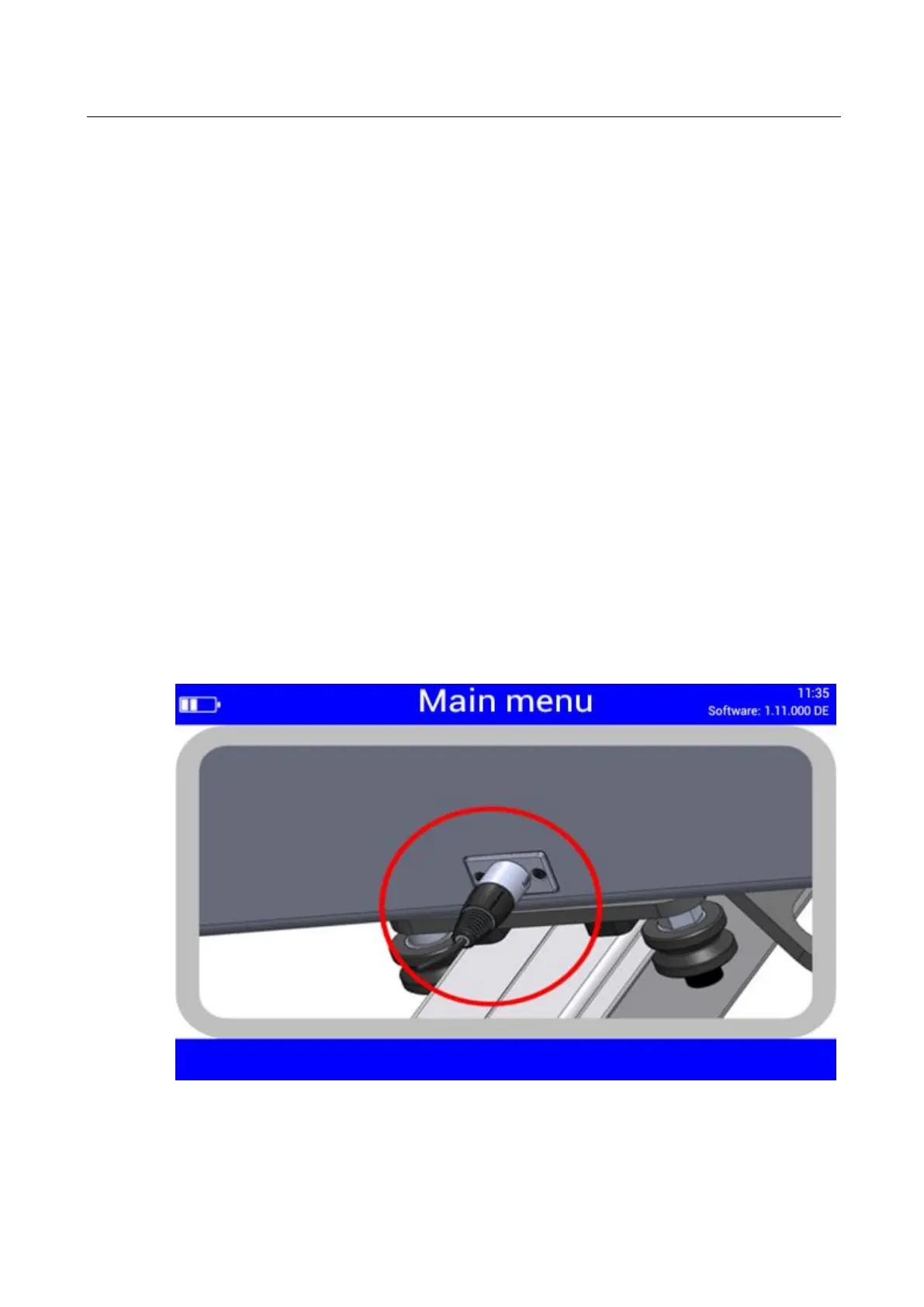

In the event that the device is set into motion while the charger is connected, the
following image is displayed and accompanied by an audible alert:
(Alert must be enabled, see section “Operation > Settings > User Settings”.)
