Mahindra YUVRAJ 215 User Manual

37

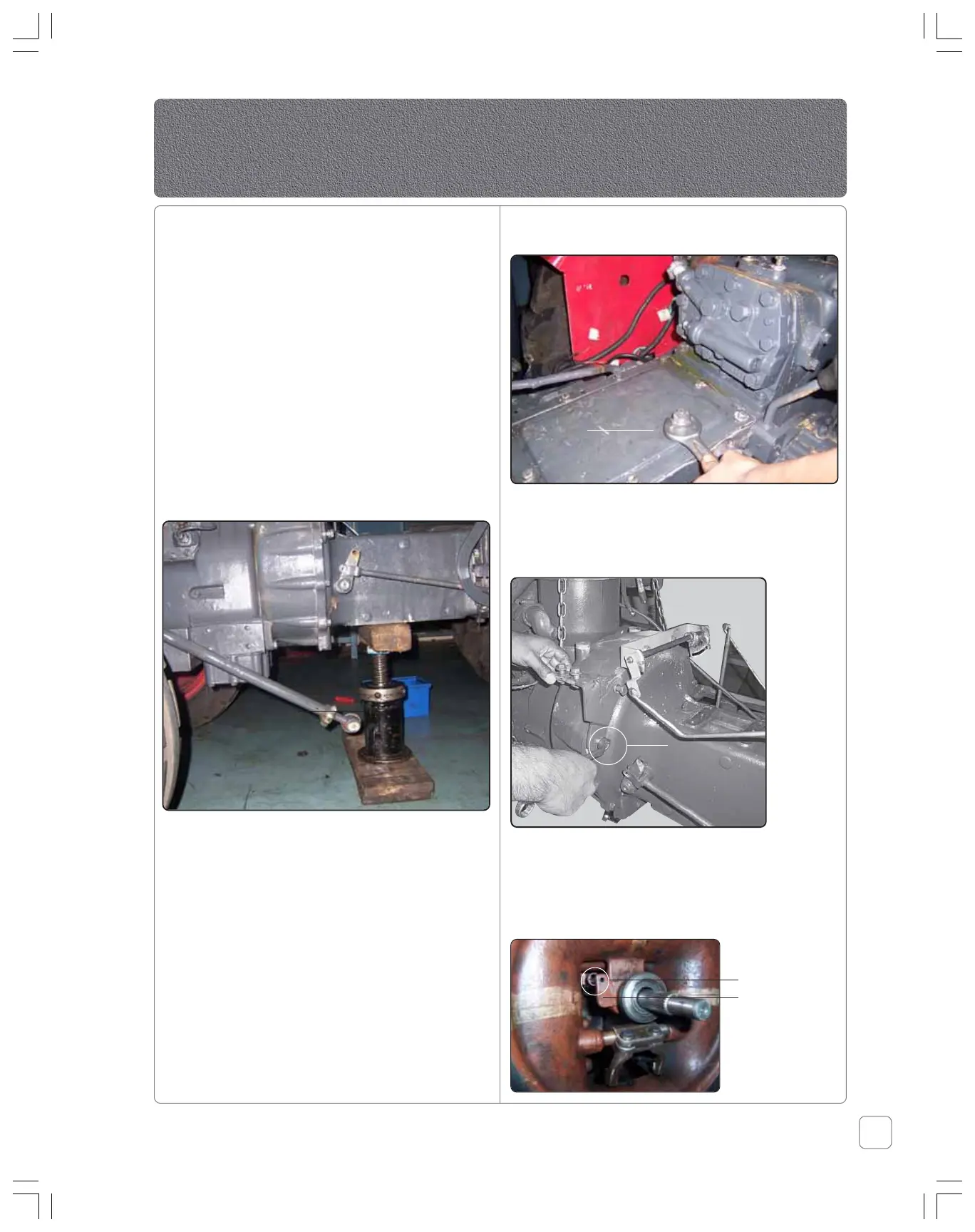

Transmission
General :
To work or dismantle the transmission form engine,
first remove the bellow aggregate or assemblies.
1. Fender assembly
2. Hydraulic assembly
3. Electrical system.
4. Linkage, pipes & fittings
5. Three point Linkages
6. Seat assembly
7. Scuttle assembly
8. Steering assembly
Jack the tractor with proper jack or hoist
Loosen the bolts of the tyre & remove both the
tyres.
Loosen the drain the plug of the transmission
& drain the transmission oil.
Remove the transmission breather / dipstick for
free flow of transmission oil.
Removal of Clutch Housing & Connection
1. Remove the bolts mounting the clutch
housing to engine.
2. Separate the engine form the clutch
housing.
3. Remove the spring of clutch release sleeve
& remove the clutch release sleeve with
bearing.
Jack
Breather /
Dipstick
Mounting
Bolt
Spring
Clutch Release
Sleeve

Mahindra YUVRAJ 215 Specifications

General

Engine Power	15 HP
Transmission	Sliding mesh
Number of Gears	6 Forward + 3 Reverse
Brakes	Oil immersed brakes
PTO Power	12 HP
Hydraulic Lifting Capacity	500 kg
Number of Cylinders	1
Rated Engine Speed	2300 RPM
Wheel Base	1490 mm
Weight	780 kg
Engine Type	Single Cylinder, Water Cooled
Fuel Tank Capacity	19 Litres
Steering	Mechanical
