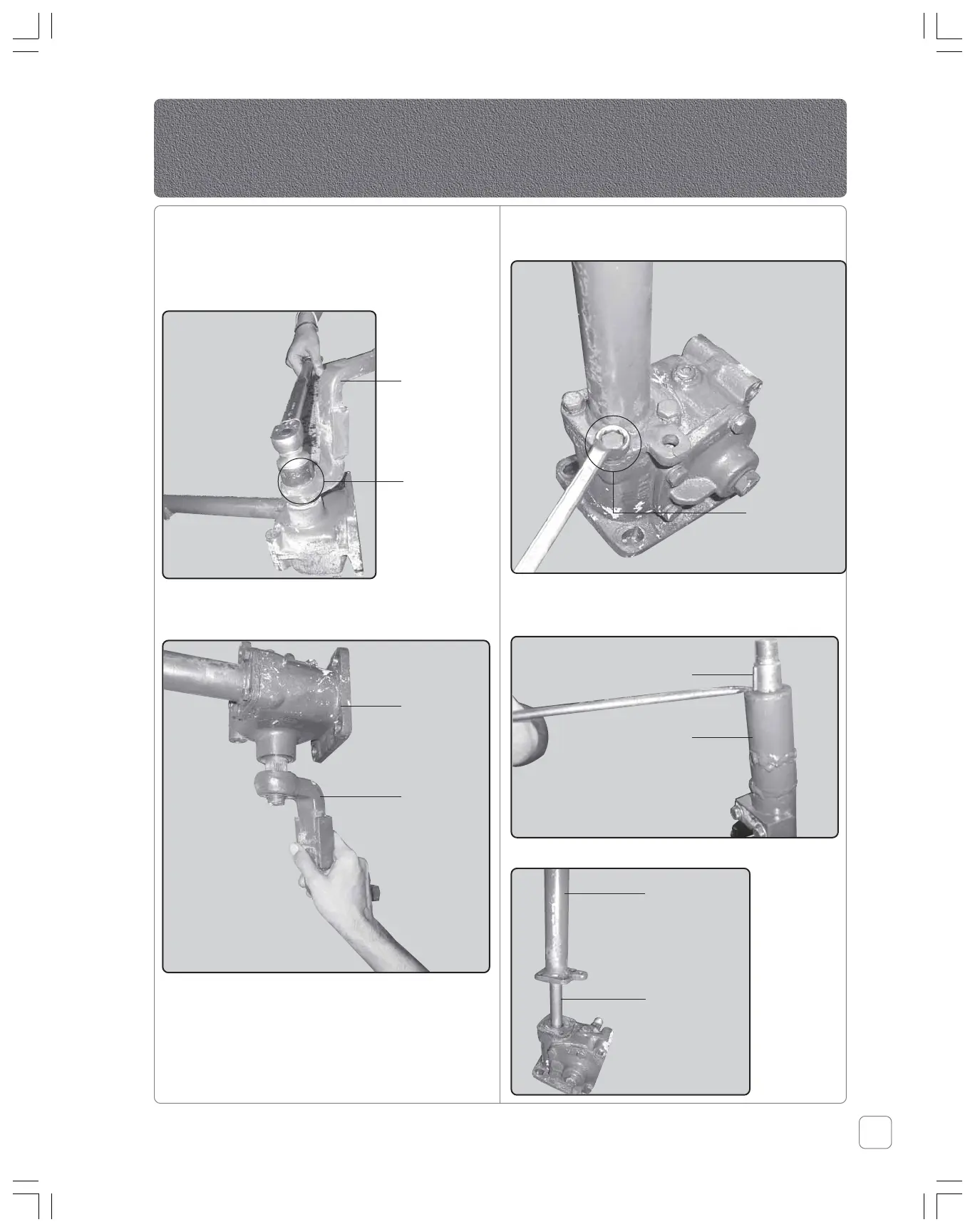

Dismantling procedure of steering gear
box
1 Remove the nut of the drop arm. (Spanner
Size 34)
2 Remove the drop arm by using the puller.
3 Remove the four bolts of the steering
column.
4 Remove the woodruff key on which the
steering wheel is mounted.
5 Remove the steering column tube.
Drop Arm
Nut
Drop Arm
Steering Gear
Drop Arm
Steering
Column Nut
Woodruff
Key
Outer Steering
Column
Tube Steering
Column
Main Steering
Column
Steering Assembly

Mahindra YUVRAJ 215 Specifications

General

Engine Power	15 HP
Transmission	Sliding mesh
Number of Gears	6 Forward + 3 Reverse
Brakes	Oil immersed brakes
PTO Power	12 HP
Hydraulic Lifting Capacity	500 kg
Number of Cylinders	1
Rated Engine Speed	2300 RPM
Wheel Base	1490 mm
Weight	780 kg
Engine Type	Single Cylinder, Water Cooled
Fuel Tank Capacity	19 Litres
Steering	Mechanical
