Mahindra YUVRAJ 215 User Manual

65

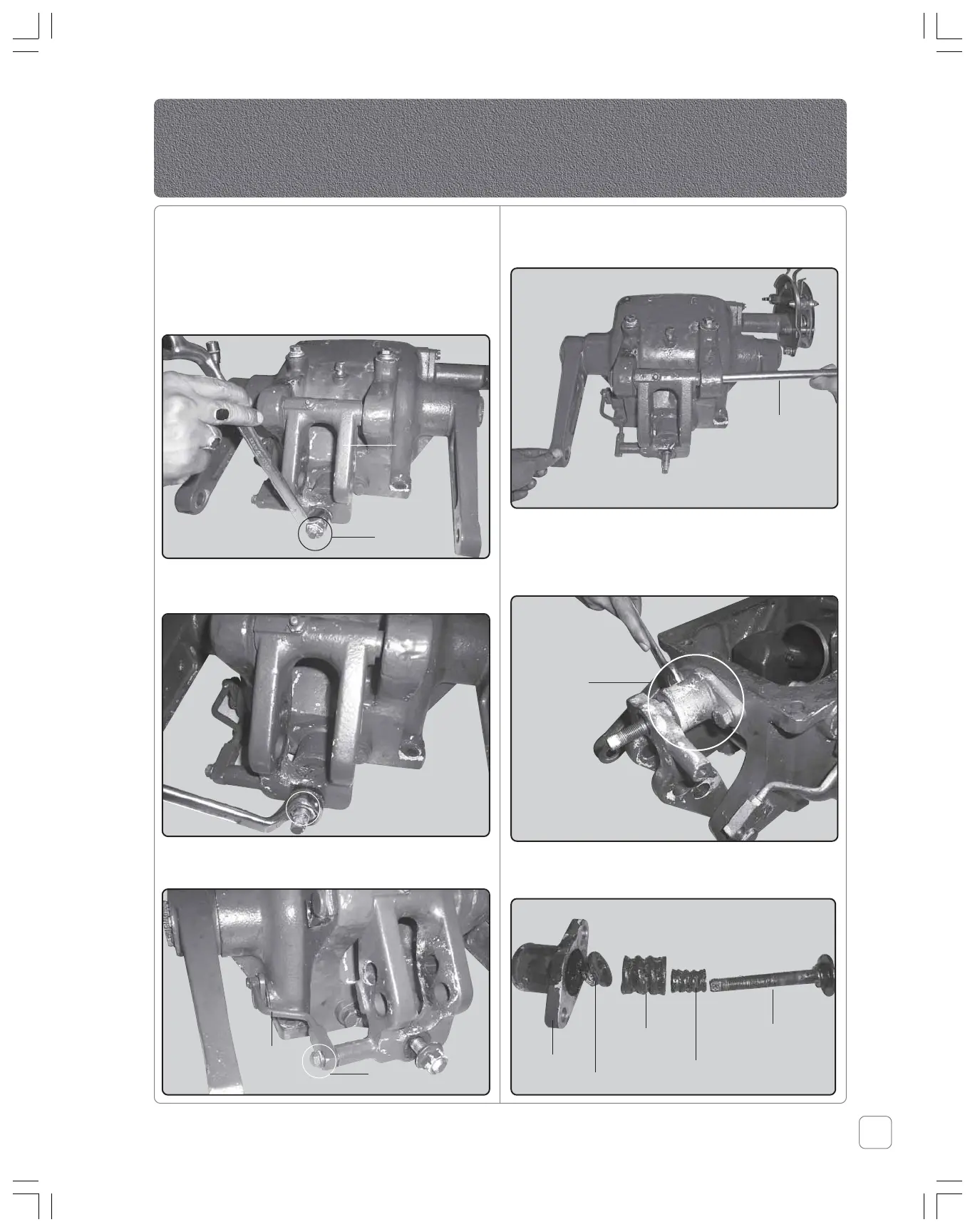

Dismantling procedure of the hydraulics.-
A) Dismantling procedure of the bell crank
Assembly-
1 Remove the M14 lock nut of the crank
toplink assembly.
2 Remove M14 Flange nut on the crank
toplink.
3 Remove the step bolt DC outer block of DC
Connecting link.
4 Remove the M8 bolt of pin crank top link.
5 Remove the pin crank top link.
6 Remove crank top link.
7 Remove ‘2’ bolts (M12 x 1.75) of draft
sensing mounting assembly.
8 Remove sleeve draft sensing
Hy-tec Hydraulics
Crank Toplink
Assy.
Lock Nut
Step Bolt
DC feedback
link outer
assy
Pin Crank
Toplink
Draft
Sensnsing
Mounting
Assembly
Sleeve
Retainer
Outer DC
Sensing Spring
Inner DC
Sensing Spring
Draft Sensing
Spindle

Mahindra YUVRAJ 215 Specifications

General

Engine Power	15 HP
Transmission	Sliding mesh
Number of Gears	6 Forward + 3 Reverse
Brakes	Oil immersed brakes
PTO Power	12 HP
Hydraulic Lifting Capacity	500 kg
Number of Cylinders	1
Rated Engine Speed	2300 RPM
Wheel Base	1490 mm
Weight	780 kg
Engine Type	Single Cylinder, Water Cooled
Fuel Tank Capacity	19 Litres
Steering	Mechanical
