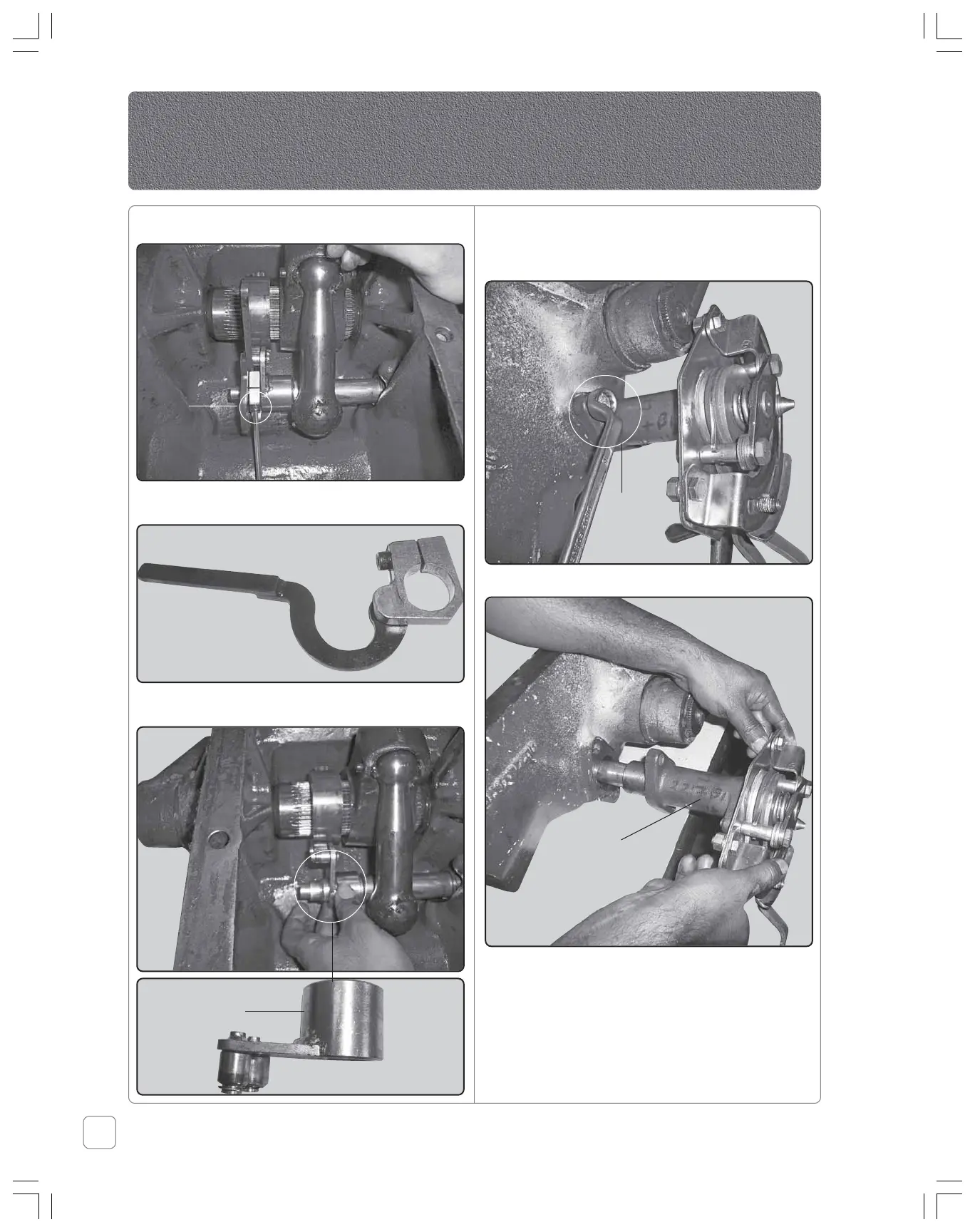

8 Remove Allen Screw of PC rocker.
9 Remove the PC link assembly.
10 Remove the PC roller assembly.
D Removal of Quadrant assembly.
1 Remove two bolts of quadrant assembly
(Bolt Size M10 x 1.5)
2 Remove quadrant assembly.
Allen
Screw
PC Roller
Assembly
Quadrant
Bolts
Quadrant
Assembly
Hy-tec Hydraulic
PC Rocker
Assembly
To Next Page
