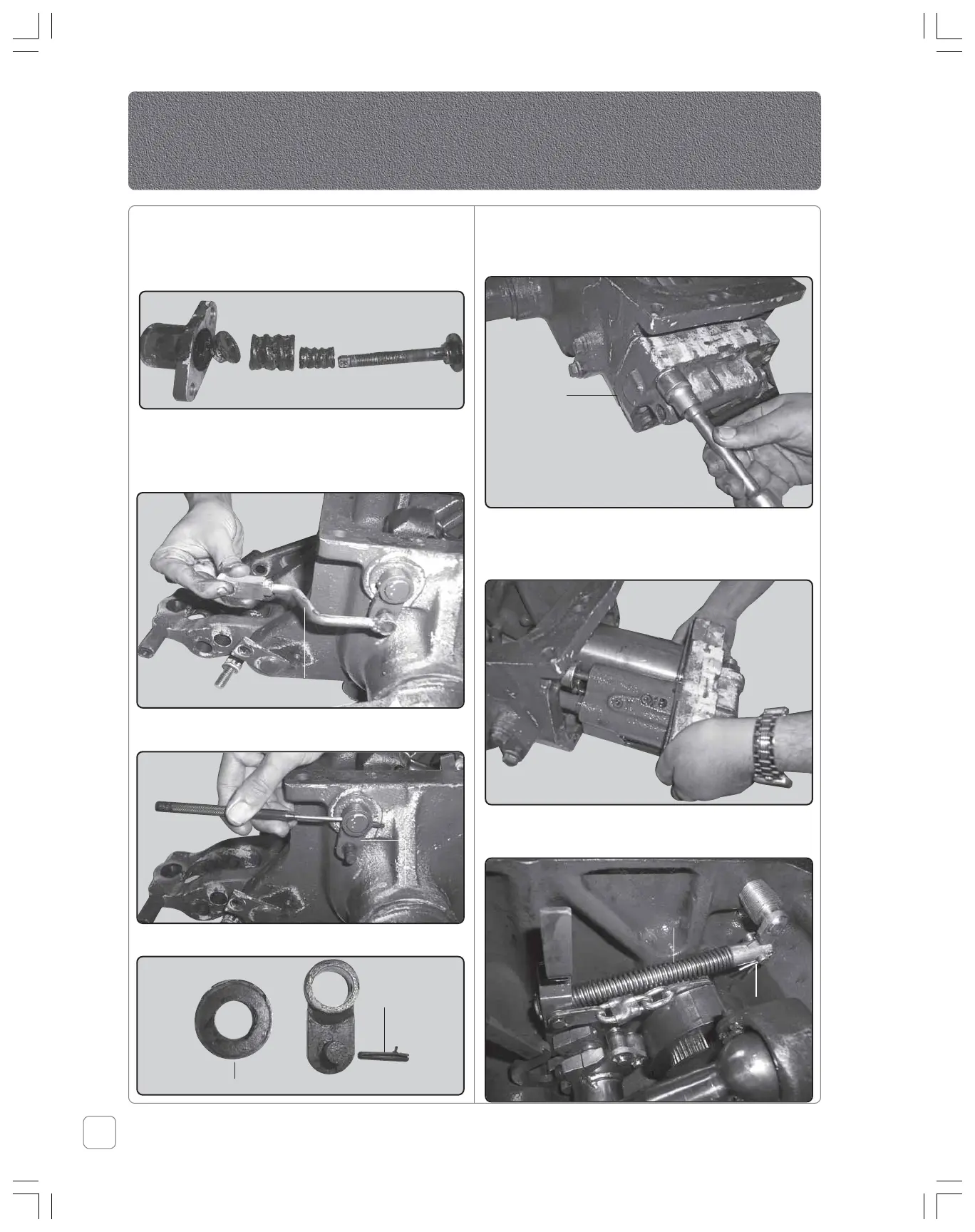

9 Remove outer DC sensing spring.
10 Remove inner DC sensing spring.
11 Remove Spindle Draft Sensing..
12 Remove sensing bottom sleeve.
13 Remove external circlip of the DC feedback
link & remove draft sensing link.
14 Remove the roll pin of DC outer rocker.
8 Remove the spacer of DC Outer rocker.
B) Removal of Control Valve assembly.
1 Remove the 8 bolts (1/2” UNC) of the CV
Assembly with spring washer.
2 Remove the control valve. Remove two
small attaching cap screw and draw of the
cylinder head realising spring.
C Removal of Linkages -
1 Remove cotter pin of DC linkage.
DC feedback
link
DC Outer
Rocker
Spacer DC Outer Rocker
Control
Valve
Roll Pin
DC Linkage
Hy-tec Hydraulic
Cotter Pin

Mahindra YUVRAJ 215 Specifications

General

Engine Power	15 HP
Transmission	Sliding mesh
Number of Gears	6 Forward + 3 Reverse
Brakes	Oil immersed brakes
PTO Power	12 HP
Hydraulic Lifting Capacity	500 kg
Number of Cylinders	1
Rated Engine Speed	2300 RPM
Wheel Base	1490 mm
Weight	780 kg
Engine Type	Single Cylinder, Water Cooled
Fuel Tank Capacity	19 Litres
Steering	Mechanical
