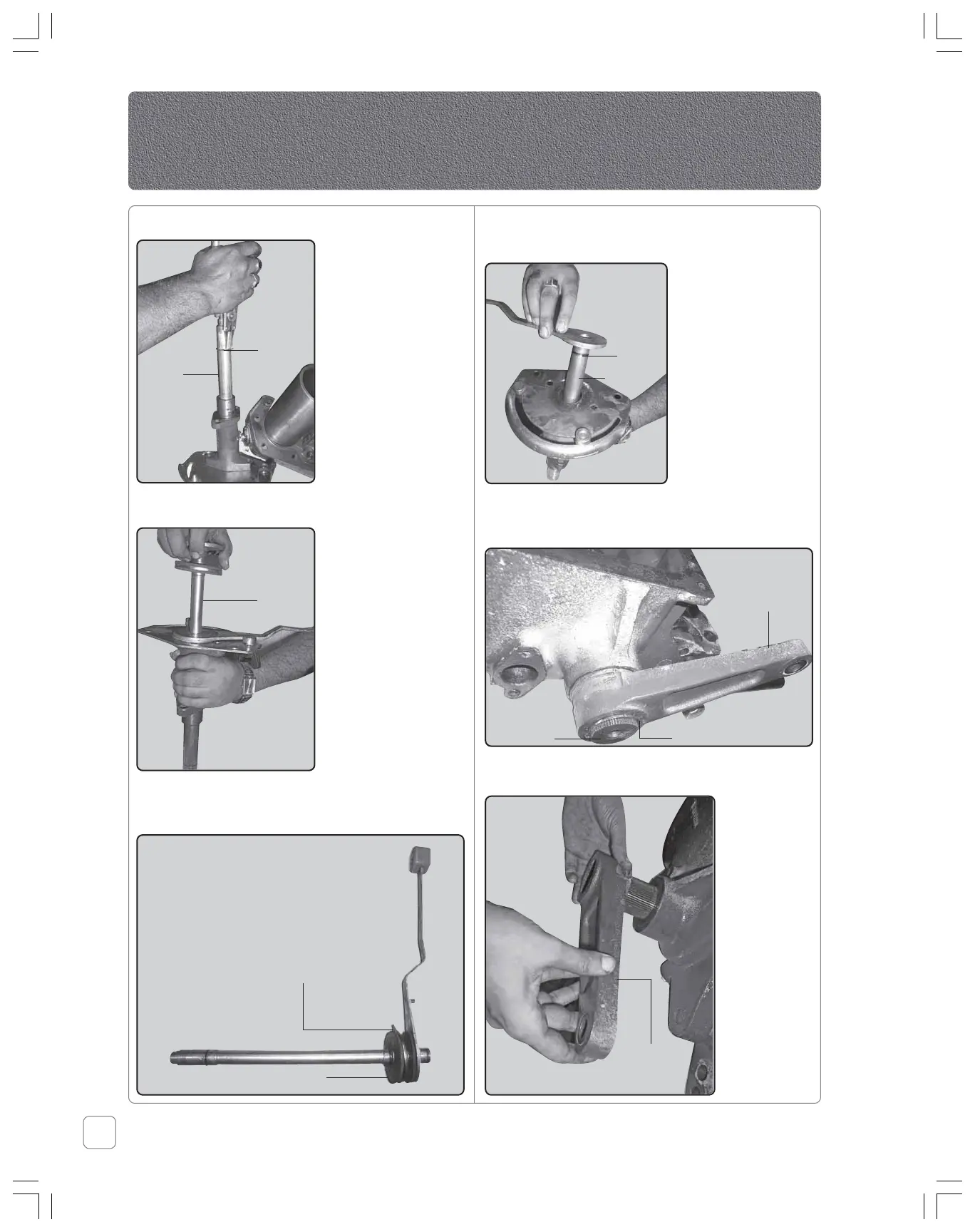

8 Remove the circlip from PC tube.
9 Remove DC lever Assembly.
10 Remove friction disc.
11 Remove plate friction retainer.
12 Remove friction disc.
13 Remove PC lever assembly.
5 Removal procedure of power train
1 Remove circlip of rockshaft (RH)
2 Remove lift arm (RH)
Circlip
DC Lever
Assembly
Friction
Retainer
PC Lever
Lift Arm
Circlip0
Rocker
Shaft
Lift Arm
Hy-tec Hydraulic
PC
Tube
Remove
Circlip
Friction Disc
To Next Page
