Operating Instructions
33
A

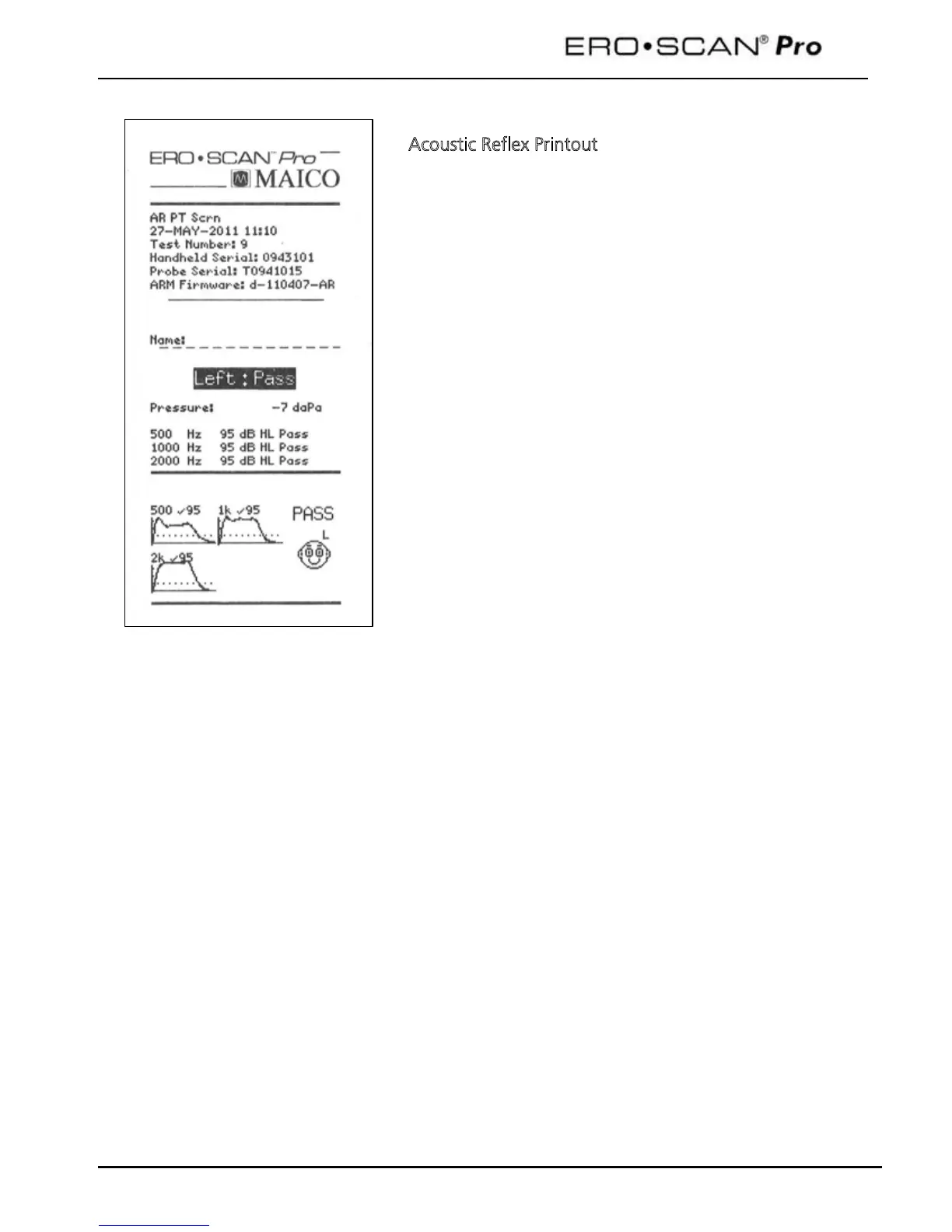

coustic Reflex Printout
To the left is a sample acoustic reflex printout from the thermal
paper printer.
The header shows the protocol name in the first line followed
by the date/time of the test, test number, instrument serial
number, probe serial number, and firmware version.
Patient number is indicated or a blank line is provided to write
in the name. (See section 8.7 for information on using
numbered patients).
The ear (Right or Left) and the test result (Pass or Refer) will be
indicated on the printout.
Data table:
Pressure = pressure compensation to match point of peak
compliance from preceding tympanometry measurement
Graph:
See section 5.5 for explanation
