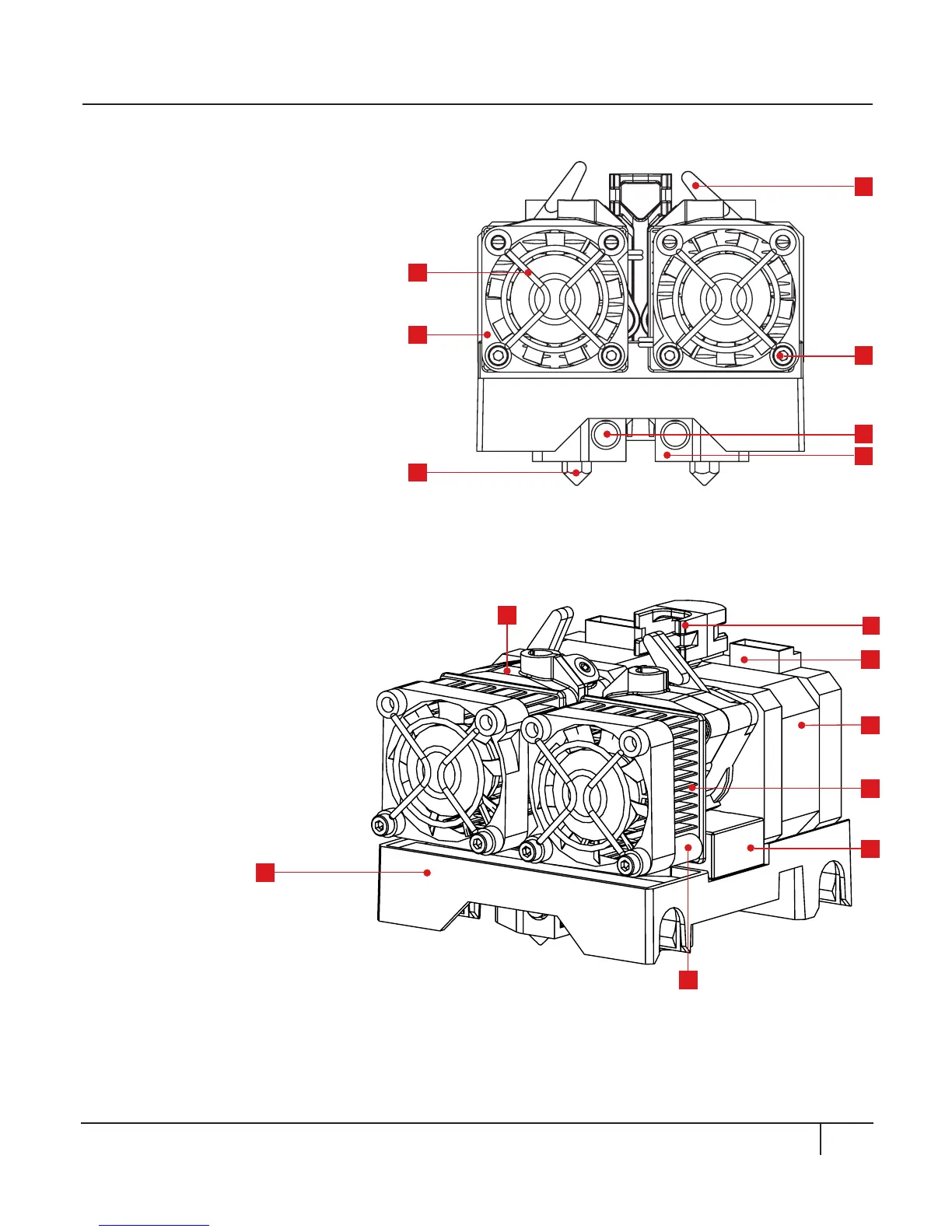

MAKERBOT REPLICATOR 2X DIAGRAMS CONTINUED
[1] FAN GUARDS
[2] EXTRUDER FANS
[3] EXTRUDER NOZZLES
[4] EXTRUDER LEVER ARMS
[5] FAN BOLTS
[6] CARTRIDGE HEATERS
[7] THERMAL CORES
[8] DRIVE BLOCKS
[9] EXTRUDER CABLE MOUNT
[10] MOTOR CABLE CONNECTORS
[11] EXTRUDER MOTORS
[12] HEAT SINKS
[13] BAR MOUNT
[14] SPACERS
[15] EXTRUDER CARRIAGE
1
2
5
3
6
7
4
8
9
10
15
14
11
12
13
Front view of extruders
Angled view of extruders
