MakerBot Replicator Z18
MakerBot

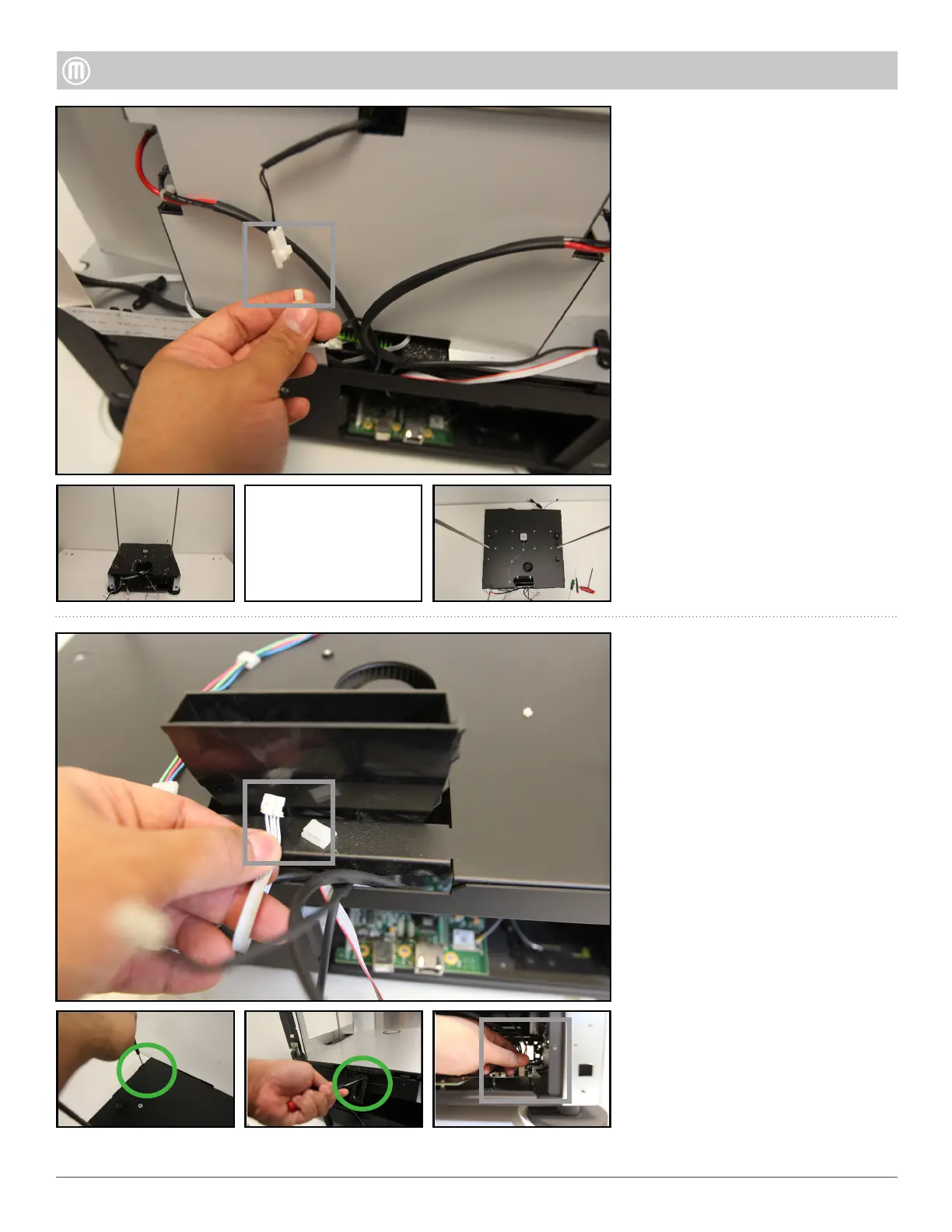

Remove four (4) button heads of
the Drawer Bay Assembly Top
Cover by using the 2.5mm hex
Unplug the Z-Motor from the
Motor Wire Harness. Unclip the
Z-Motor Wire Harness from the
plastic wire clip
Remove two (4) button head
hex screws from the two (2) UI
Adapter Mount located at the
front of the Drawer Bay Assembly
by using 2.5mm hex screwdriver.
Unplug the Heating Coil
Thermistor attached to the
Heating Coil Assembly.
Lift up the Inner and Bottom
Panels over the threaded rods.
Step 9 - Remove Z-Stage
Continued
Step 9 - Removing the Drawer
Bay Cover
Unplug the Heater Fan from the
Gowanus PCB located in the
rear Electronics Bay, lift o the
Top Cover of the Drawer Bay
Assembly.
•
•
•
•
•
