Detach the Interlock Door Cable
from the Red Hook PCB located
on the front Left Upright.
Detach wires from clips inside the
front Uprights
Remove the sixteen (16)
flathead bolts using a 2.0mm
hex screwdriver and lift Upright
up to unhook from Drawer Bay
6
MakerBot Replicator
MakerBot
6
MakerBot Replicator Z18
MakerBot
Step 9 - Remove the Z-Stage
and Inner Housing Assembly
Turn the Z-Stage Belt (accessible
from the back and front of Z18)
so that the Z-Span is moving
upwards and remove build
Platform Assembly
Remove the four (4) smooth rods
on either side by pulling them out
of their Bearing Housing Holder
Detach wires from plastic clips

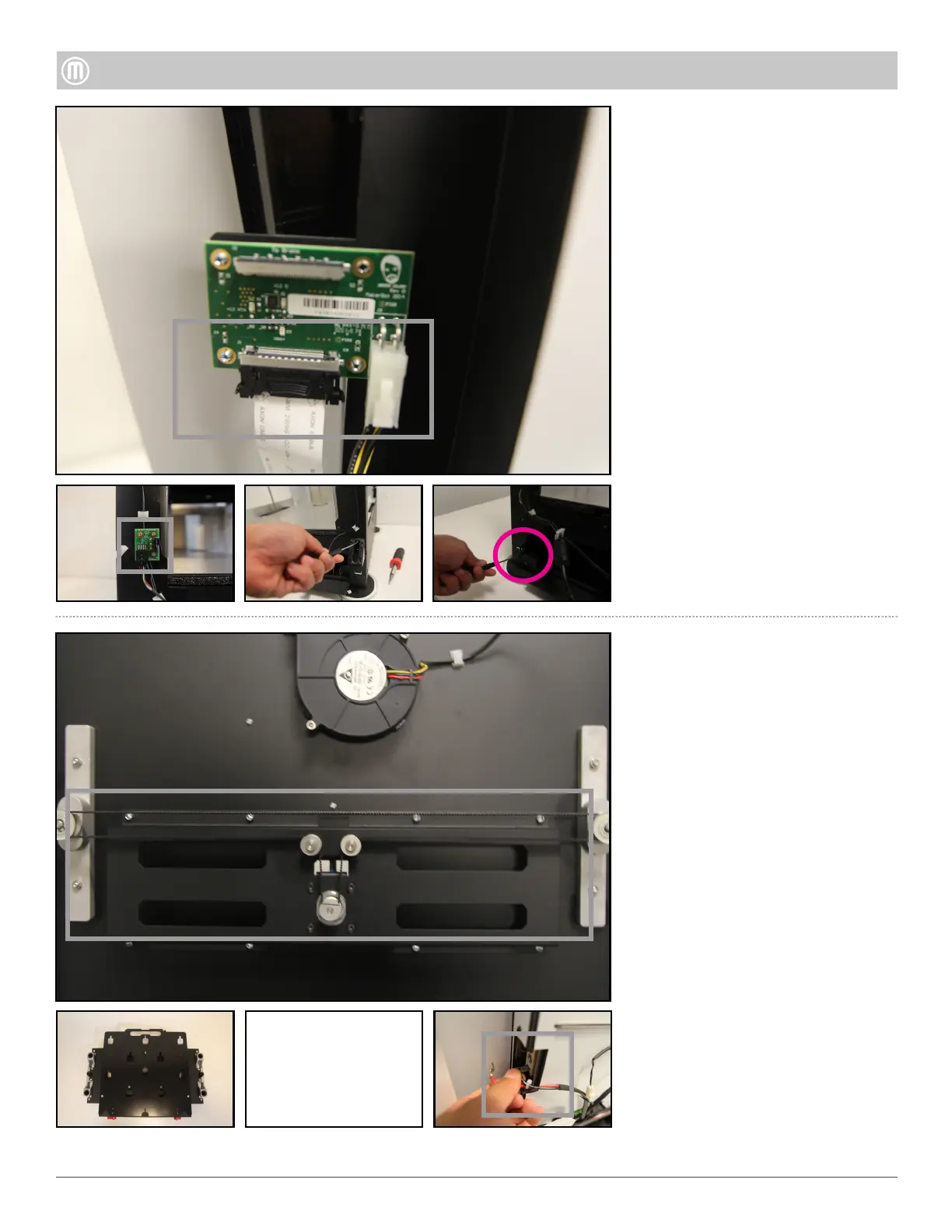

Detach FFC and power cable from
the Rikers PCB located on the rear
Right Upright
Step 8 - Remove the four (4)
Uprights
Unplug the Heating Coil Cables
(there are two assemblies)
attached to the Heating Coil
Assembly located at the rear of
the Z18
•
•
•
•
•
•
•
•
